Chevrolet Malibu Classic 98-04 wiring diagrams
Chevrolet Malibu Classic 98-04 wiring diagrams
Parent Category:
Wiring Diagrams
Category:
General Motors
wiring
schematics
diagrams
chevy
gm
general motors
chevrolet
malibu

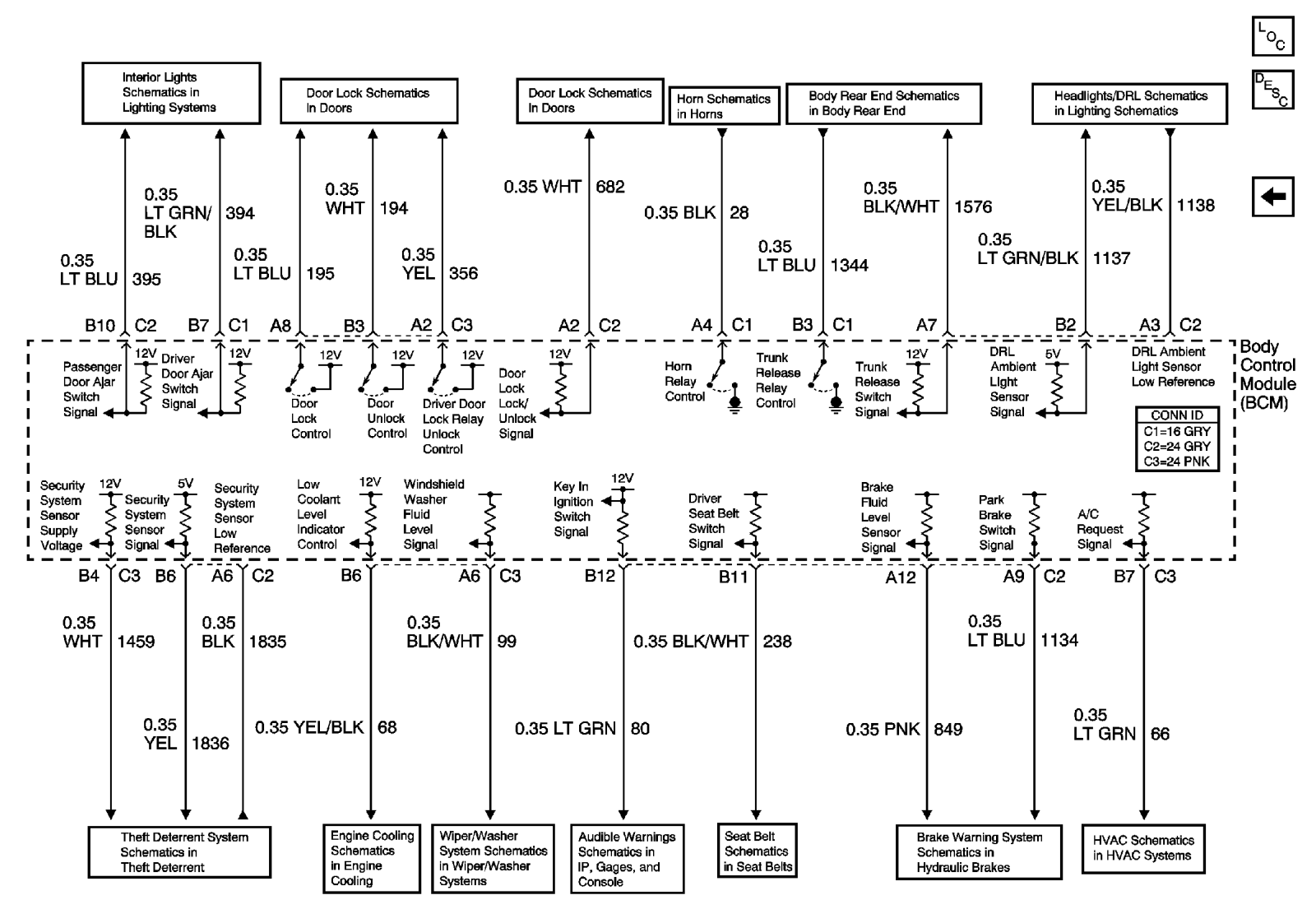

Bcm shematic 2

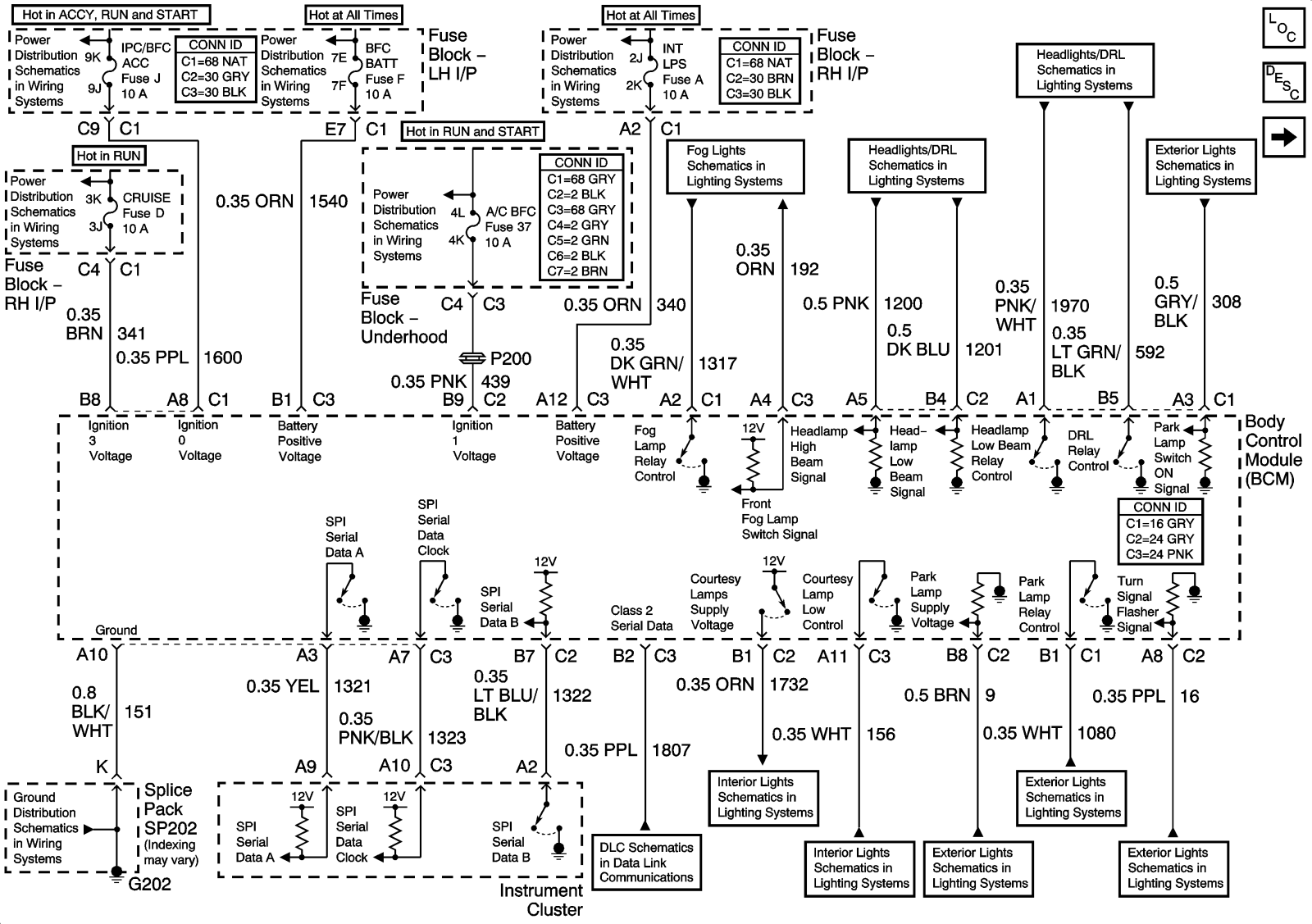

Bcm shematic

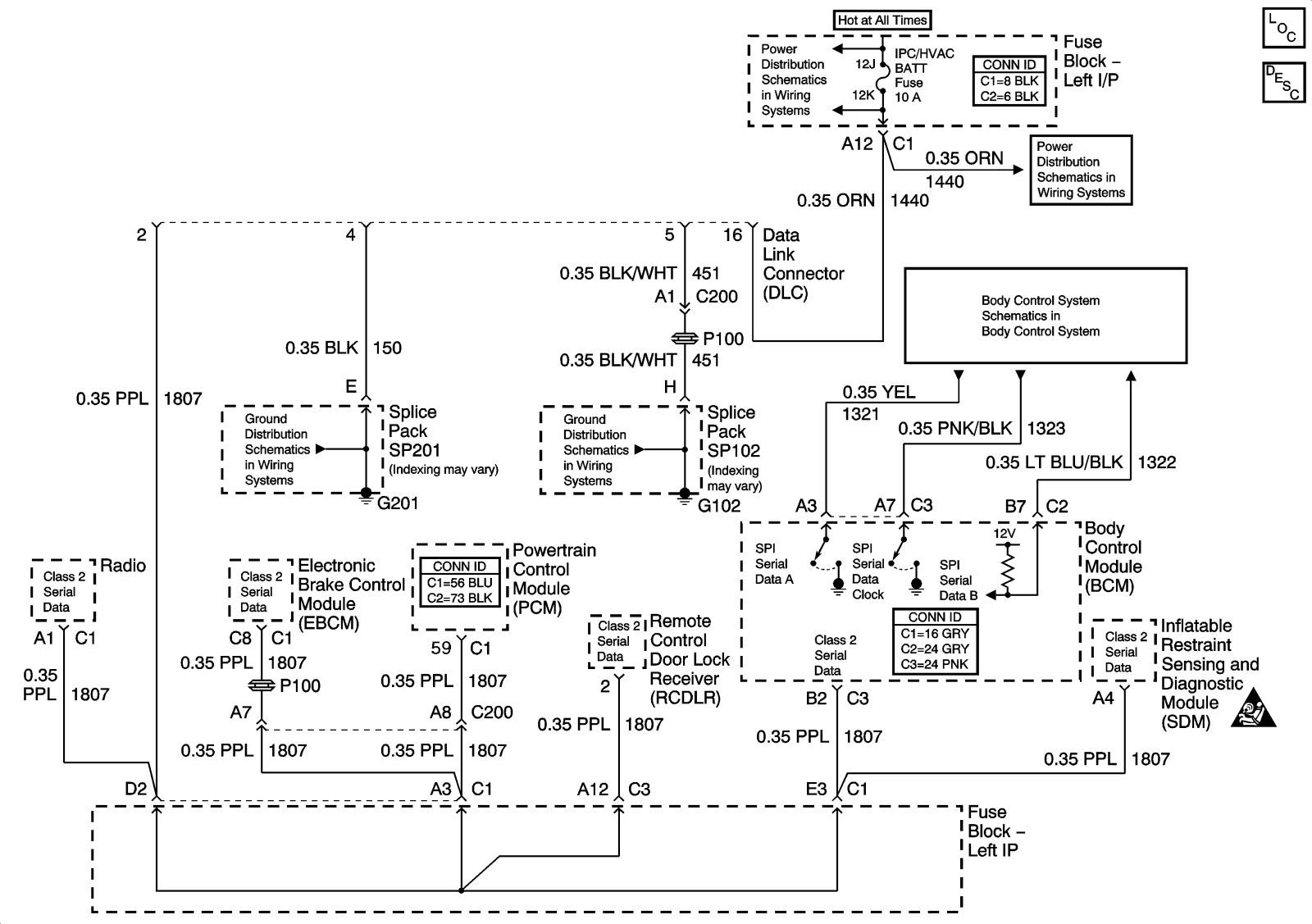

Dlc shematic

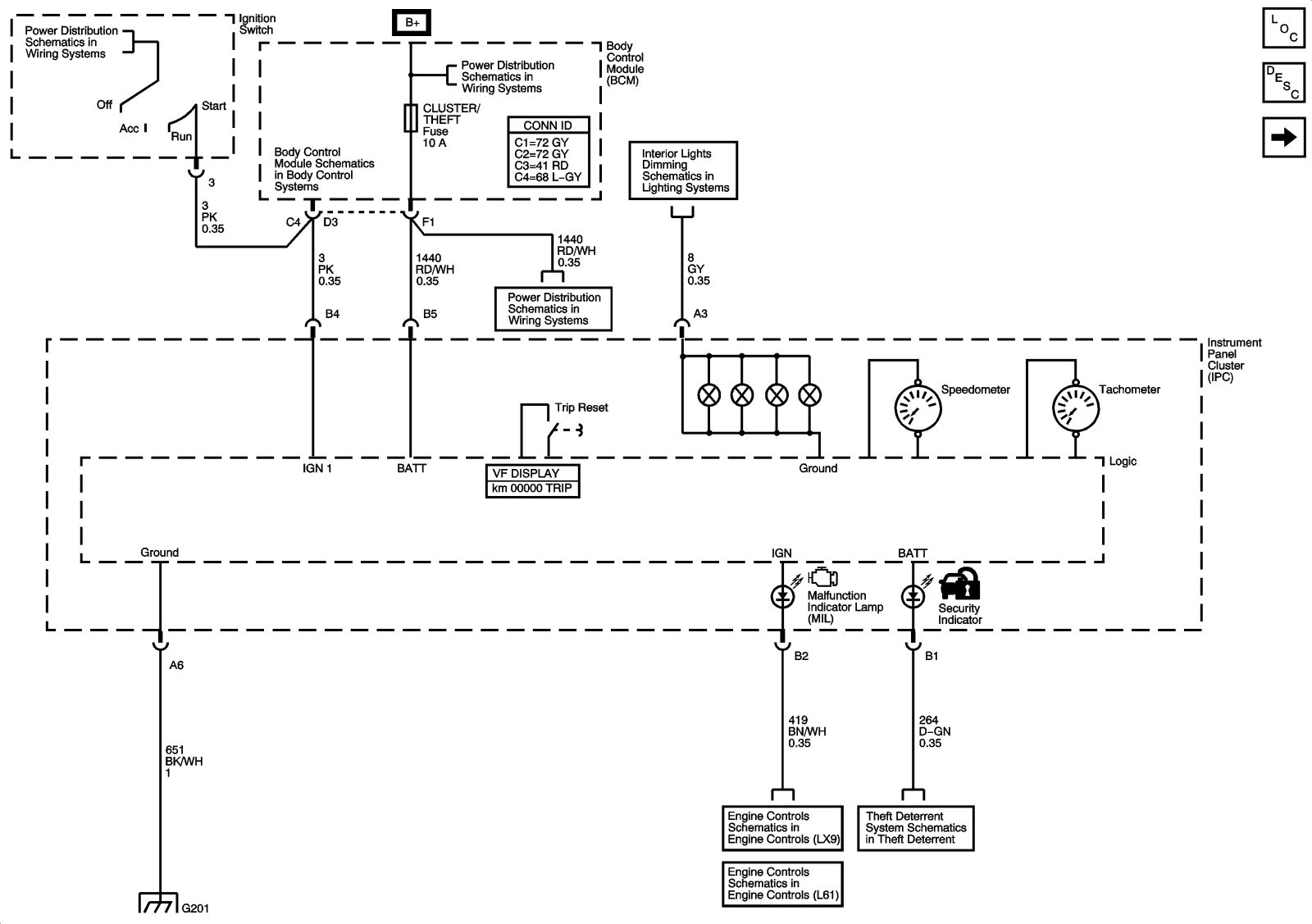

Instrument cluster shematic (2004)
Instrument cluster shematic 2 (2004)

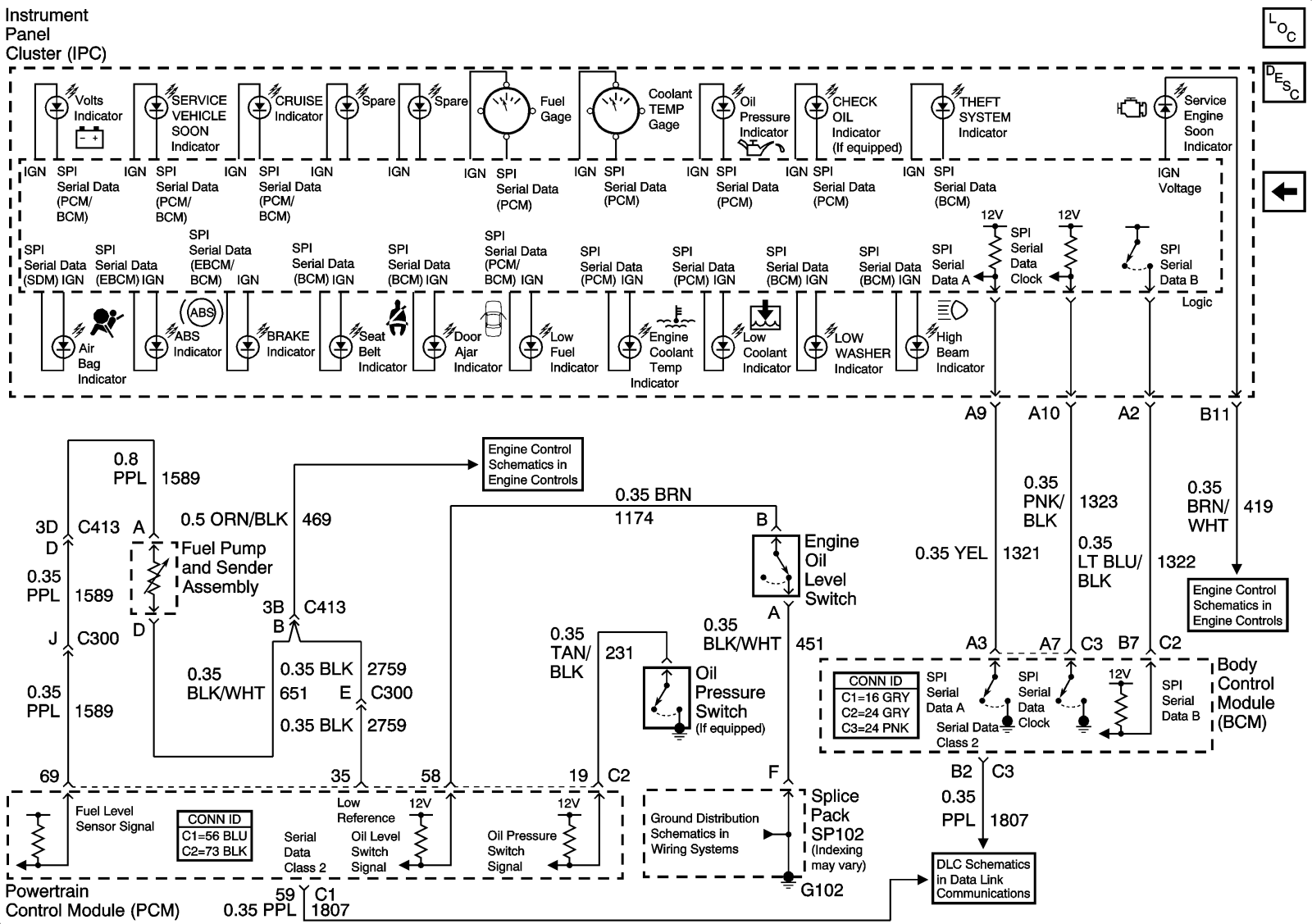

Instrument cluster shematic 2

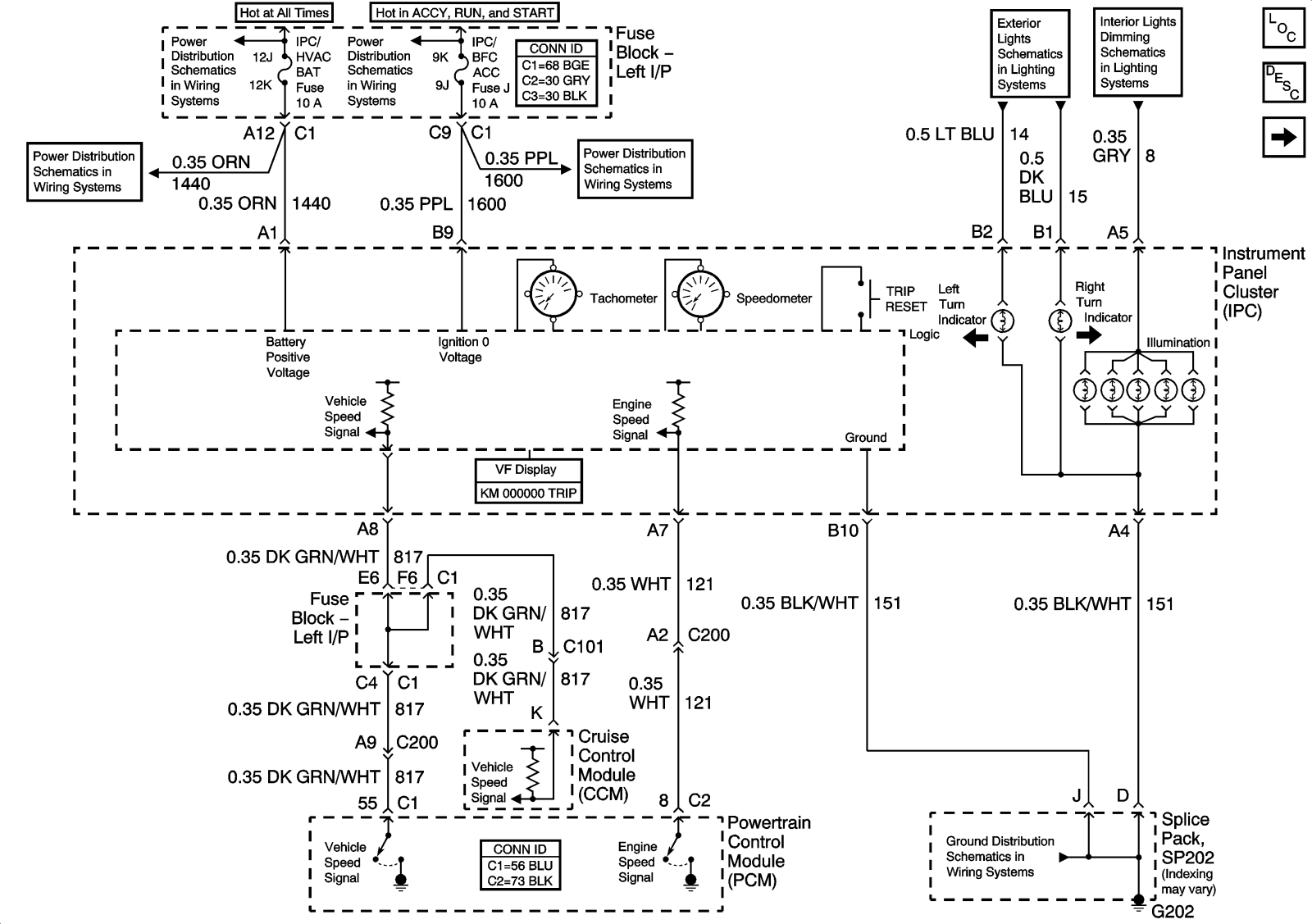

Instrument cluster shematic
