Ford Expedition 2008 wiring diagrams
Ford Expedition 2008 wiring diagrams
Parent Category:
Wiring Diagrams
Category:
Ford, Lincoln, Mercury
wiring
schematics
ford
diagrams
expedition
PATS-1
Connector c175b - PCM 5.4L-1
Connector c175b - PCM 5.4L-2
Connector c175b - PCM 5.4L-3
Connector c175e - PCM 5.4L-1
Connector c175e - PCM 5.4L-2
Connector c175e - PCM 5.4L-3

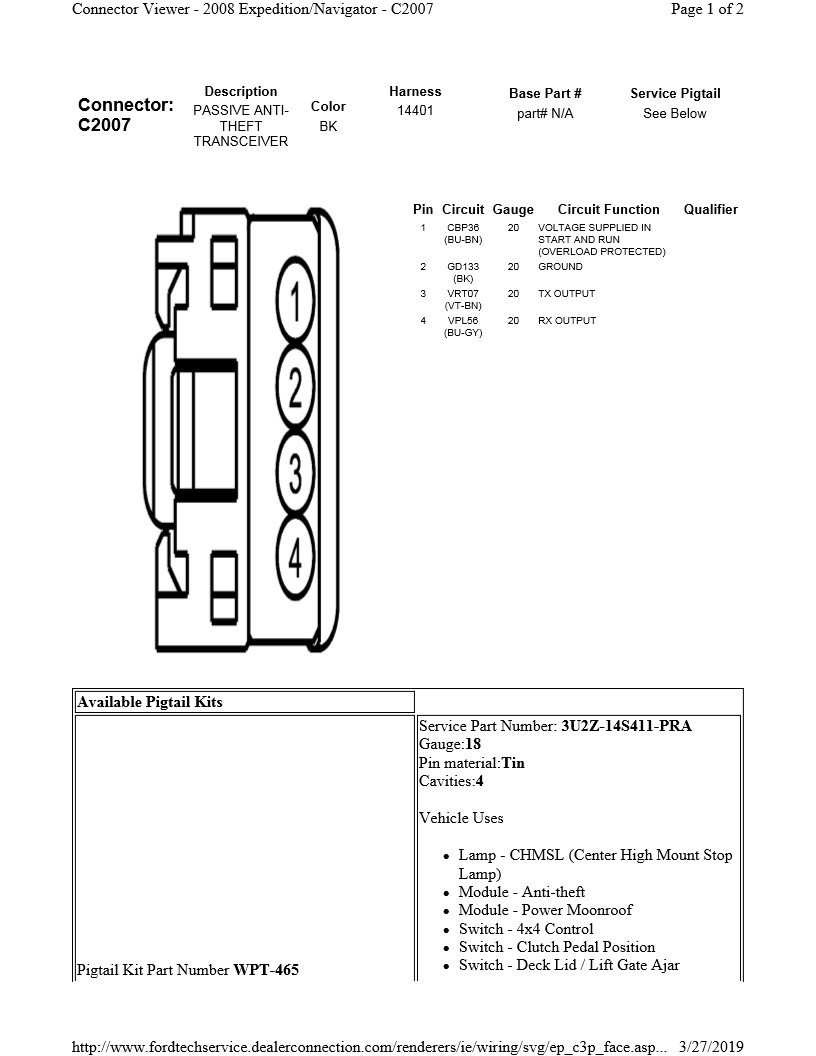

Connector c2007 - PATS-1
Connector c2007 - PATS-2
Connector c220 - Instrument Cluster-1
Connector c220 - Instrument Cluster-2
Connector c310a - RCM-1
Connector c310b - RCM-1
Connector c310b - RCM-2
Engine controls 54L (1)-1
Engine controls 54L (2)-1
Engine controls 54L (3)-1
Engine controls 54L (4)-1
Engine controls 54L (5)-1
Engine controls 54L (6)-1
Engine controls 54L (7)-1
Engine controls 54L (8)-1
Engine controls 54L (9)-1

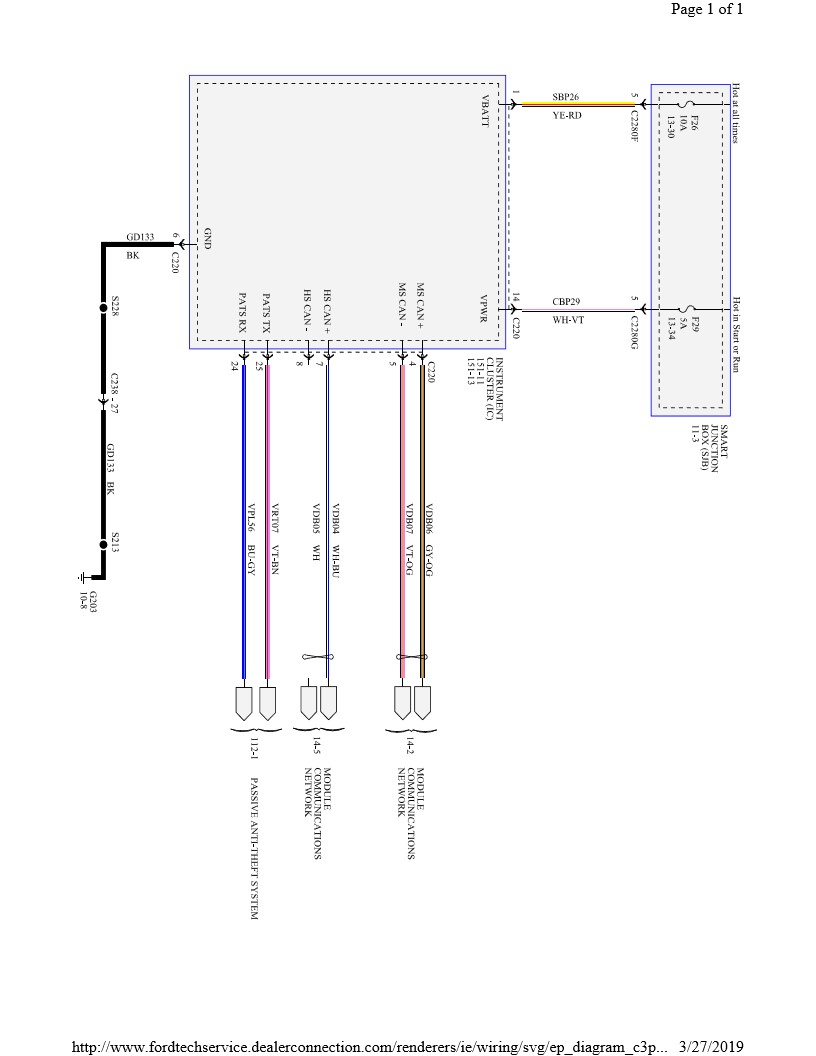

Instrument cluster (1)-1
Instrument cluster (2)-1

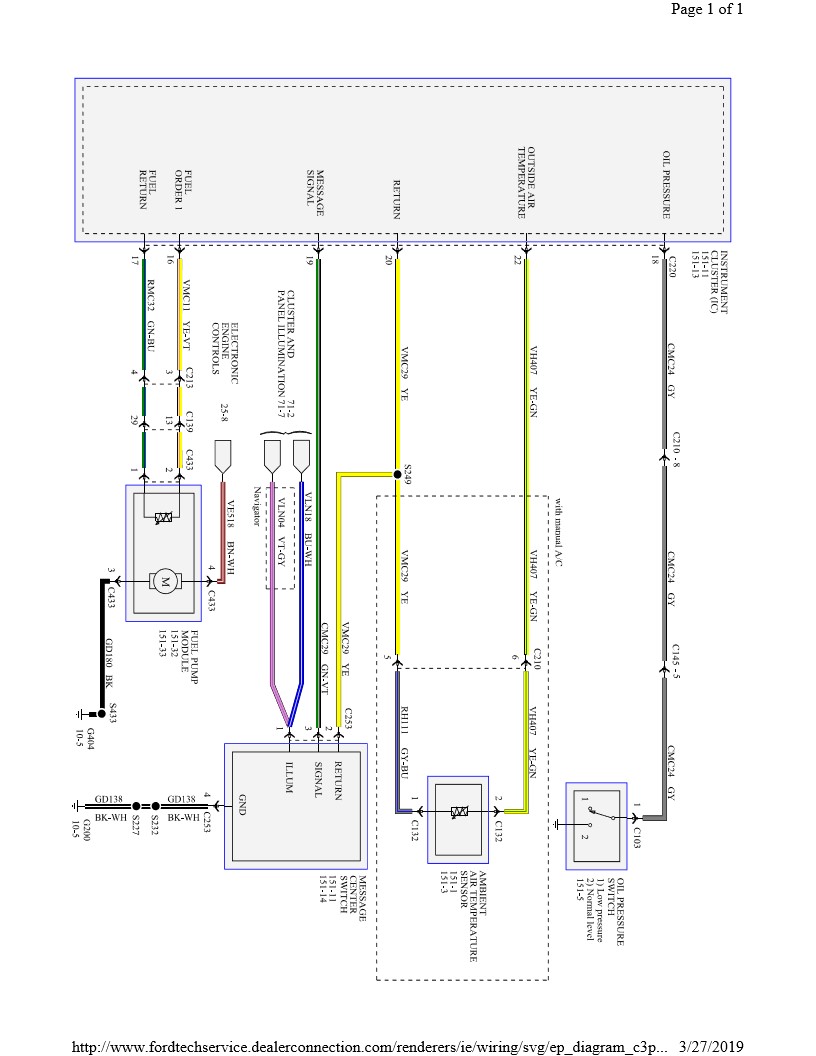

Instrument cluster (3)-1
Instrument cluster (4)-1
Starting system (1)-1
Starting system (2)-1
”
