- Parent Category: Wiring Diagrams
- Category: Chrysler, Dodge, Jeep
![]()

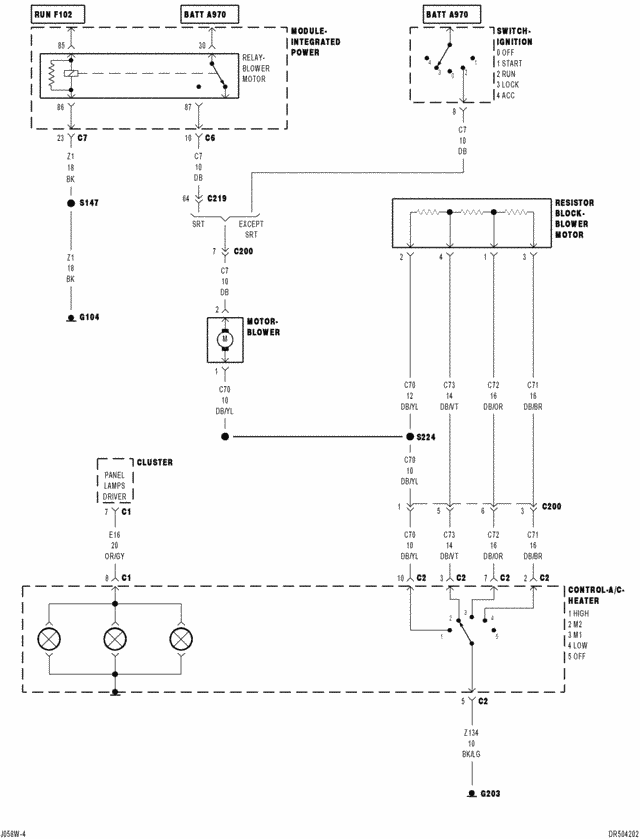

Ac 1![]()
Ac 2![]()
Ac 5![]()
Ac 6 (gas)![]()
Ac 7 (diesel)![]()
Ac 8 (ngc)![]()
All wheel antilock brakes 1![]()
All wheel antilock brakes 2![]()

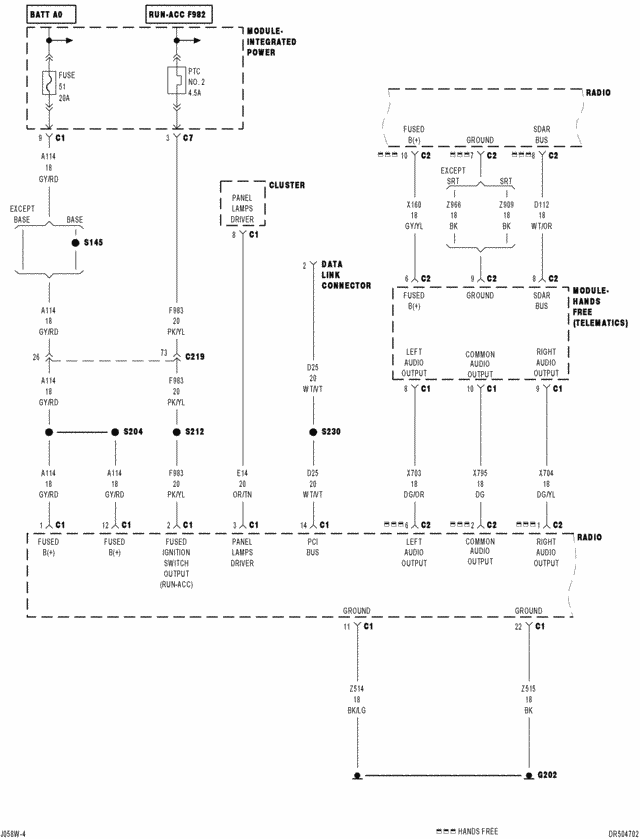

Audio 1![]()
Audio 3 (premium except hands free)![]()
Audio 4 (premium)![]()
Audio 7 (hands free)![]()
Audio 9 (subs)![]()
Bus coms 1 (gas)![]()
Bus coms 2 (gas)![]()
Bus coms 3 (diesel)![]()
Bus coms 4![]()
Bus coms 5![]()
Charging 1 (gas)![]()
Charging 2 (diesel)![]()
Convenience 2![]()
Front lighting 1![]()
Front lighting 2![]()
Front lighting 3![]()

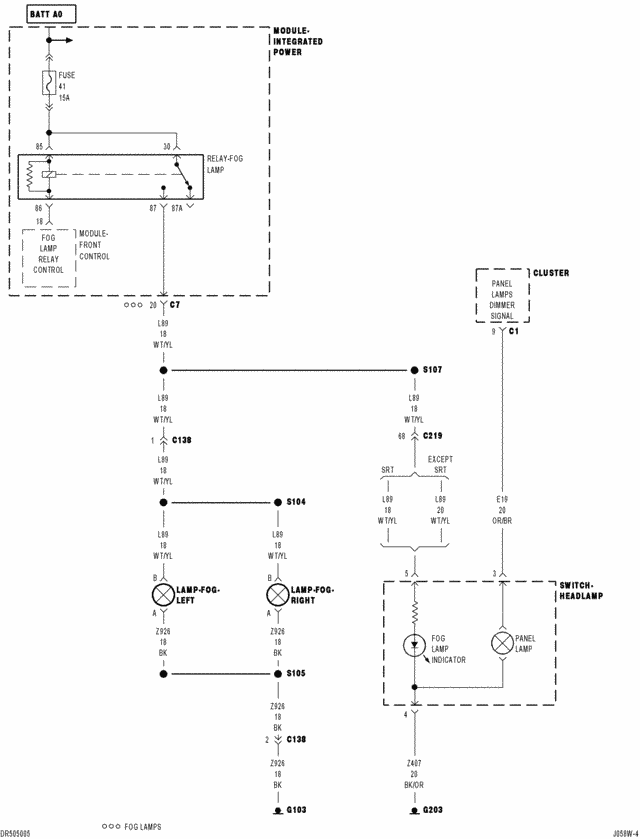

Front lighting 4 (except base)![]()
Front lighting 5![]()
Fuel, ignition 1 (gas)![]()
Fuel, ignition 13 (gas)![]()
Fuel, ignition 2 (gas)![]()
Fuel, ignition 24 (srt)![]()
Fuel, ignition 28 (diesel)![]()
Fuel, ignition 29 (diesel)![]()
Fuel, ignition 3 (gas)![]()
Fuel, ignition 30 (diesel)![]()
Fuel, ignition 31 (diesel)![]()
Fuel, ignition 32 (diesel)![]()
Fuel, ignition 33 (diesel)![]()
Fuel, ignition 34 (diesel)![]()
Fuel, ignition 35 (diesel)![]()
Fuel, ignition 36 (diesel)![]()
Fuel, ignition 37 (diesel)![]()
Fuel, ignition 38 (diesel)![]()
Fuel, ignition 39 (diesel)![]()
Fuel, ignition 4 (gas)![]()
Fuel, ignition 40 (diesel)![]()
Fuel, ignition 41 (diesel)![]()
Fuel, ignition 42 (diesel AT)![]()
Fuel, ignition 43 (diesel AT)![]()

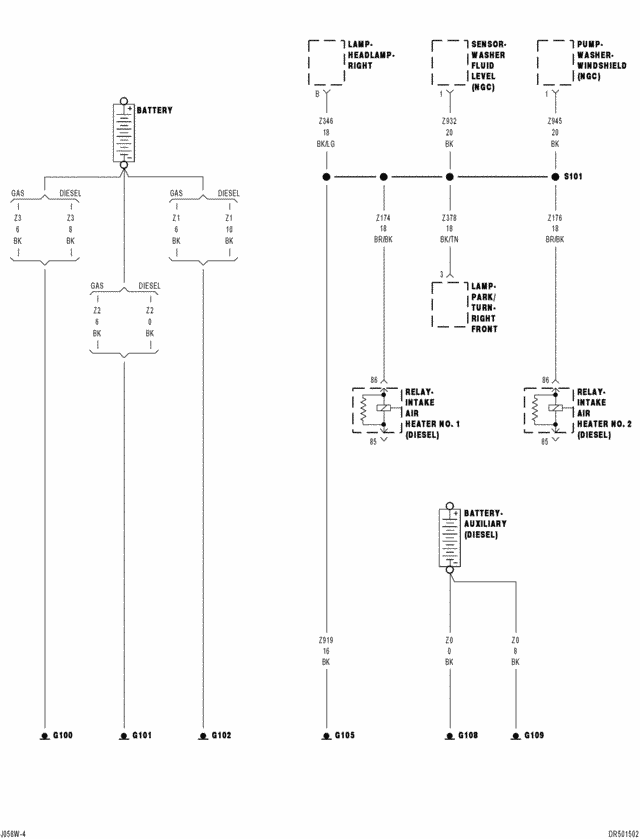

Grounds 1![]()
Grounds 11 (awal)![]()
Grounds 15 (diesel)![]()

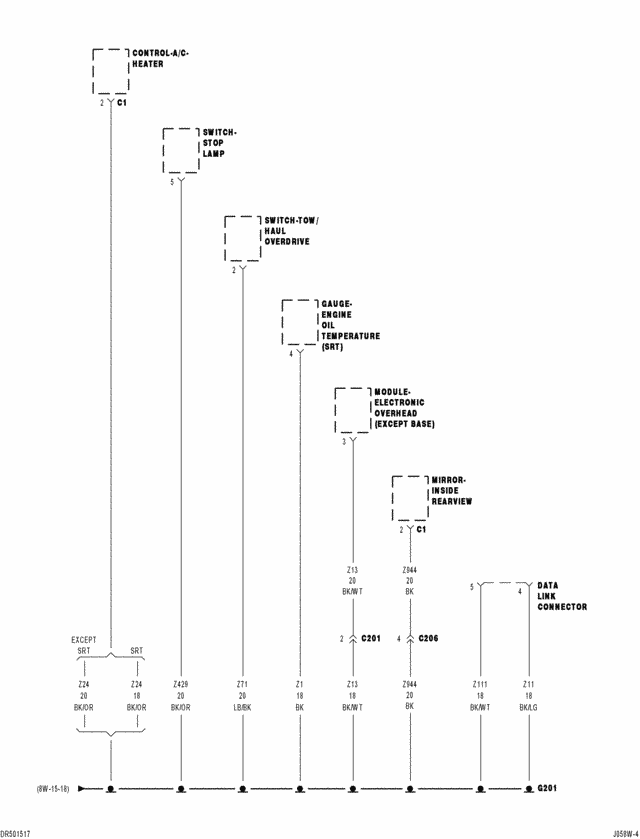

Grounds 16![]()

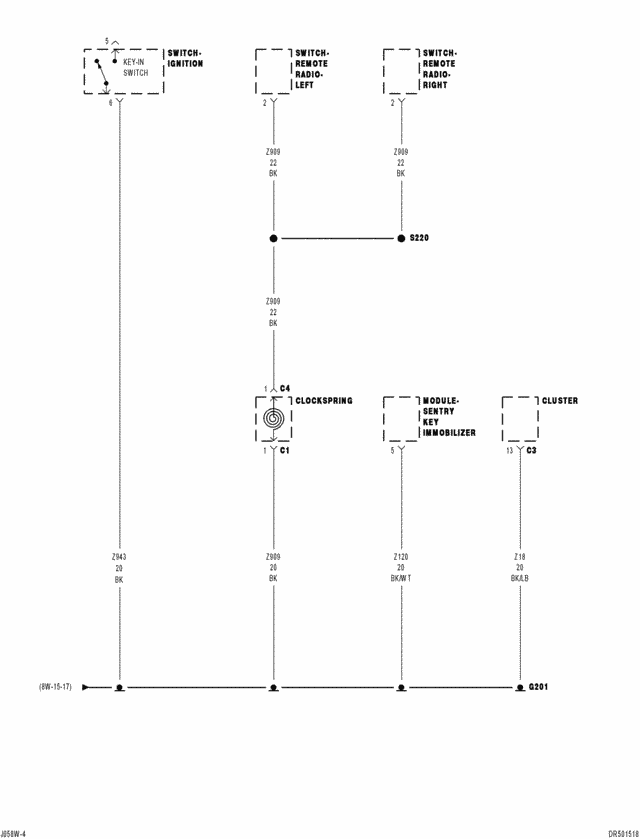

Grounds 17![]()

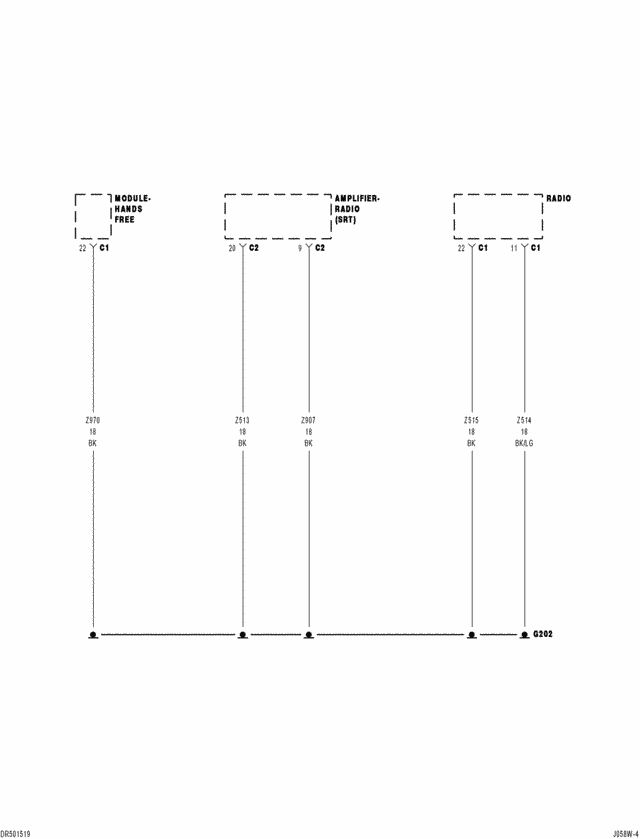

Grounds 18![]()

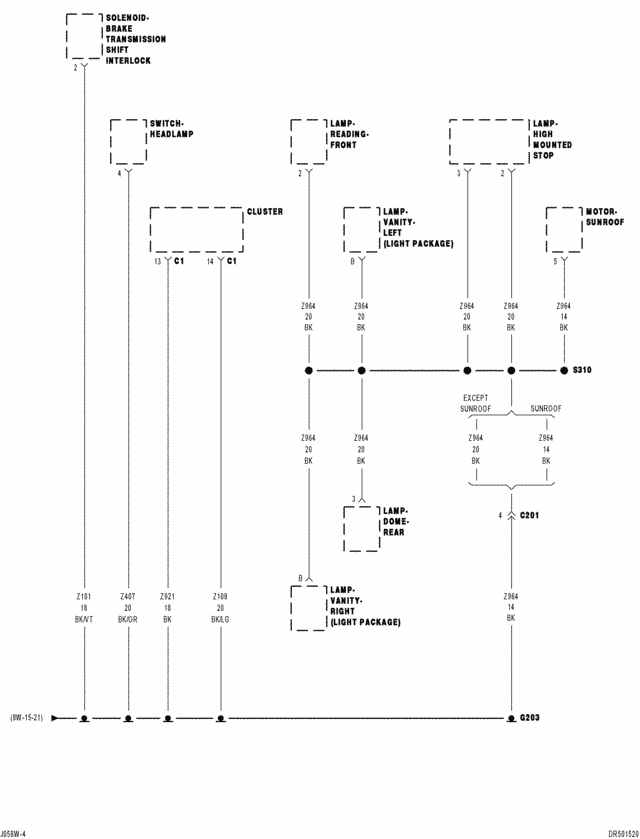

Grounds 19![]()
Grounds 2![]()
Grounds 20![]()

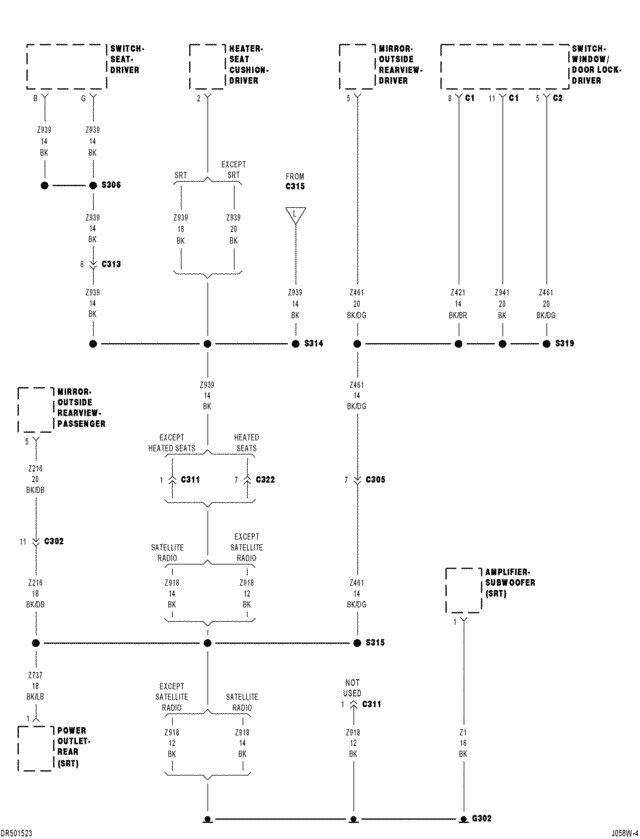

Grounds 22![]()

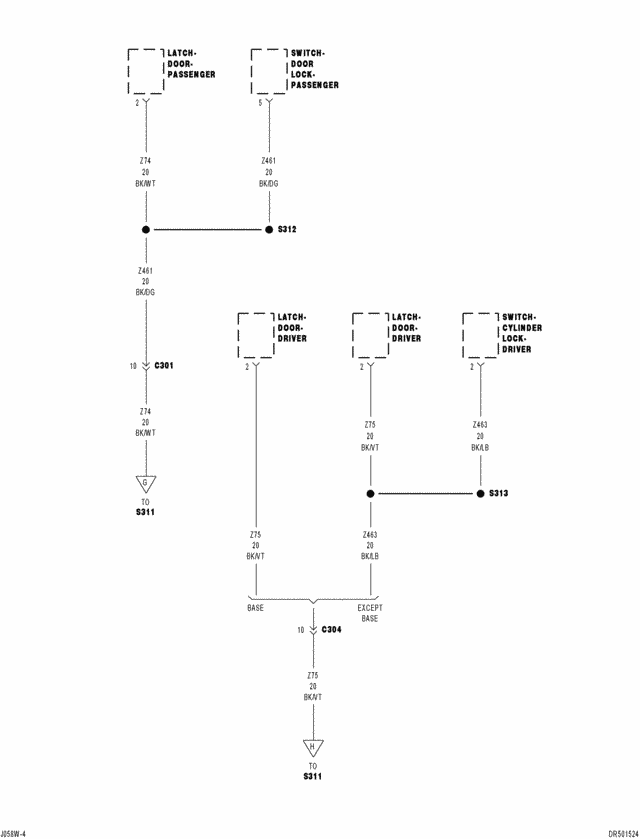

Grounds 23![]()

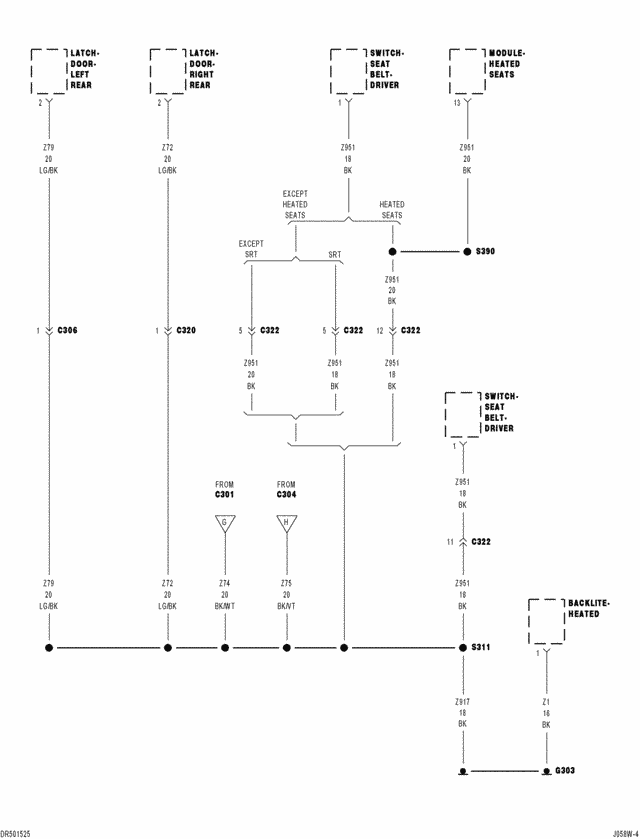

Grounds 24![]()
Grounds 3![]()
Grounds 4 (rwal)![]()

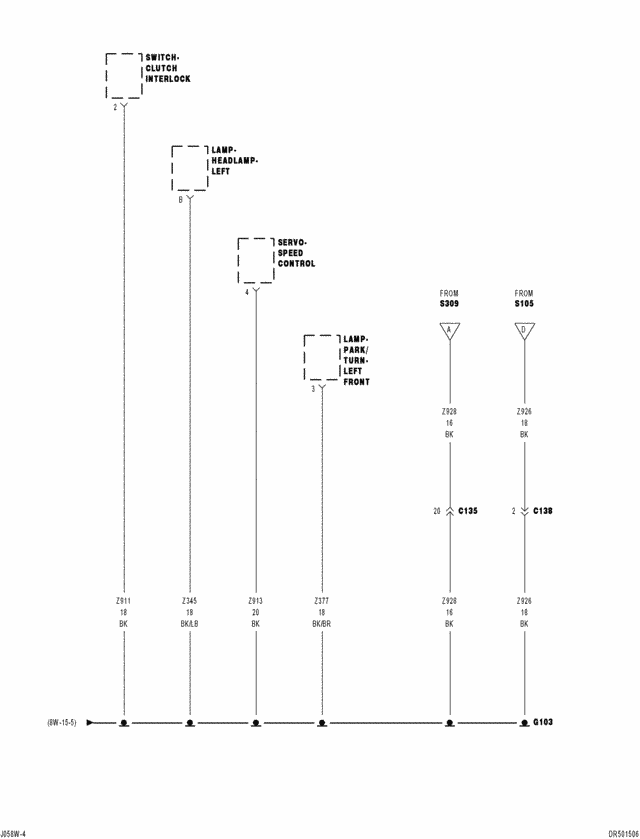

Grounds 5 (rwal)![]()
Grounds 6 (awal)![]()
Grounds 7 (awal)![]()
Grounds 8 (awal)![]()
Grounds 9 (rwal)![]()
Horn, power outlets 1![]()

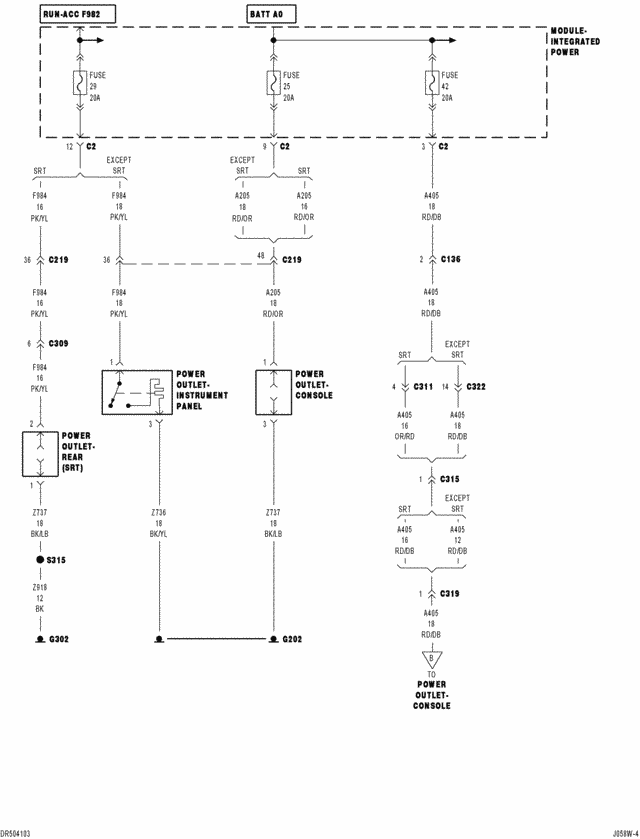

Horn, power outlets 2![]()
Horn, power outlets 3![]()

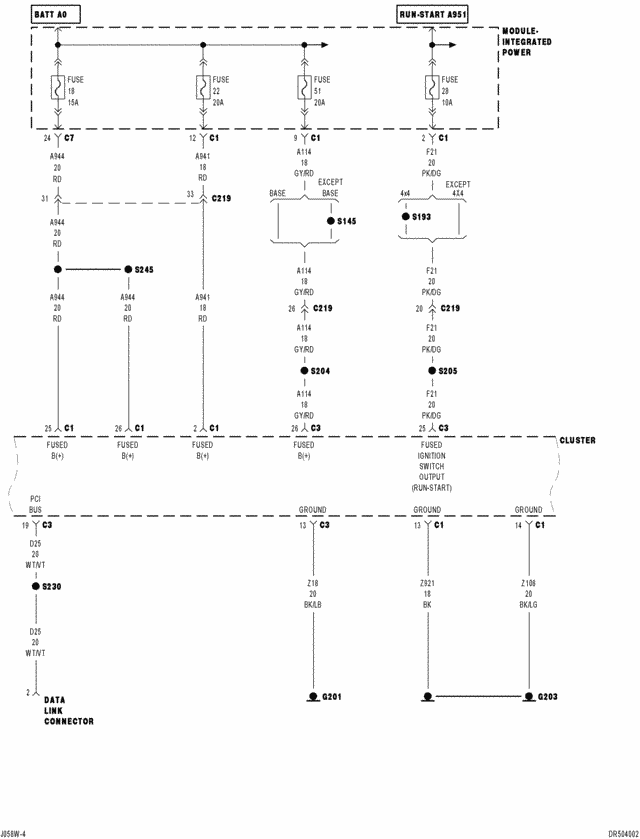

Ic 1![]()

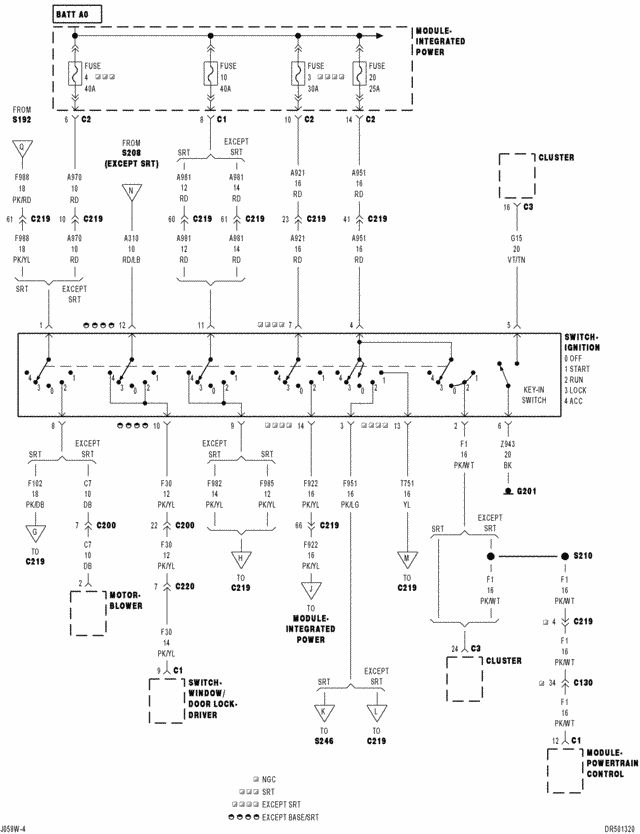

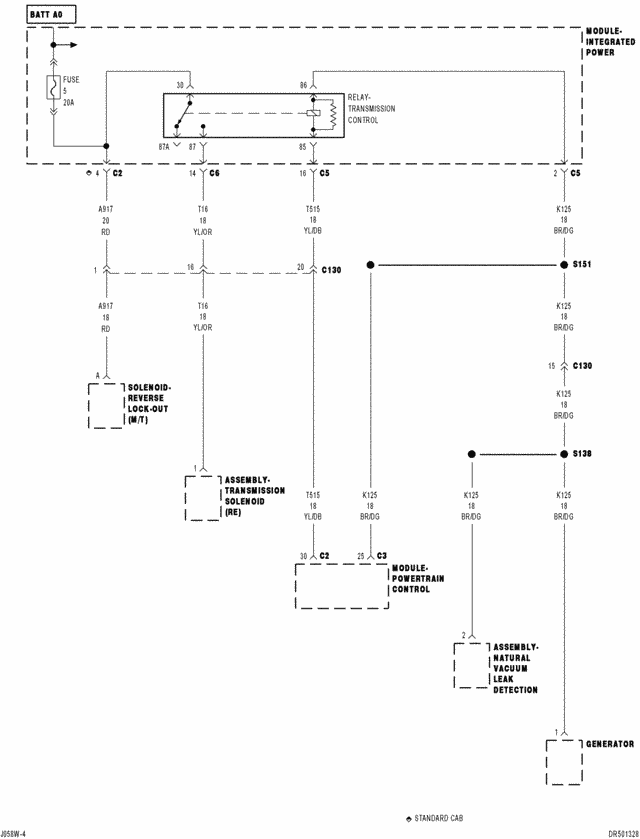

Ic 10 (srt)![]()
Ic 2![]()
Ic 3![]()
Ic 4![]()

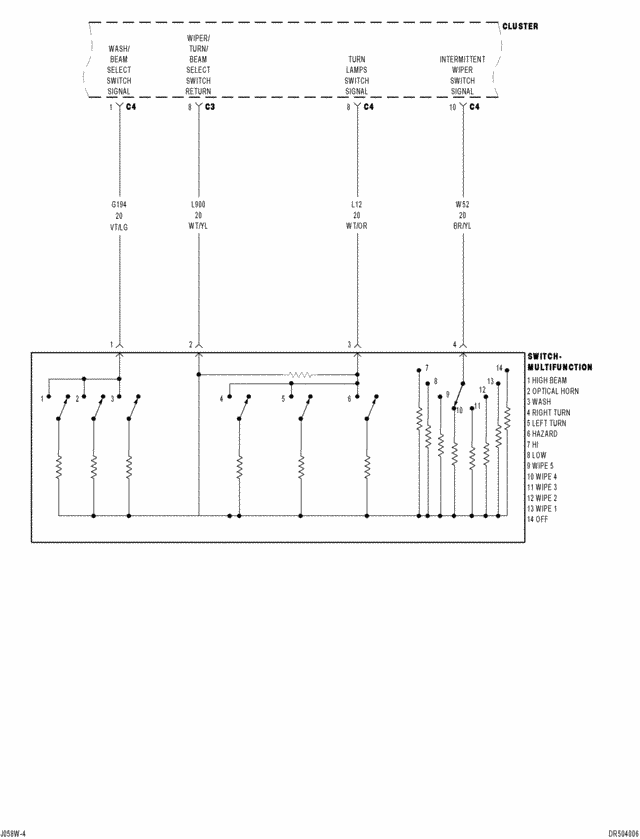

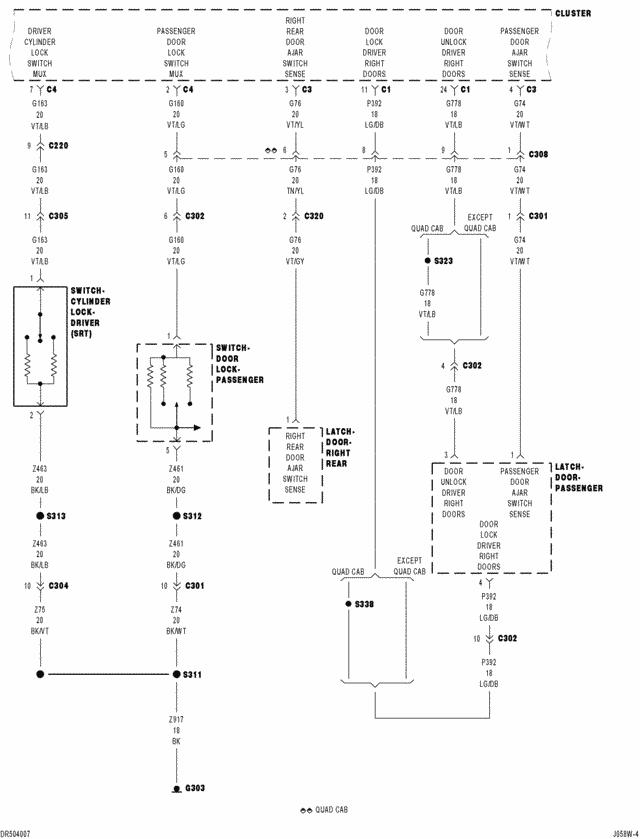

Ic 5 (except base)![]()
Ic 6 (except base)![]()
Ic 7 (except base)![]()
Ic 8![]()
Ic 9![]()

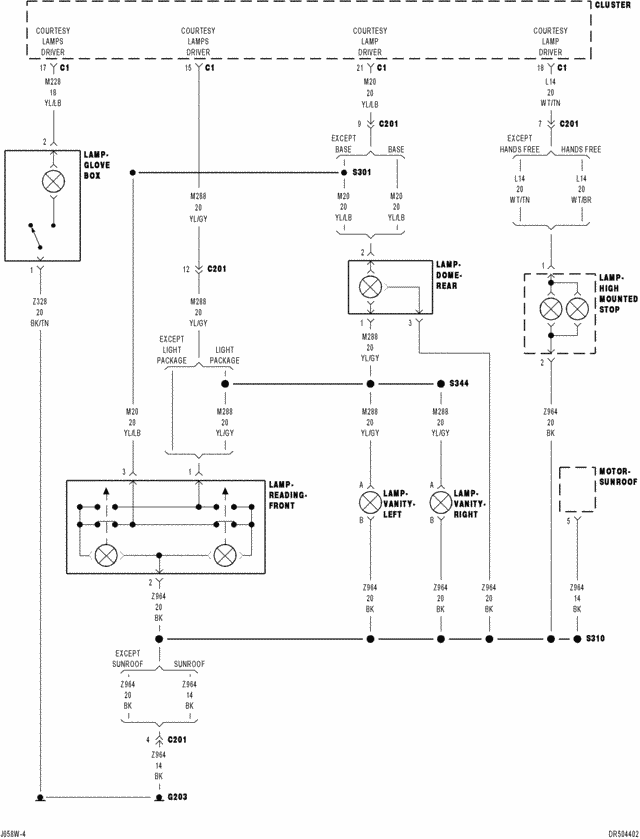

Interior lighting 1 (except srt)![]()
Interior lighting 2 (srt)![]()
Interior lighting 3![]()
Interior lighting 4![]()

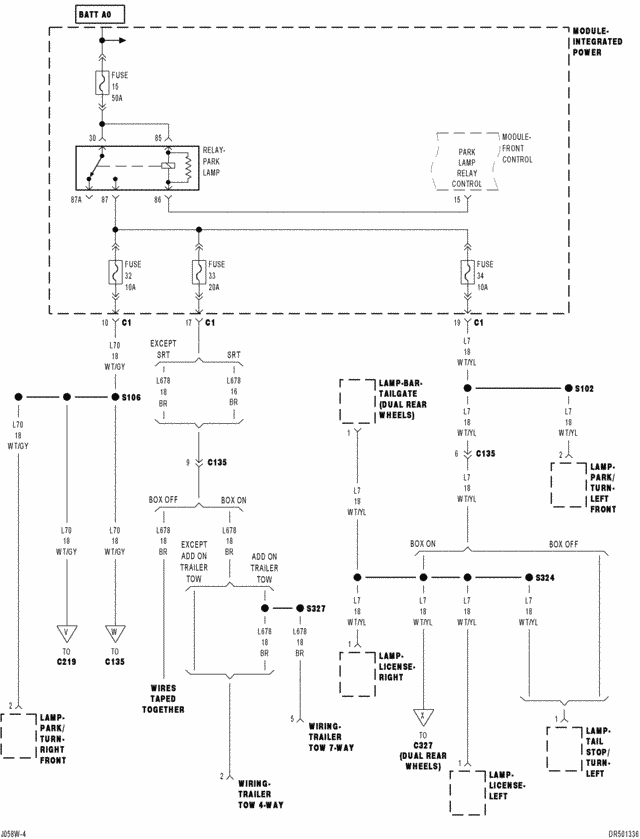

Ipm 1 (top view)![]()
Ipm 10![]()

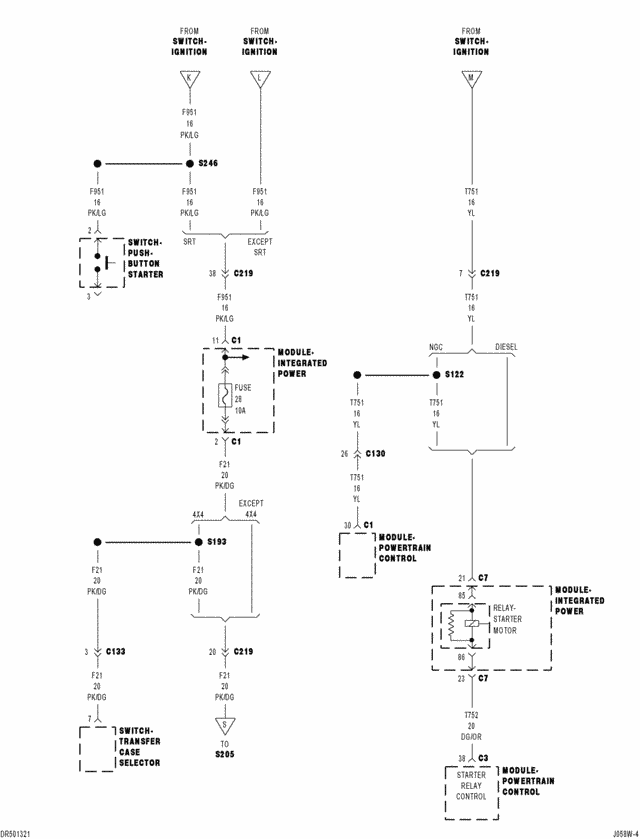

Ipm 11![]()

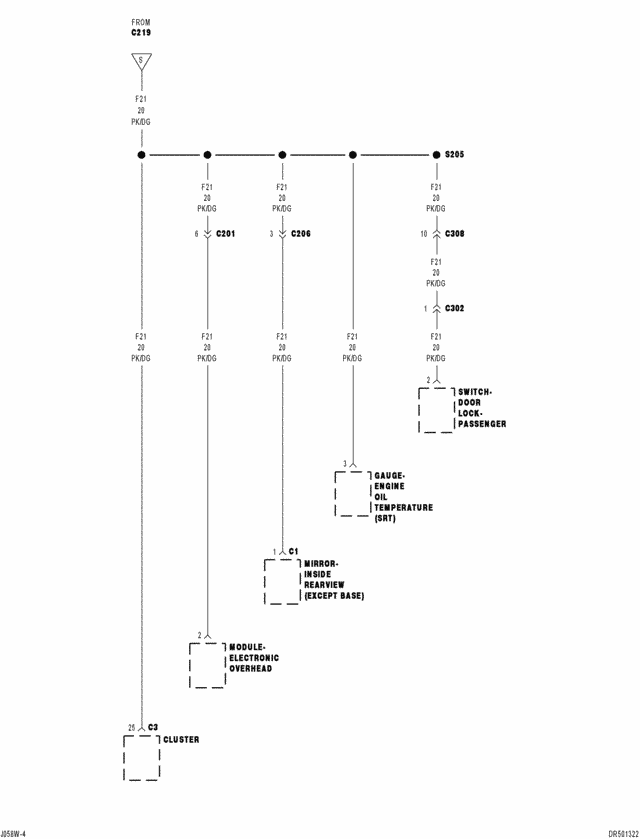

Ipm 12![]()

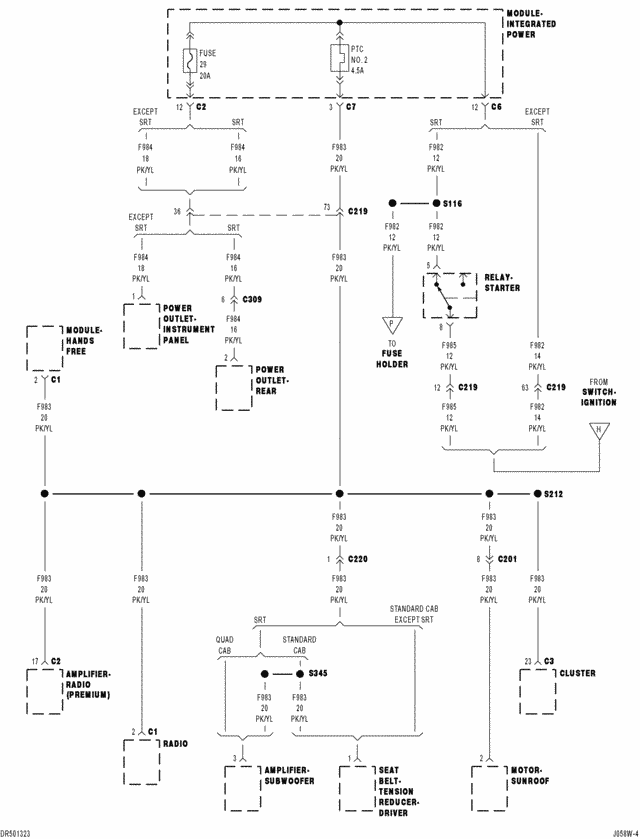

Ipm 13![]()

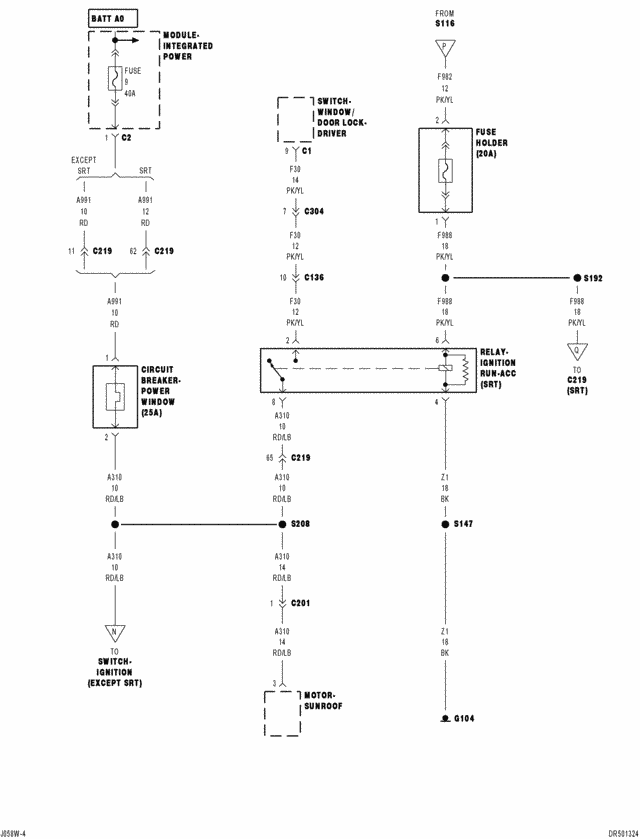

Ipm 14![]()

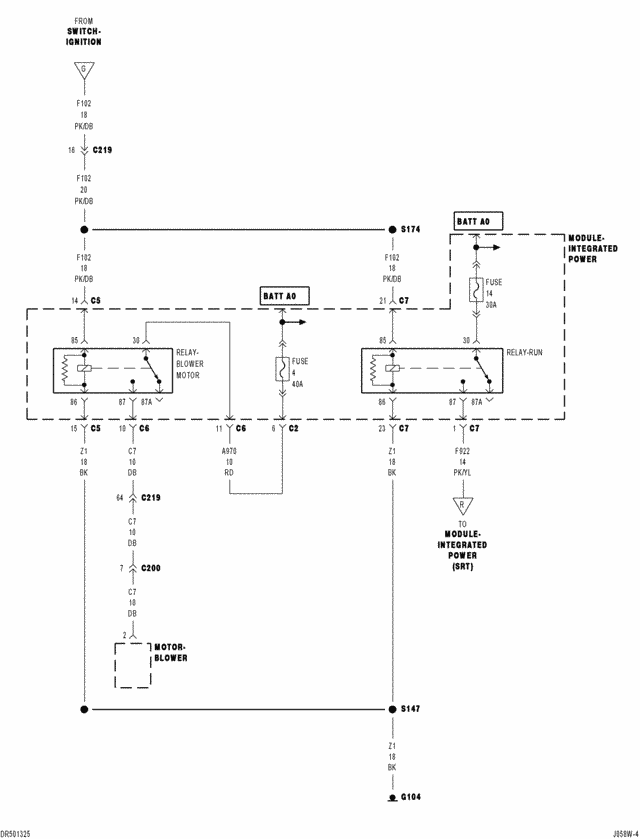

Ipm 15 (srt)![]()

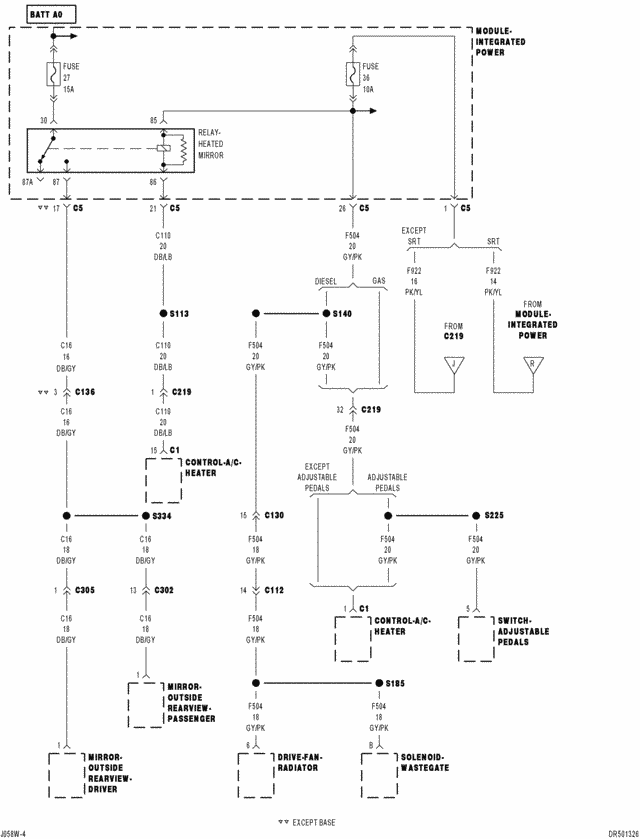

Ipm 16![]()
Ipm 17 (ngc)![]()
Ipm 18 (srt)![]()
Ipm 19 (diesel)![]()
Ipm 2 (bottom view)![]()

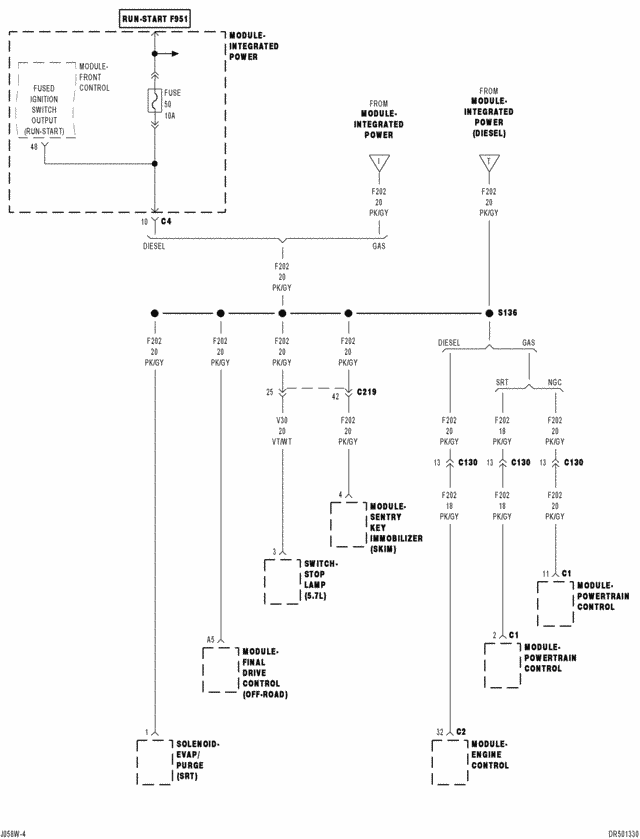

Ipm 20![]()

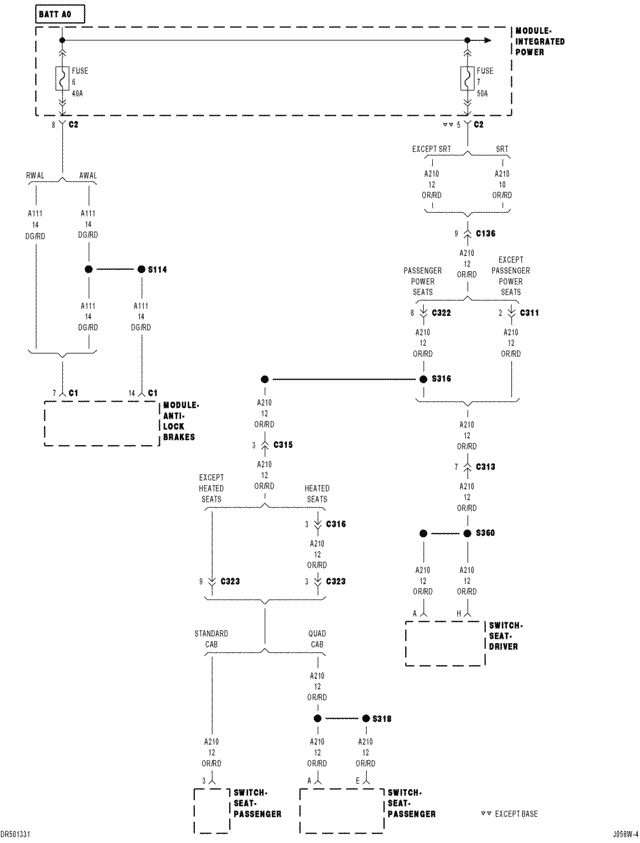

Ipm 21![]()
Ipm 22![]()
Ipm 23![]()
Ipm 24 (ngc)![]()

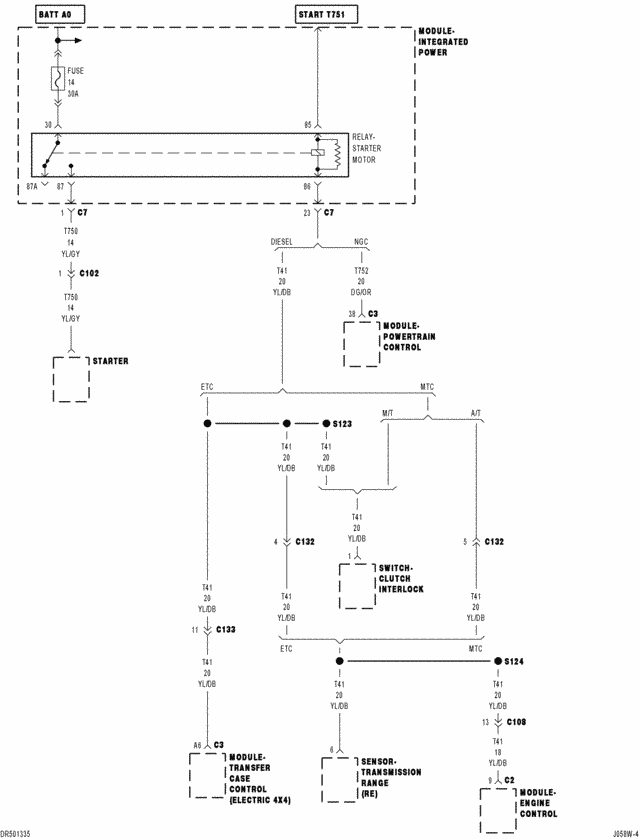

Ipm 25 (except srt)![]()
Ipm 26![]()

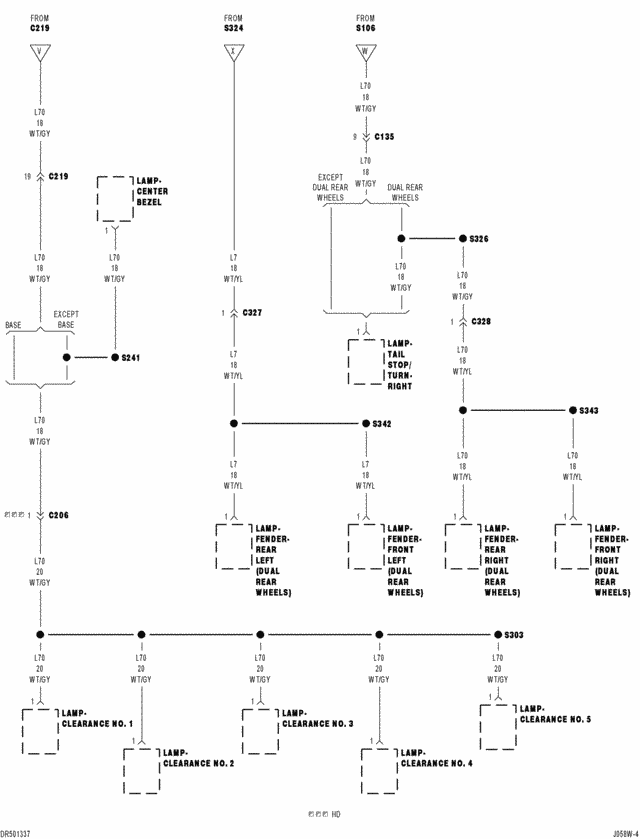

Ipm 27![]()
Ipm 28![]()
Ipm 29![]()
Ipm 3![]()
Ipm 30![]()

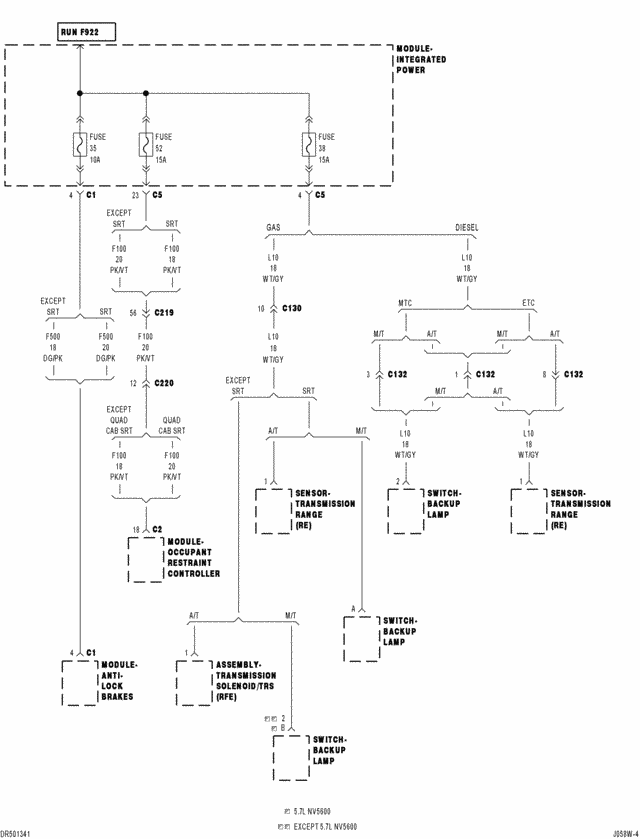

Ipm 31![]()
Ipm 32![]()
Ipm 33![]()
Ipm 34![]()
Ipm 35![]()

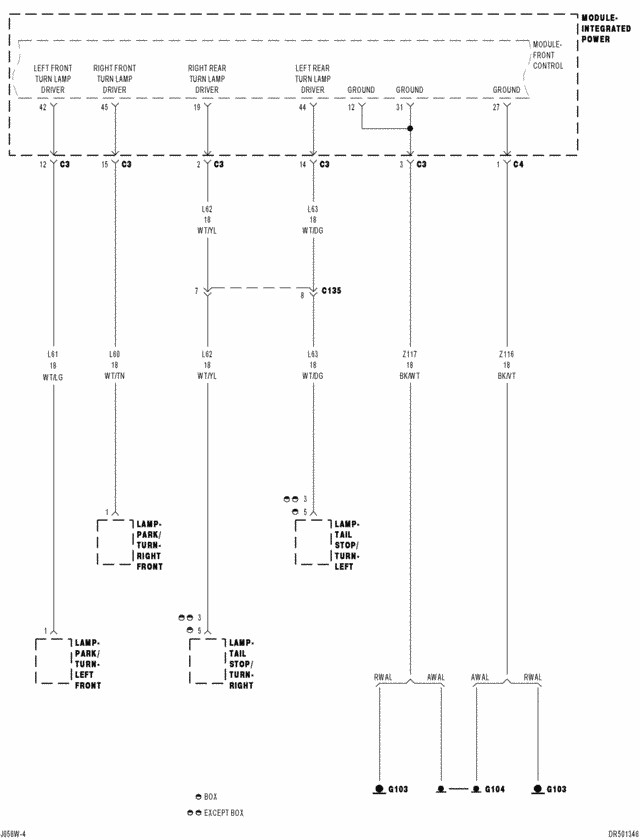

Ipm 36![]()
Ipm 37![]()
Ipm 4![]()
Ipm 5 (gas)![]()
Nav,tele 1 (hands free)![]()
Nav,tele 2 (hands free)![]()

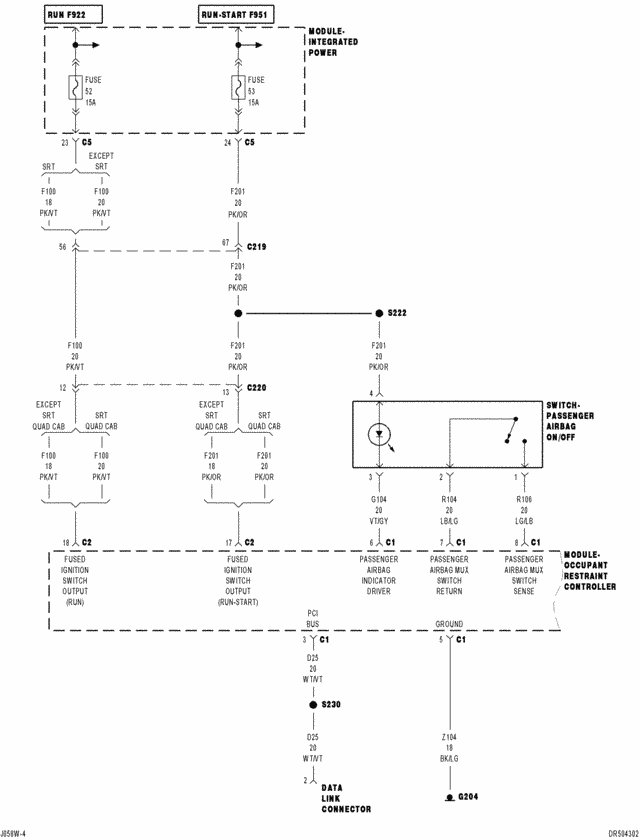

Orc 1![]()
Orc 3 (side airbags)![]()
Overhead console 1![]()
Overhead console 2![]()

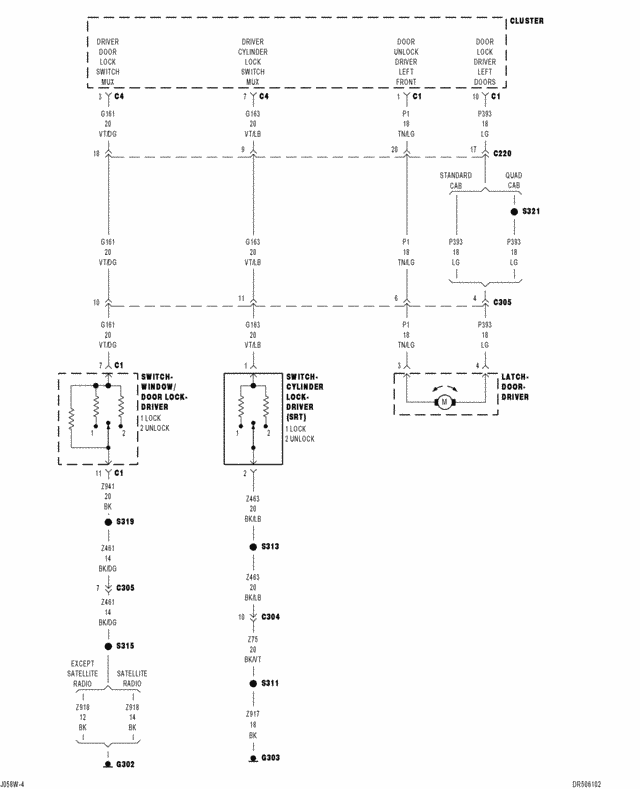

Power door locks 1![]()
Power door locks 2![]()
Power mirors 1![]()
Power mirors 2![]()

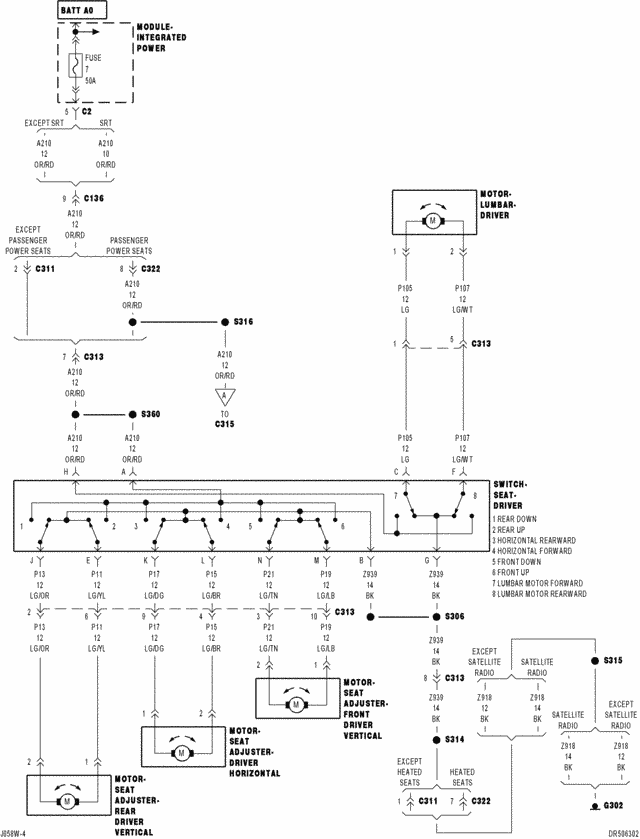

Power seats 1![]()
Power seats 5 (heated seats)![]()
Power sunroof 1 (quad cab)![]()
Power windows 1![]()
Power windows 2![]()
Power windows 3 (quad)![]()
Power windows 4 (quad)![]()

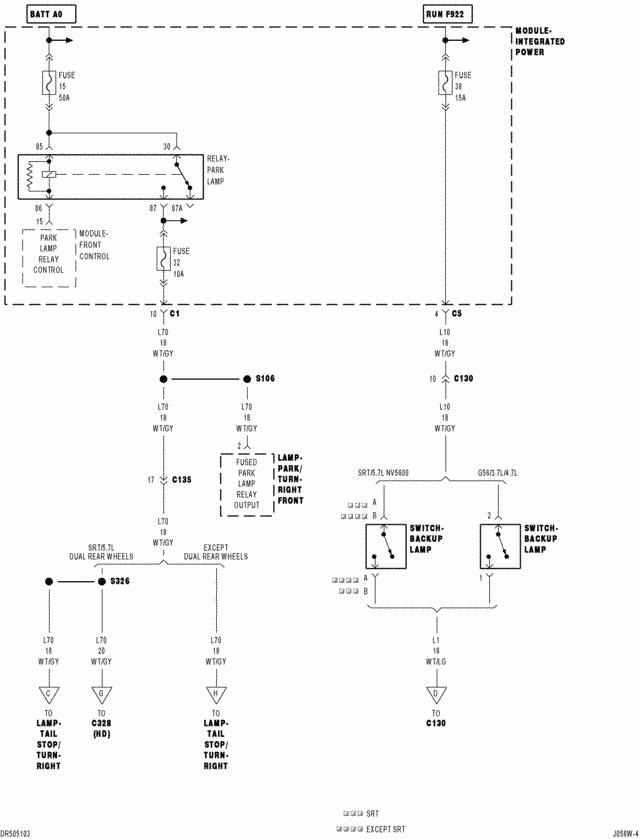

Rear lighting 1![]()
Rear lighting 2![]()
Rear lighting 3![]()
Rear lighting 4![]()

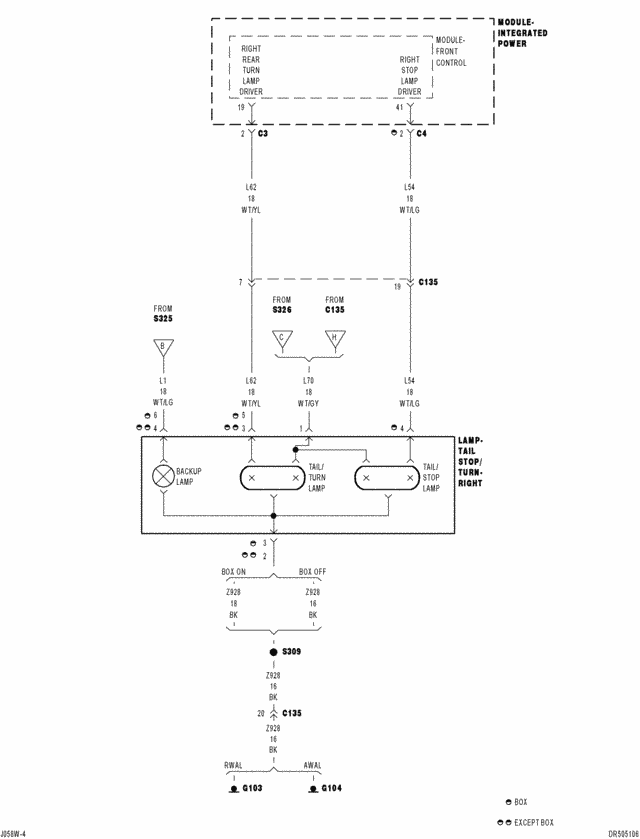

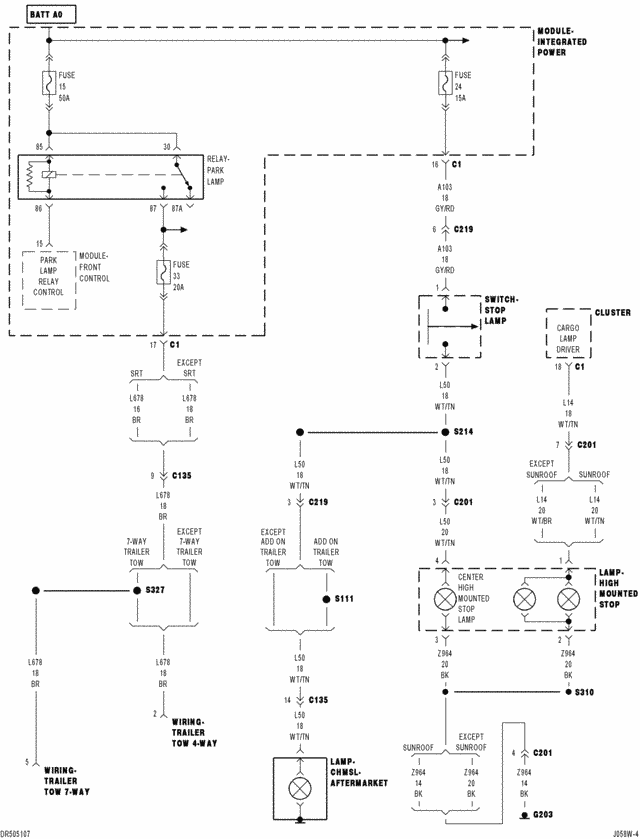

Rear lighting 5![]()
Rear lighting 6![]()
Rear wheel antilock brakes 1 (ngc)![]()
Rear window defogger 1![]()
Splices 10 (ngc)![]()
Splices 11 (diesel)![]()
Splices 4 (diesel)![]()
Splices 5![]()
Starting 1 (gas except srt)![]()
Starting 2 (srt)![]()

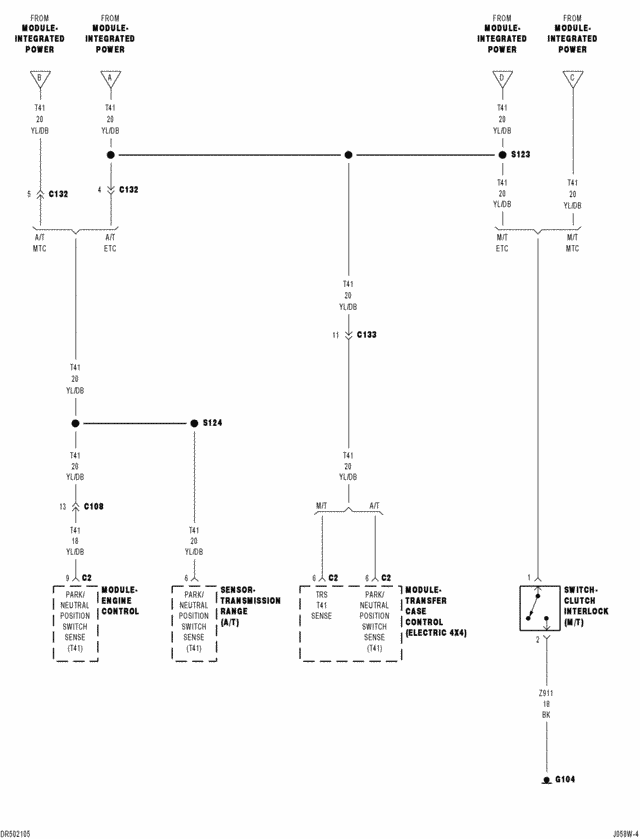

Starting 3 (diesel)![]()
Starting 4 (diesel)![]()

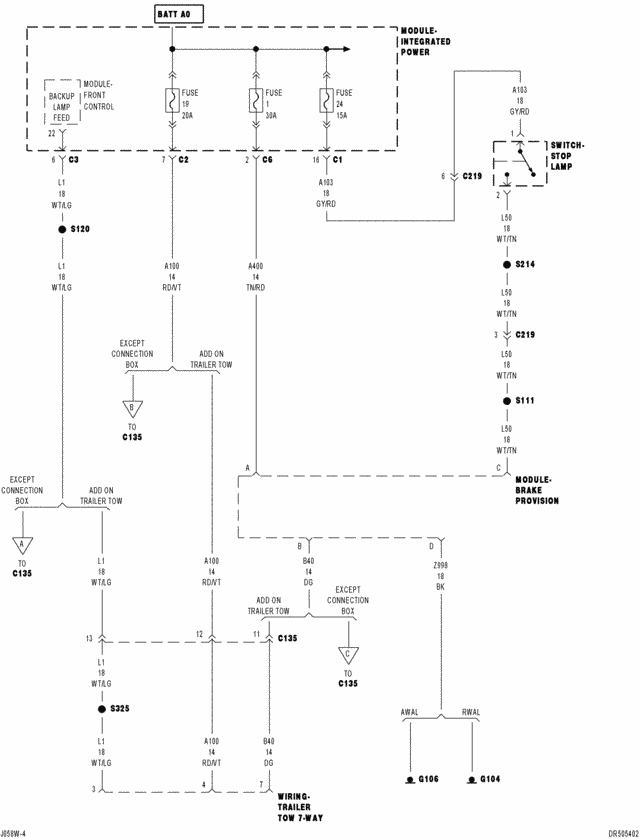

Trailer tow 1![]()
Trailer tow 2 (except box)![]()
Trailer tow 3 (except add on)![]()
Trailer tow 4 (add on)![]()

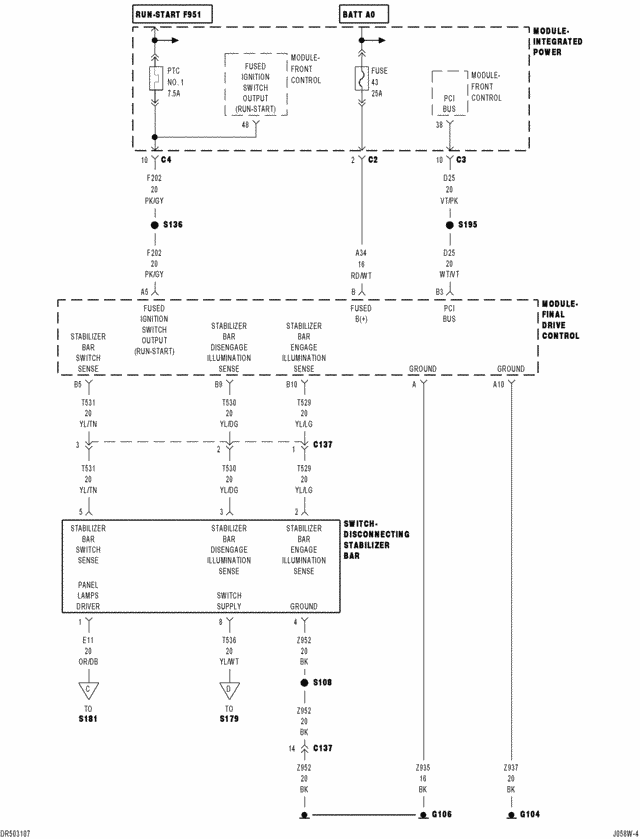

Trailer tow 6 (5.7L HD)![]()
Trans control 1 (ngc)![]()

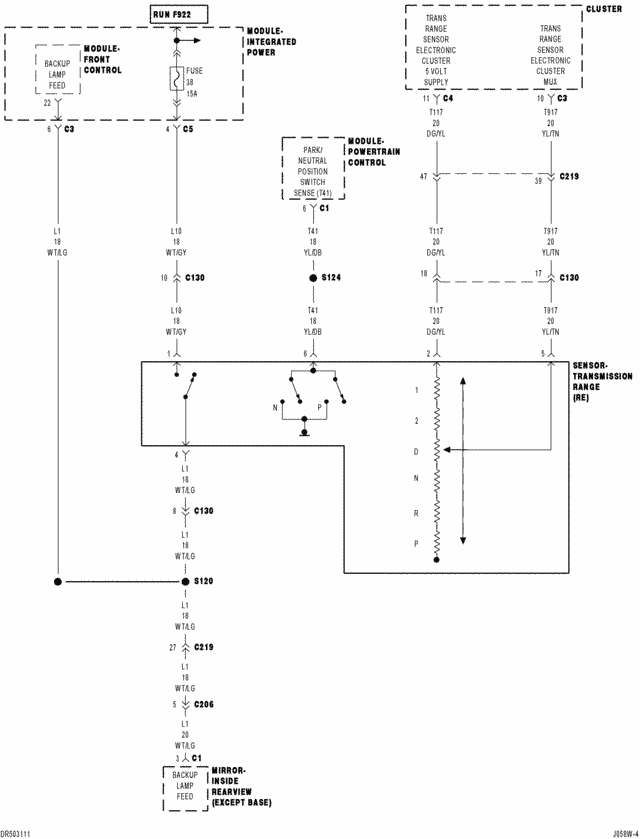

Trans control 10 (srt)![]()
Trans control 11 (diesel)![]()
Trans control 12 (diesel)![]()
Trans control 13 (diesel)![]()
Trans control 14 (electric transfer case)![]()
Trans control 15 (electric transfer case)![]()
Trans control 16 (3.7L)(electric transfer case)![]()
Trans control 16 (except 3.7L)(electric transfer case)![]()
Trans control 18![]()
Trans control 9 (srt)![]()
Turn signals 1![]()
Turn signals 2![]()
Turn signals 3![]()
Turn signals 4![]()
Turn signals 5![]()
Vehicle security 1![]()
Vehicle security 2![]()
Vehicle security 4![]()
Vehicle speed control 1![]()
Vehicle speed control 2![]()
Vehicle speed control 3 (gas)![]()
Vehicle speed control 6![]()
Wipers 1![]()
Wipers 2![]()
Wipers 3
