Honda Civic 2005 wiring diagrams

: Parent Category: Wiring Diagrams; Category: Acura, Honda

Airbag srs (1)-1

Airbag srs (2)-1

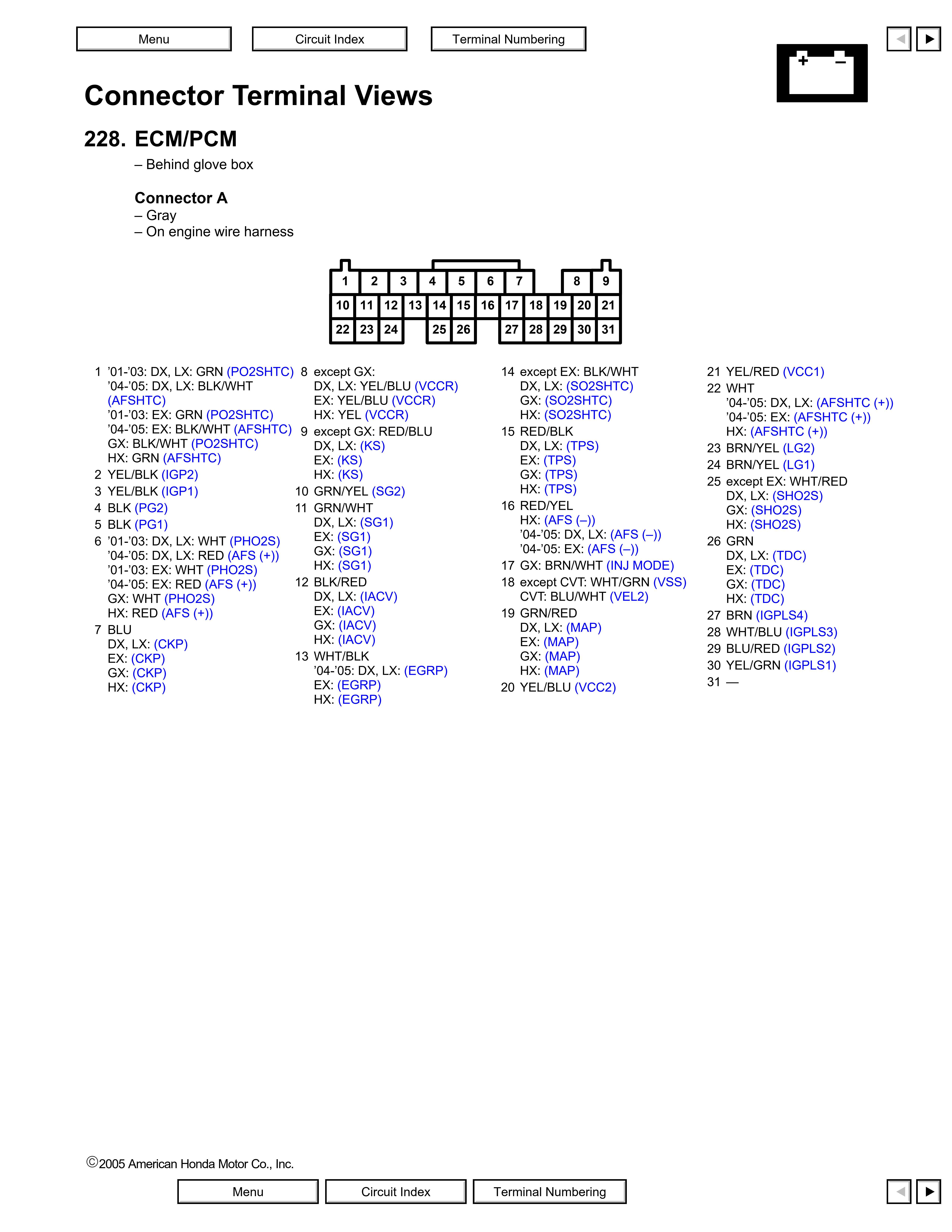

Engine controls (1)-1

Engine controls (1)-2

Engine controls (1)-3

Engine controls (1)-4

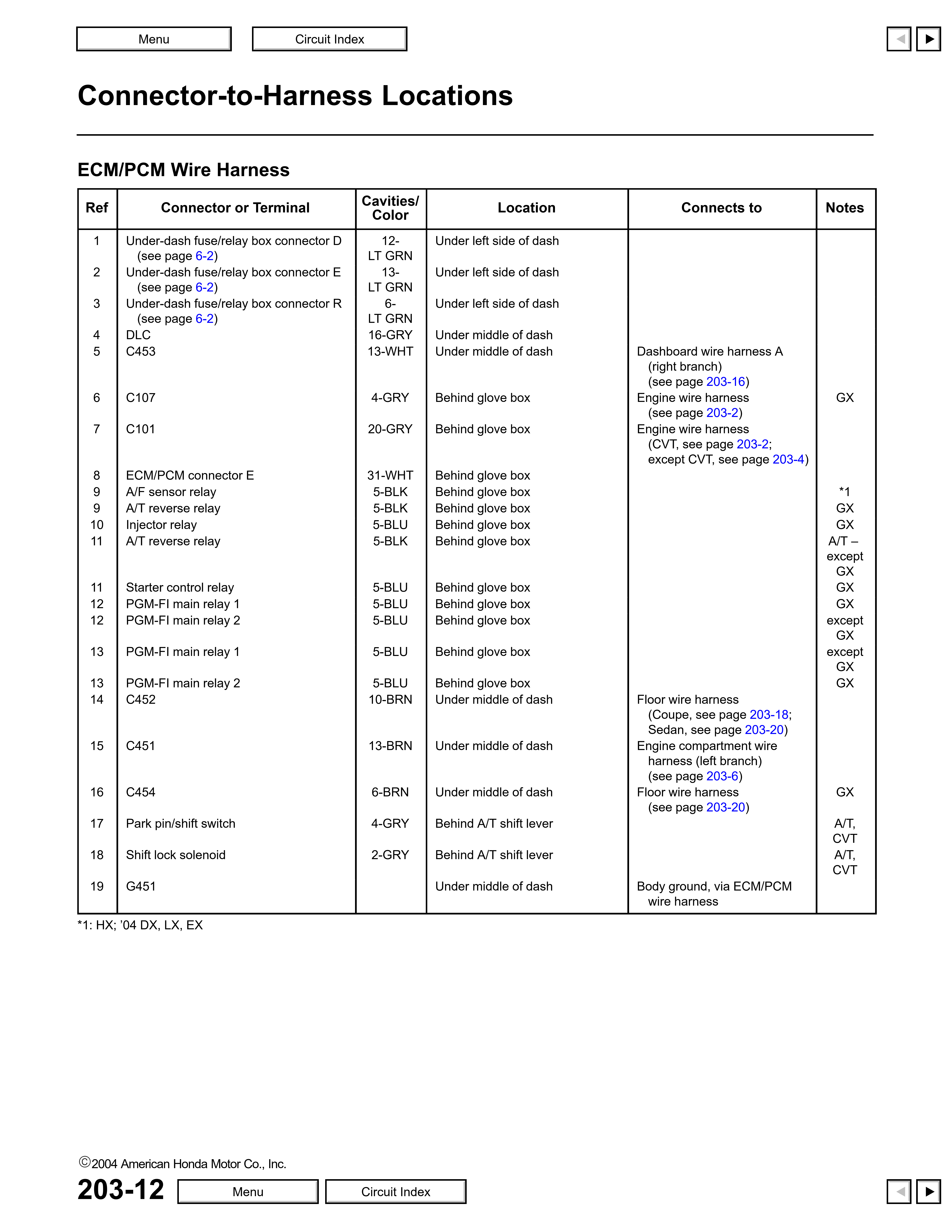

Engine controls (2)-1

Engine controls (2)-2

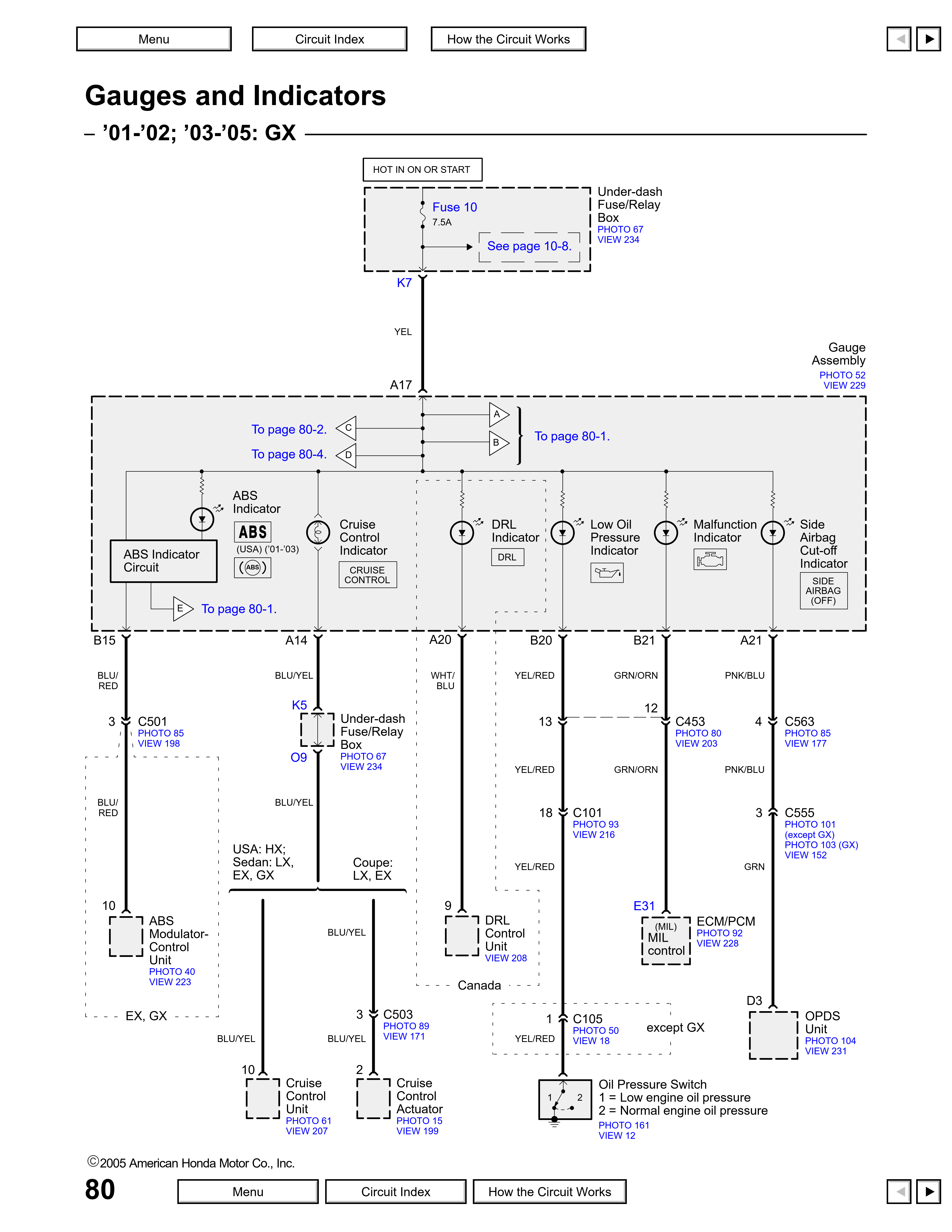

Guage assembly (1)-1

Guage assembly (2)-1

Guage assembly (3)-1

Guage assembly (4)-1

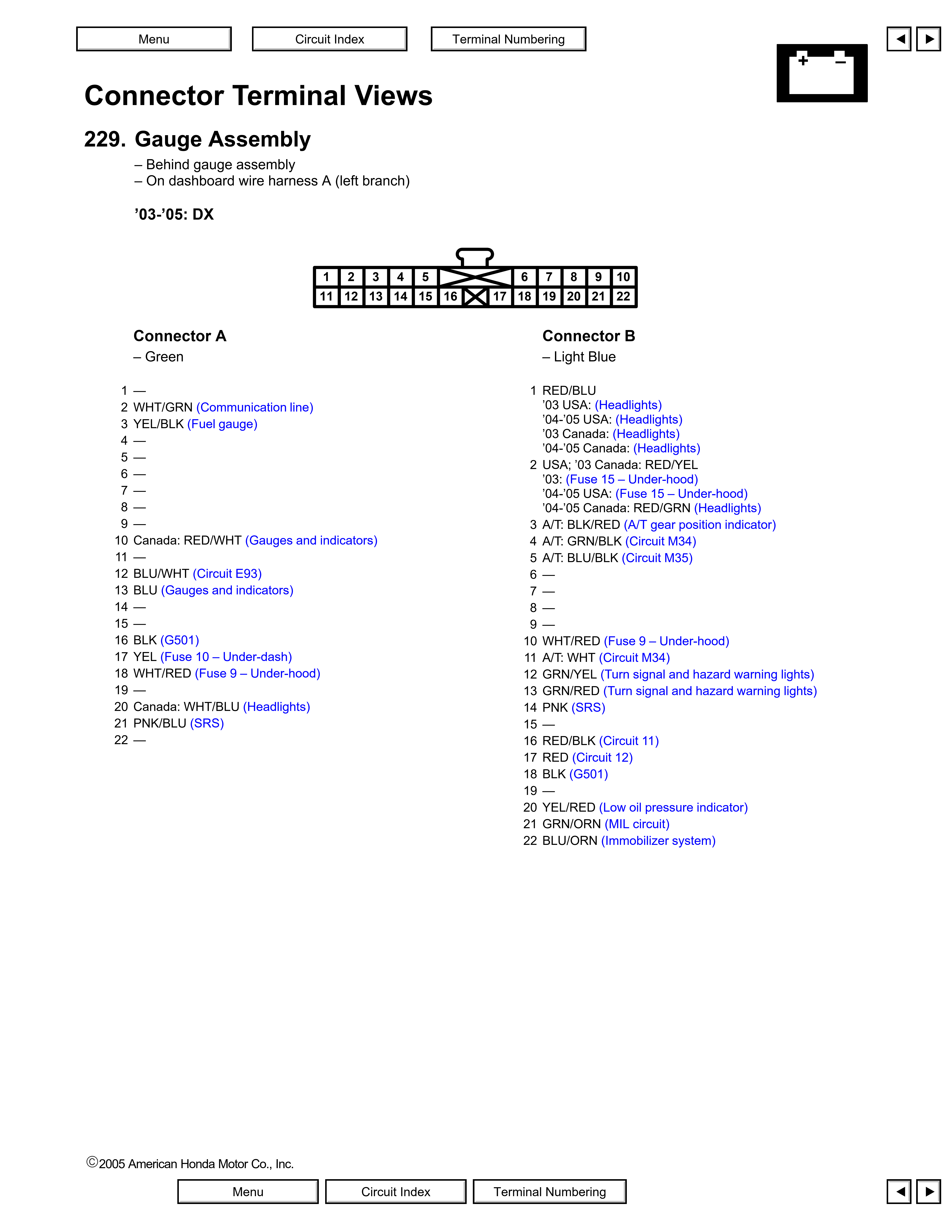

Guage assembly (4)-2

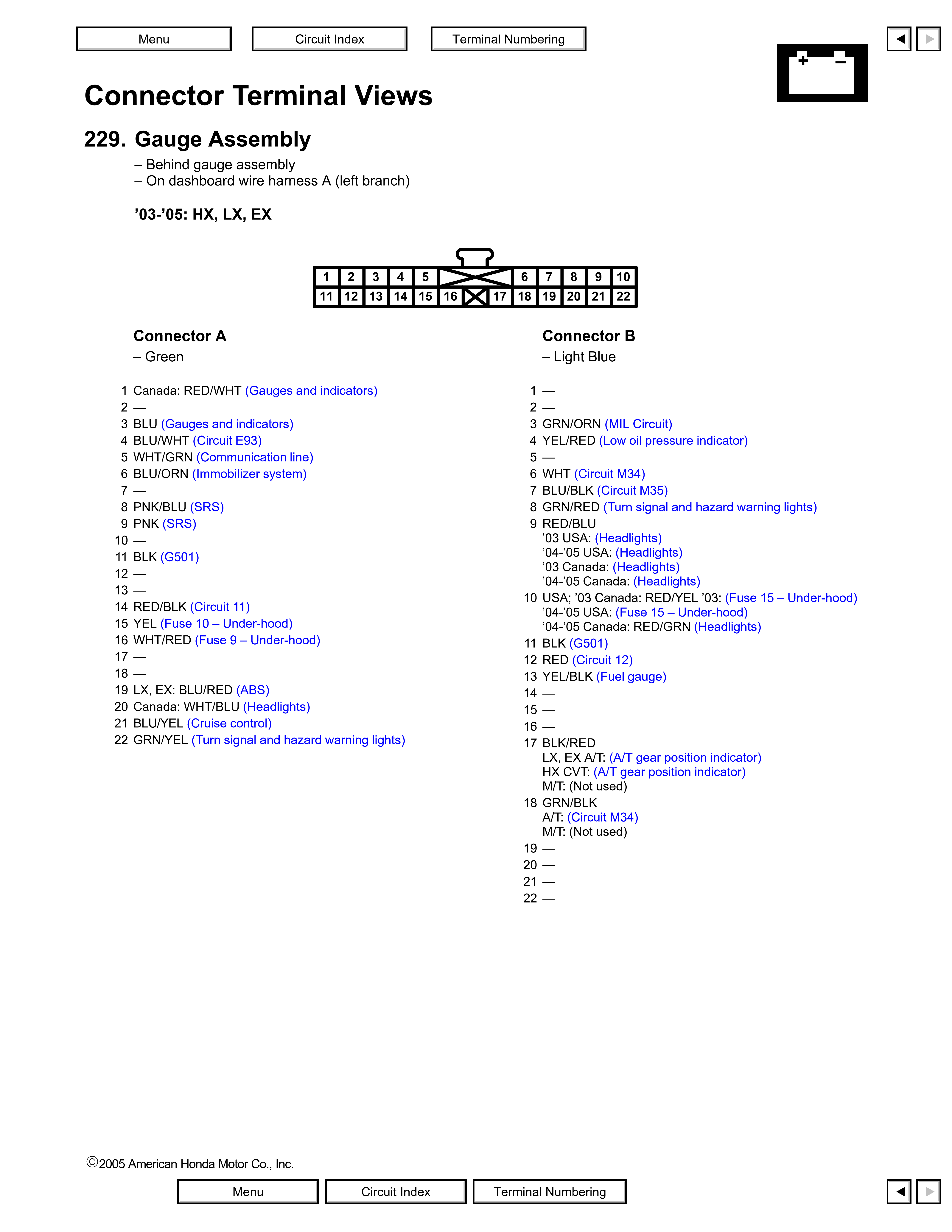

Guage assembly (4)-3

”
