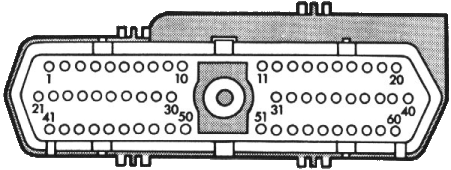

**harness connector end**
| Pin | Circuit | Wire Gauge | Wire Color | Function |
| 1 | K01 | 20 | DG/RD* | MAP sensor signal |
| 2 | K02 | 20 | TN/BK* | Coolant temperature sensor signal |
| 3 | A14 | 16 | RD/WT* | Automatic shutdown (ASD) relay power feed sense |
| 4 | K04 | 18 | BK/LB* | Signal ground to sensors |
| 5 | Z11 | 16 | BK | Signal ground source from top rear of engine |
| 6 | K06 | 18 | VT | 5V power supply to MAP sensor and TPS |
| 7 | K07 | 18 | OR | 8V power supply to ignition reference sensor |
| 8 | - | - | - | Not used |
| 9 | A21 | 14 | DB | Ignition "start"/"run" power feed |
| 10 | - | - | - | Not used |
| 11 | Z12 | 16 | BK/TN* | Power ground source from top rear of engine |
| 12 | Z12 | 16 | BK/TN* | Power ground source from top rear of engine |
| 13 | - | - | - | Not used |
| 14 | - | - | - | Not used |
| 15 | - | - | - | Not used |
| 16 | K11 | 18 | WT/DB* | Fuel injector driver output |
| 17 | - | - | - | Not used |
| 18 | - | - | - | Not used |
| 19 | K19 | 18 | BK/GY* | Ignition coil driver output |
| 20 | K20 | 18 | DG | Alternator field coil driver output |
| 21 | - | - | - | Not used |
| 22 | K22 | 18 | OR/DB* | Throttle position sensor (TPS) signal |
| 23 | - | - | - | Not used |
| 24 | K24 | 18 | GY/BK* | Ignition reference sensor signal |
| 25 | D21 | 20 | PK | Serial communications interface (TX) |
| 26 | D01 | 20 | VT/BR* | Serial bus B+ |
| 27 | C20 | 18 | BR | A/C damped pressure switch signal |
| 28 | - | - | - | Not used |
| 29 | K29 | 18 | WT/PK* | Brake pedal switch signal |
| 30 | T24 | 20 | BR/LB* | Neutral safety switch signal |
| 31 | C27 | 20 | DB/PK* | Radiator fan relay output |
| 32 | G03 | 20 | BK/PK* | Check engine lamp output |
| 33 | V36 | 20 | TN/RD* | Speed control servo output (vacuum) |
| 34 | C13 | 20 | DB/OR* | A/C cutout (WOT) relay output |
| 35 | K35 | 20 | GY/YL* | Exhaust gas return (EGR) solenoid output (California only) |
| 36 | - | - | - | Not used |
| 37 | - | - | - | Not used |
| 38 | - | - | - | Not used |
| 39 | K39 | 18 | GY/RD* | AIS motor output (winding 2) |
| 40 | K40 | 18 | BR/WT* | AIS motor output (winding 1) |
| 41 | K41 | 18 | BK/DG* | Heated oxygen sensor signal |
| 42 | - | - | - | Not used |
| 43 | G21 | 20 | GY/LB* | Tachometer signal to instrument cluster |
| 44 | - | - | - | Not used |
| 45 | D20 | 20 | LG | Serial communications interface (RX) |
| 46 | D02 | 20 | WT/BK* | Serial bus B+ |
| 47 | G07 | 20 | WT/OR* | Speed/Distance sensor signal |
| 48 | V31 | 20 | BR/RD* | Speed control switch set signal |
| 49 | V32 | 20 | YL/RD* | Speed control switch on/off signal |
| 50 | V33 | 20 | WT/LG* | Speed control switch resume signal |
| 51 | K51 | 20 | DB/YL* | ASD relay output |
| 52 | K52 | 20 | PK/BK* | Purge canister solenoid output |
| 53 | V35 | 20 | LG/RD* | Speed control servo output (vent) |
| 54 | K54 | 20 | LG/WT* | Power transfer unit (PTU) unlock output |
| 55 | - | - | - | Not used |
| 56 | - | - | - | Not used |
| 57 | - | - | - | Not used |
| 58 | - | - | - | Not used |
| 59 | K59 | 18 | VT/BK* | AIS motor output (winding 1) |
