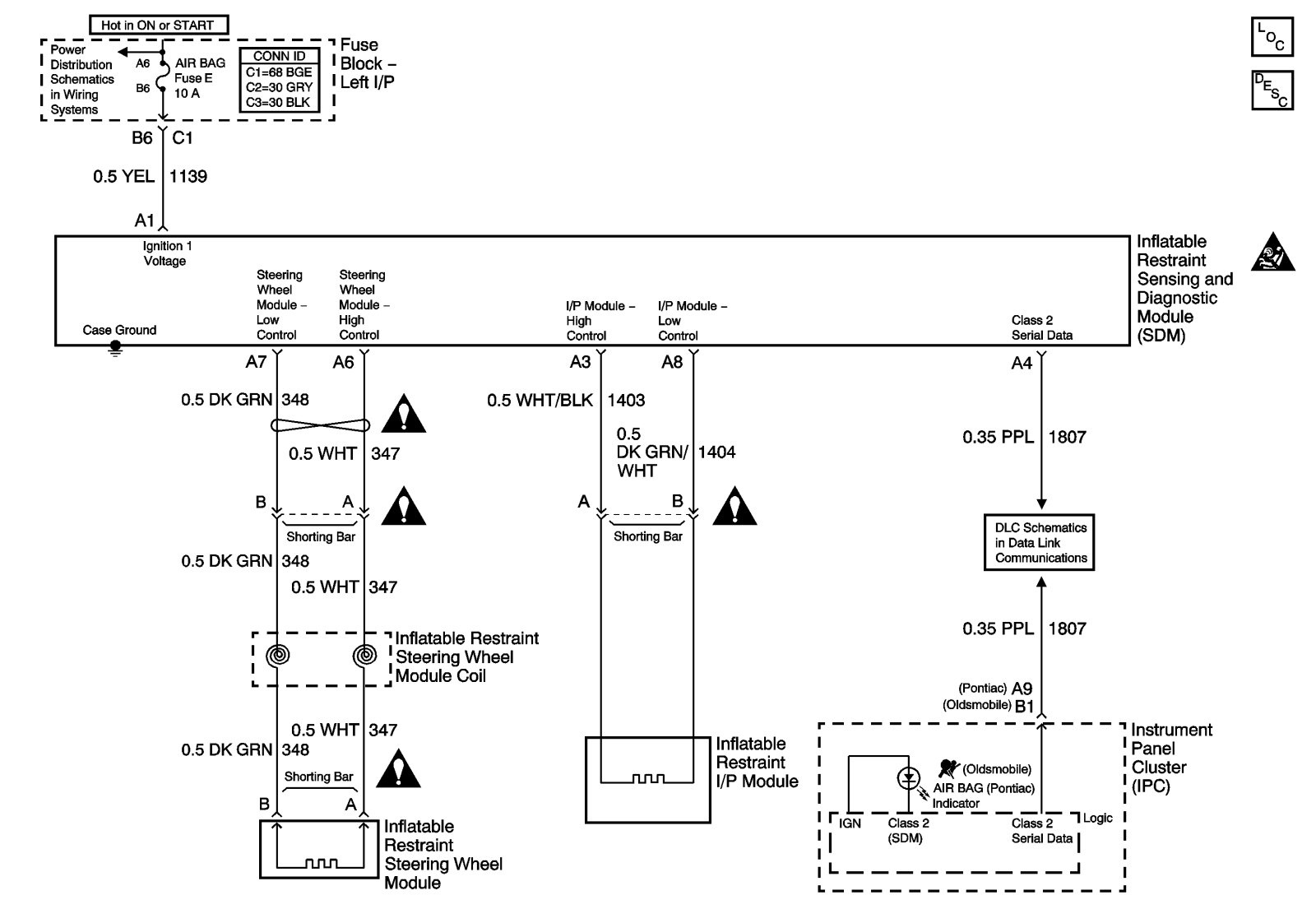

Pontiac Grand AM 2003 wiring diagrams

: Parent Category: Wiring Diagrams; Category: General Motors

Engine Controls 2.2L

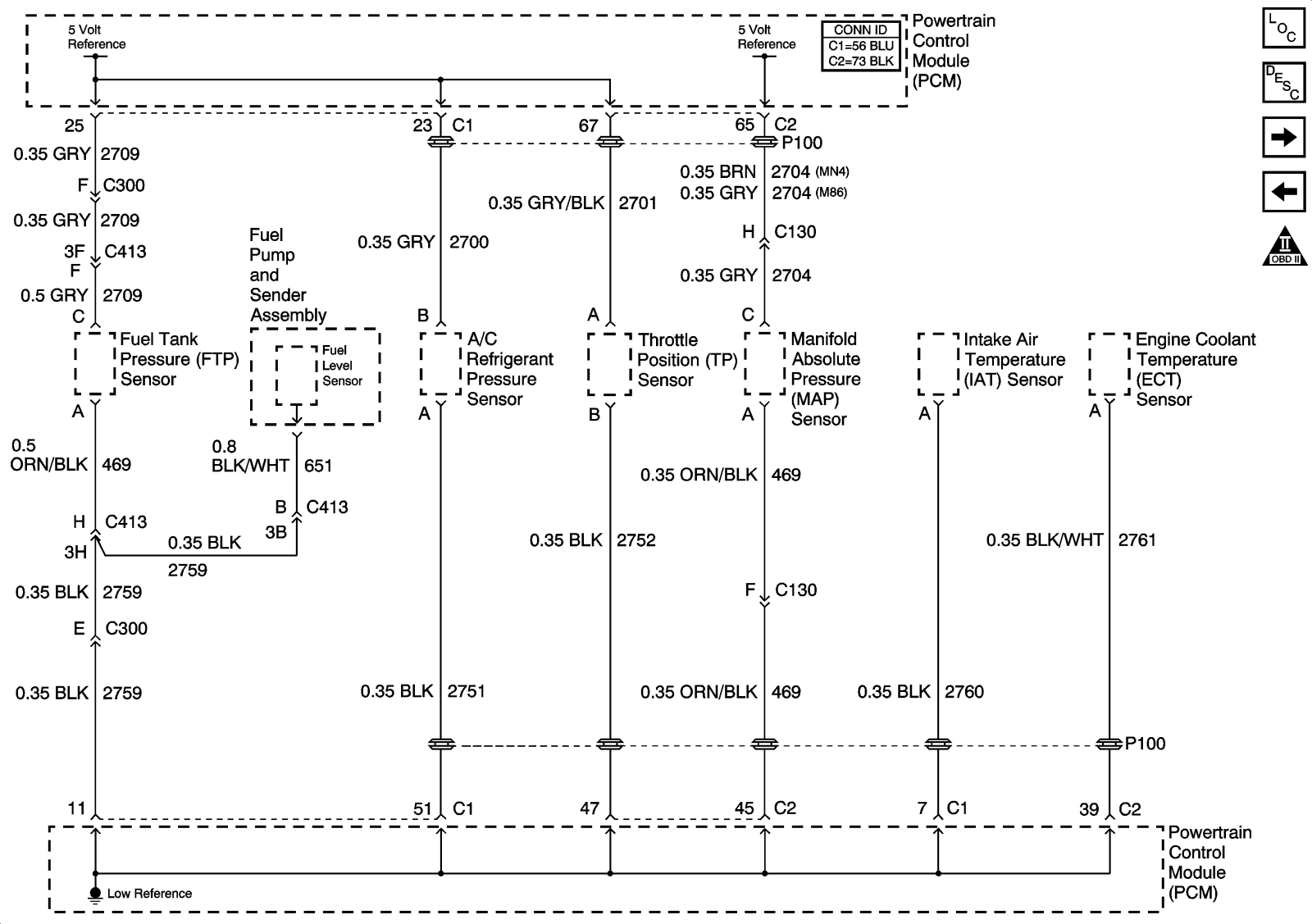

5 Volt and Low Reference Bussing

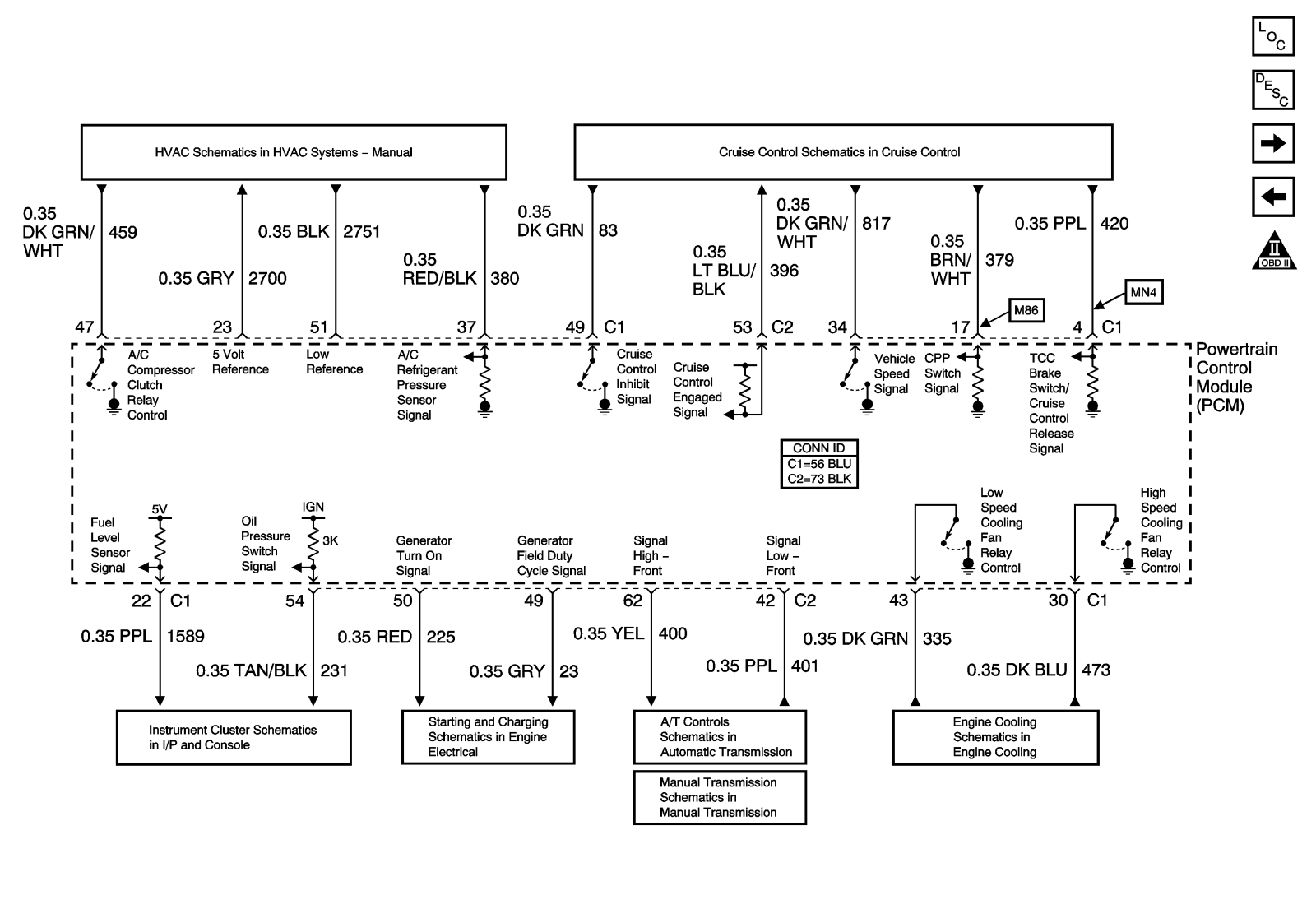

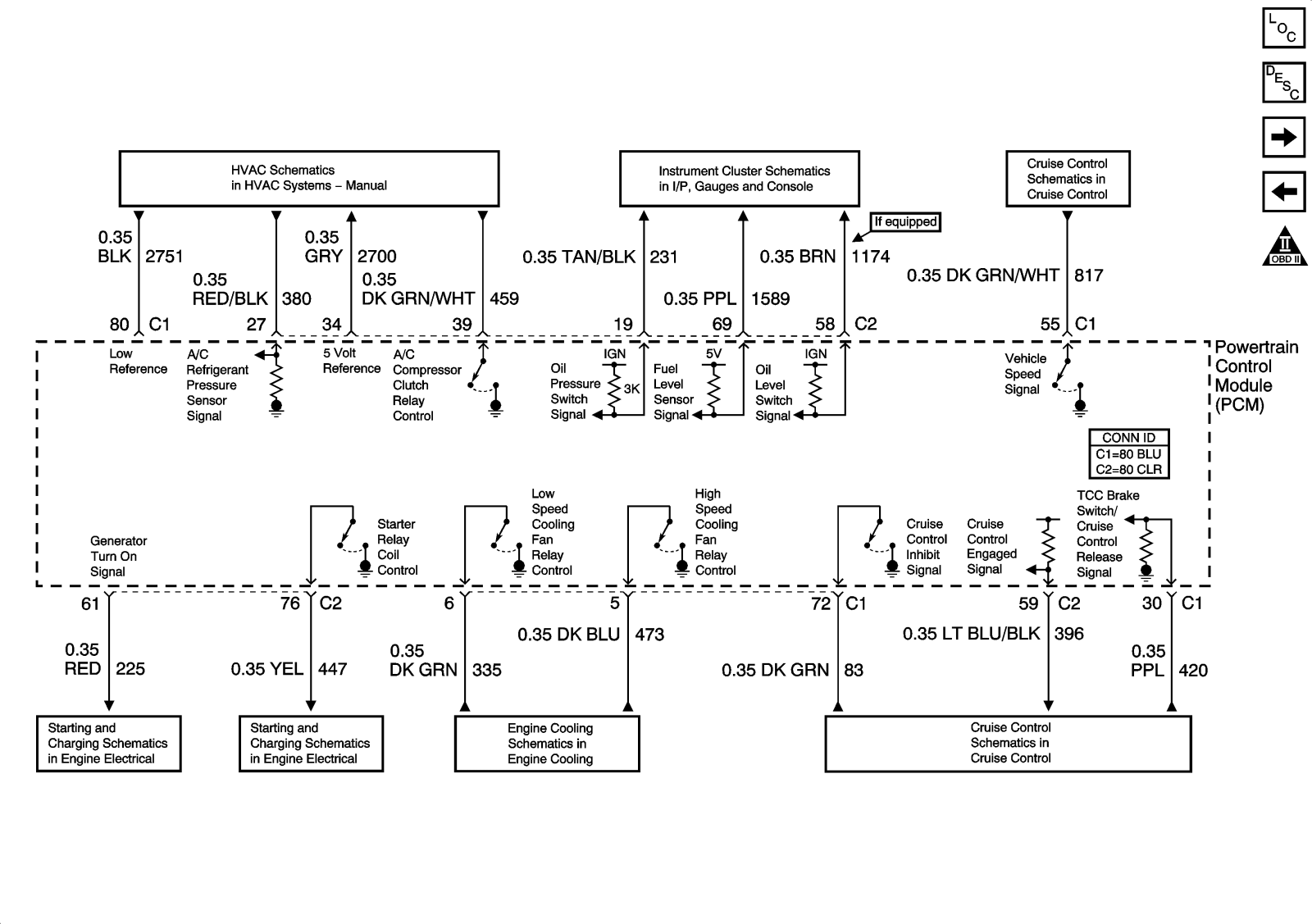

Controlled-Monitored Subsystem References

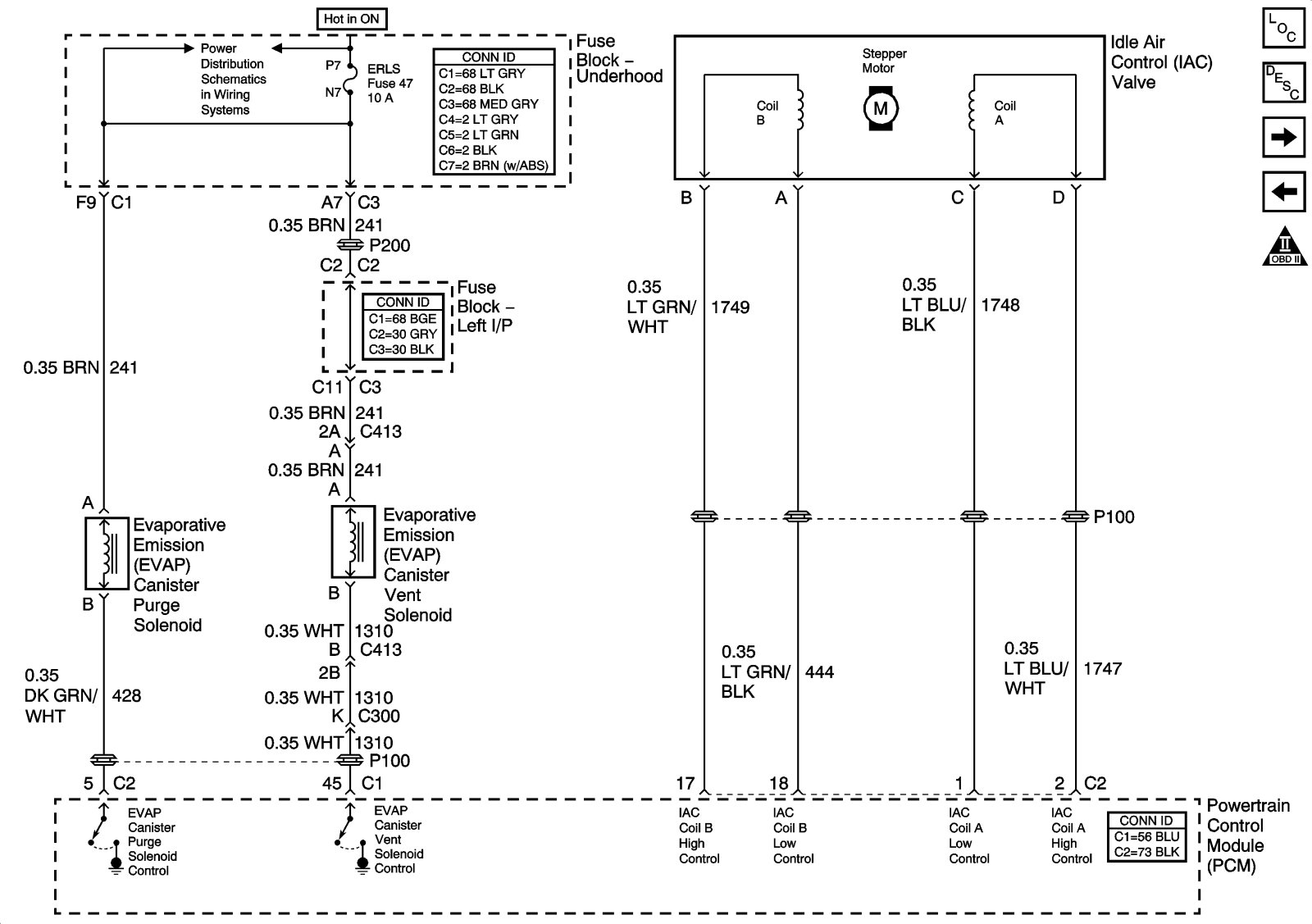

EVAP and IAC Controls

Engine Data Sensors– Pressure and Temperature

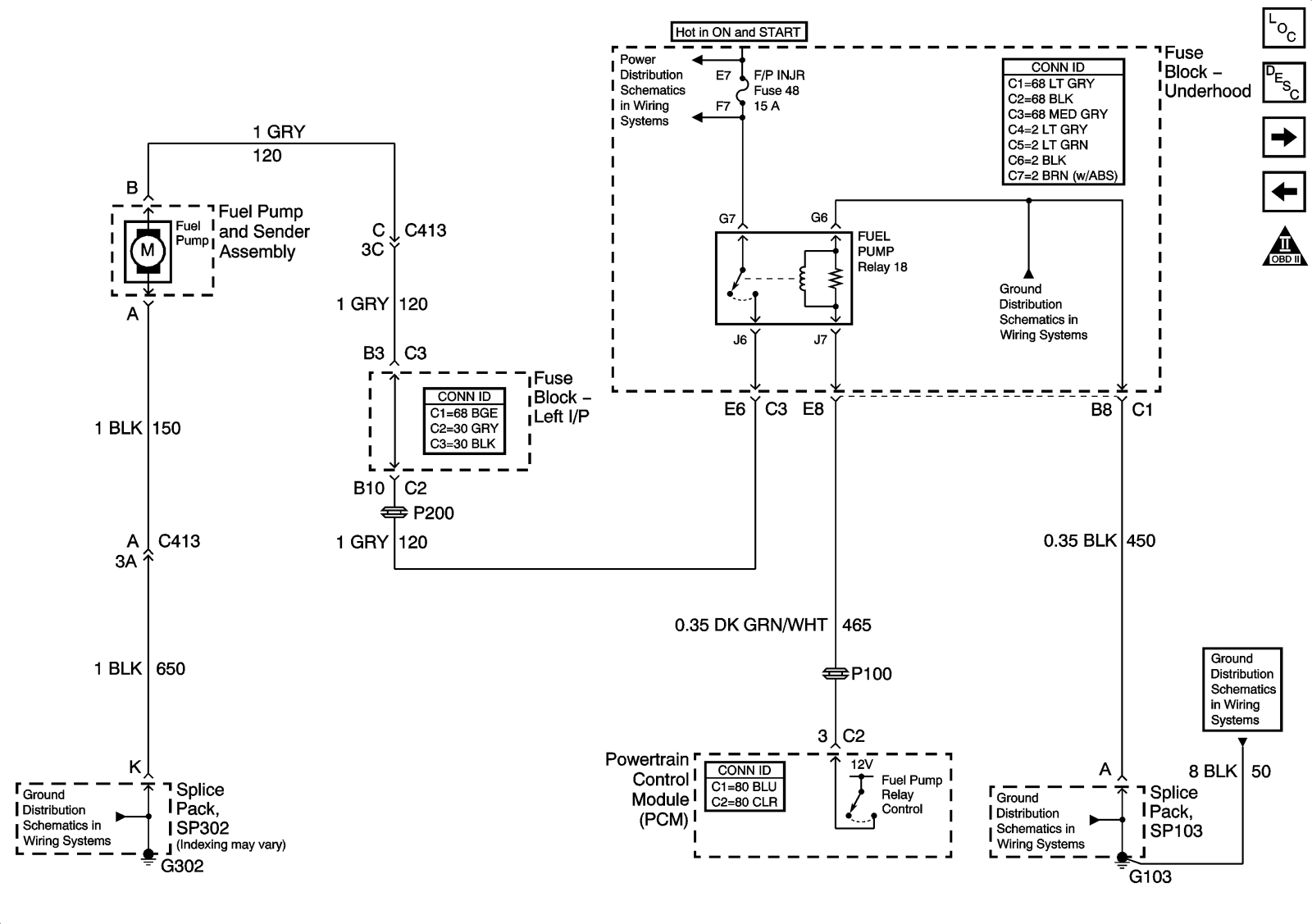

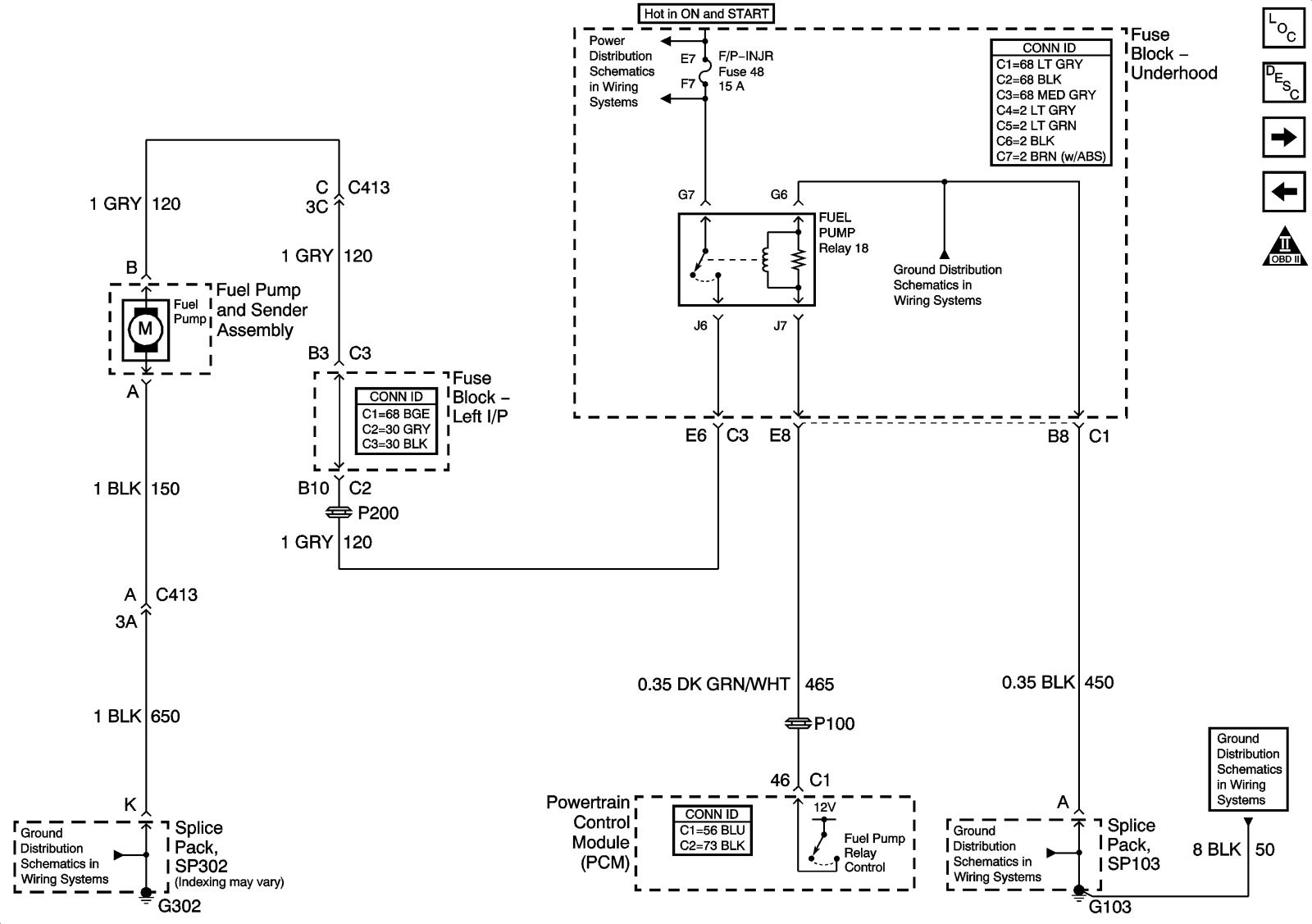

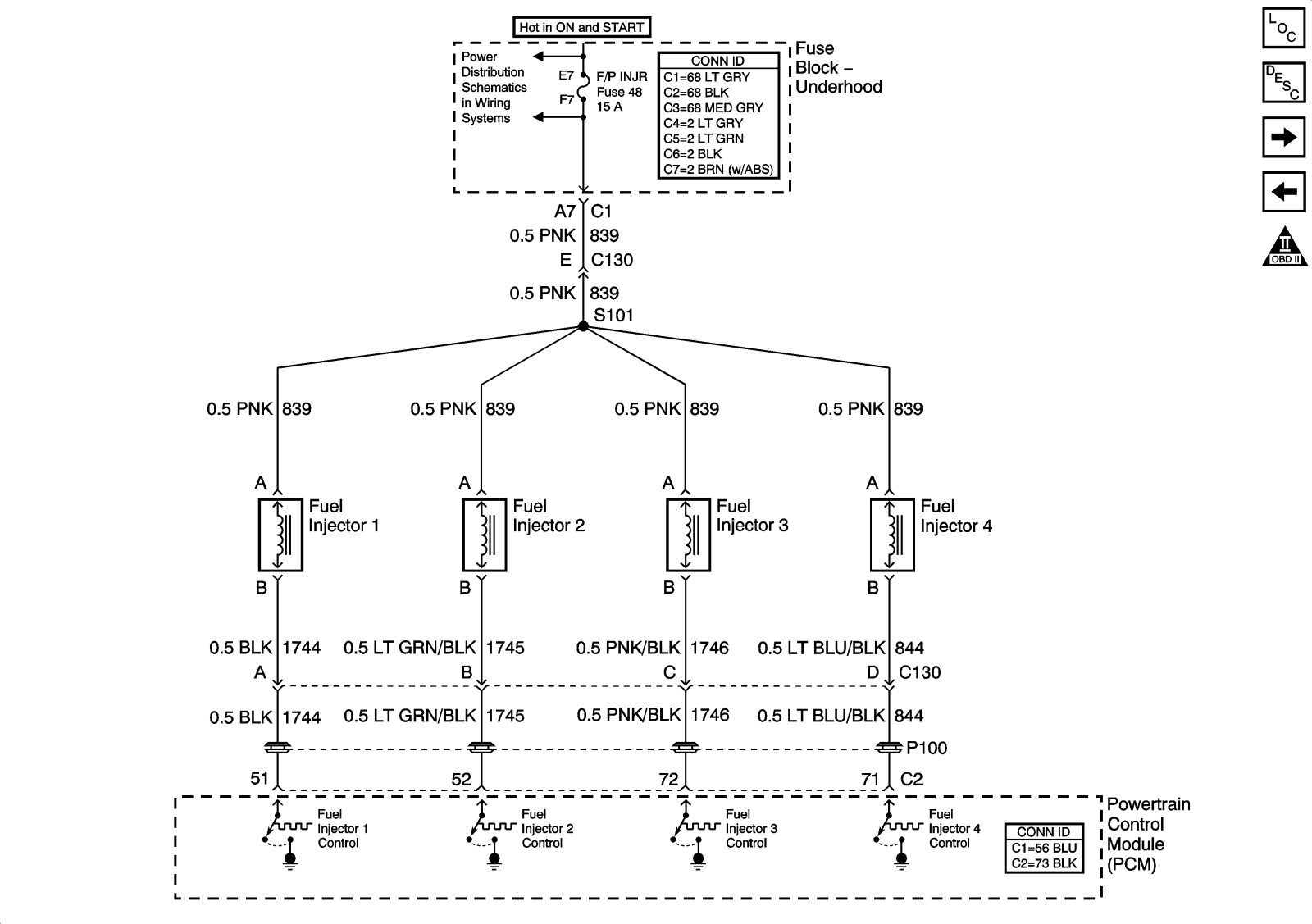

Fuel Pump Controls

Heated Oxygen Sensors

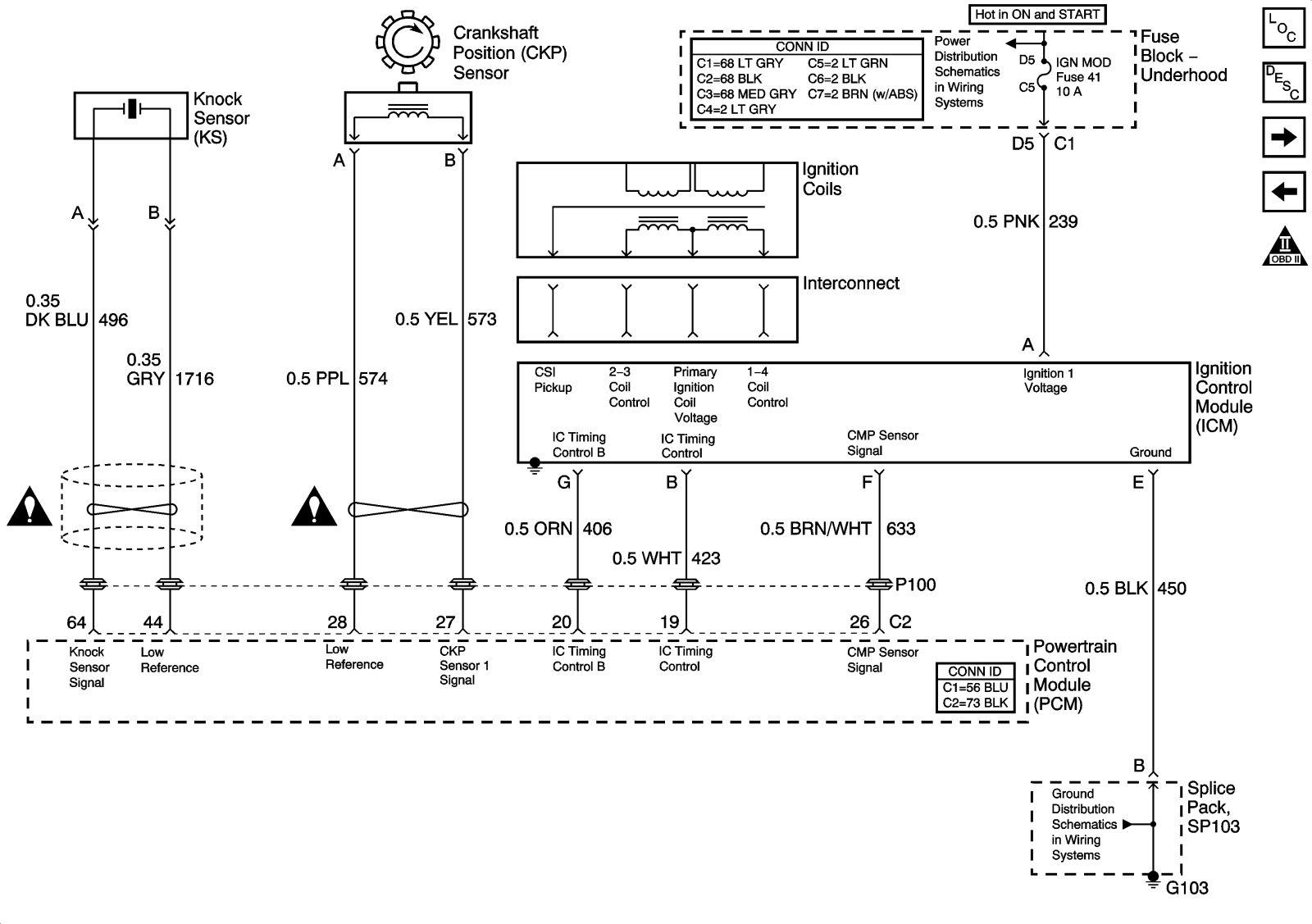

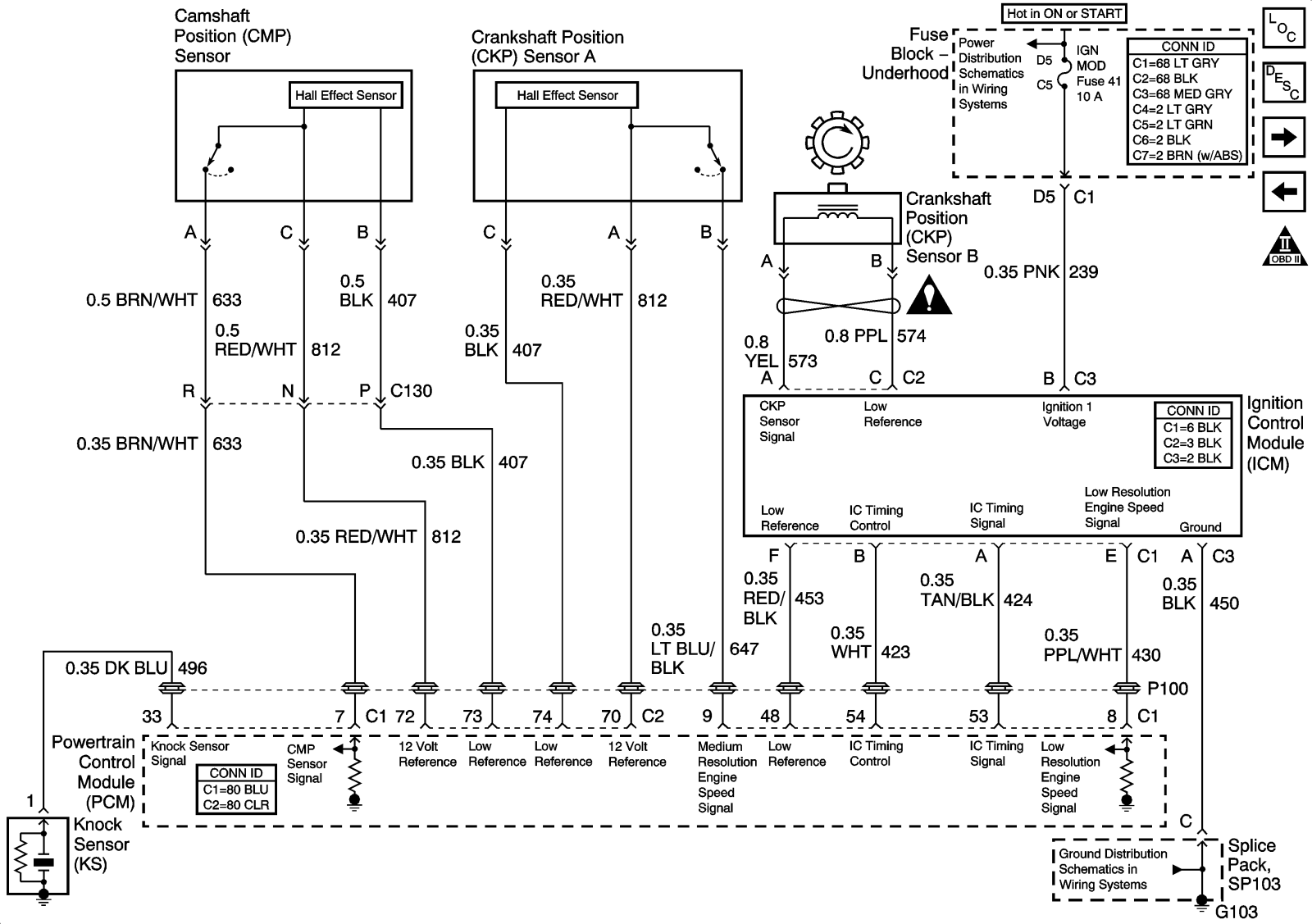

Ignition System

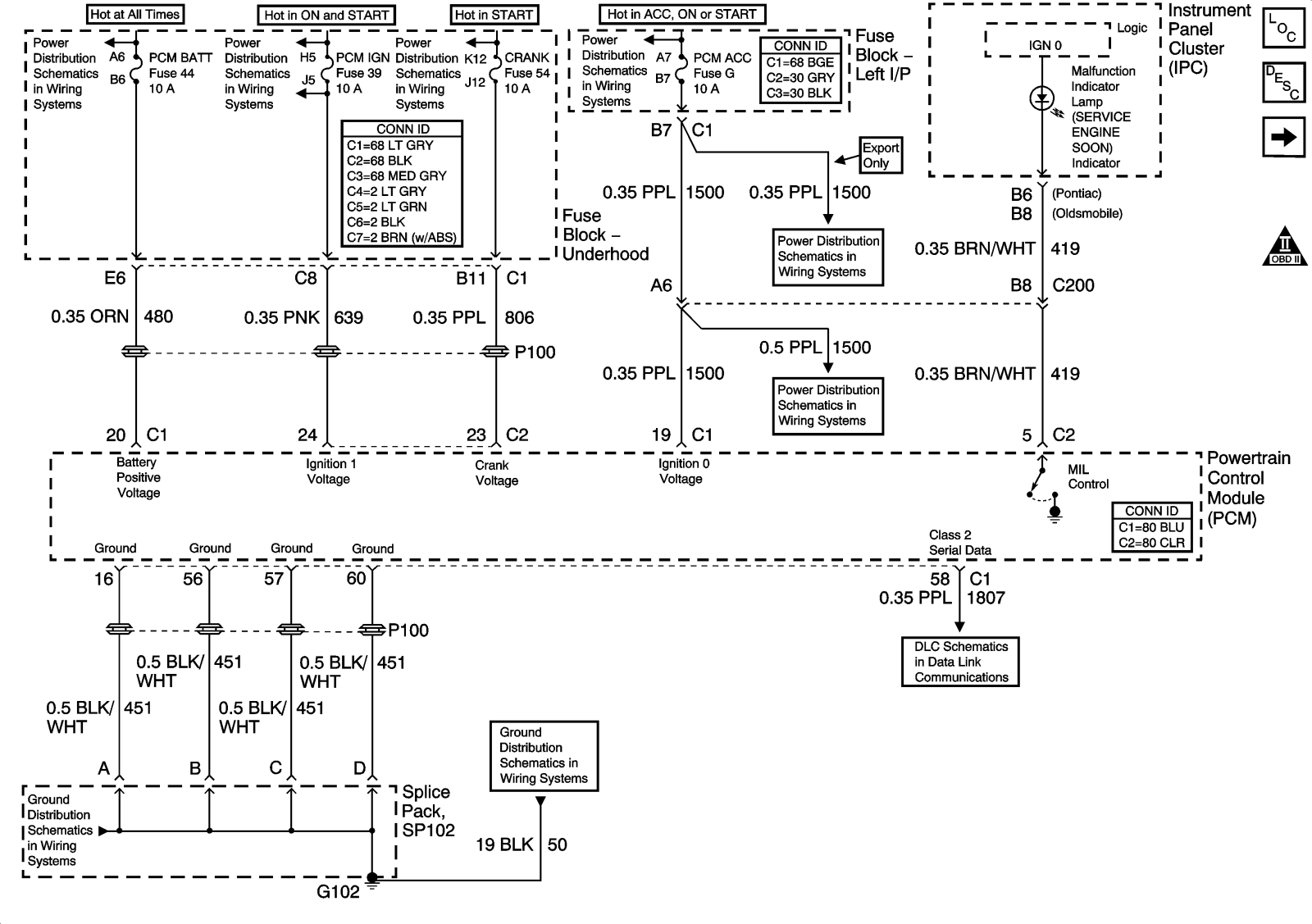

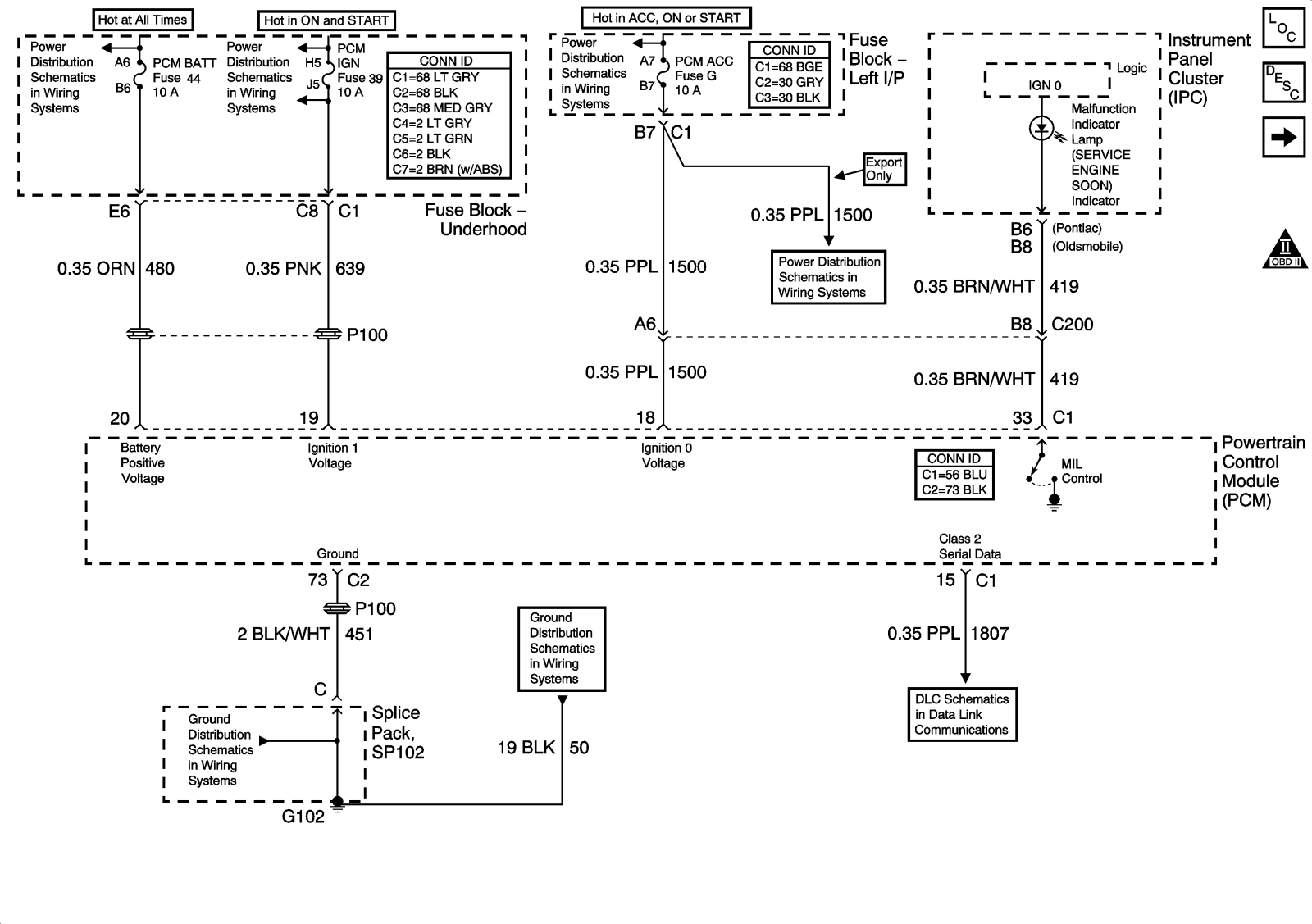

Power, Ground, Serial Data and MIL

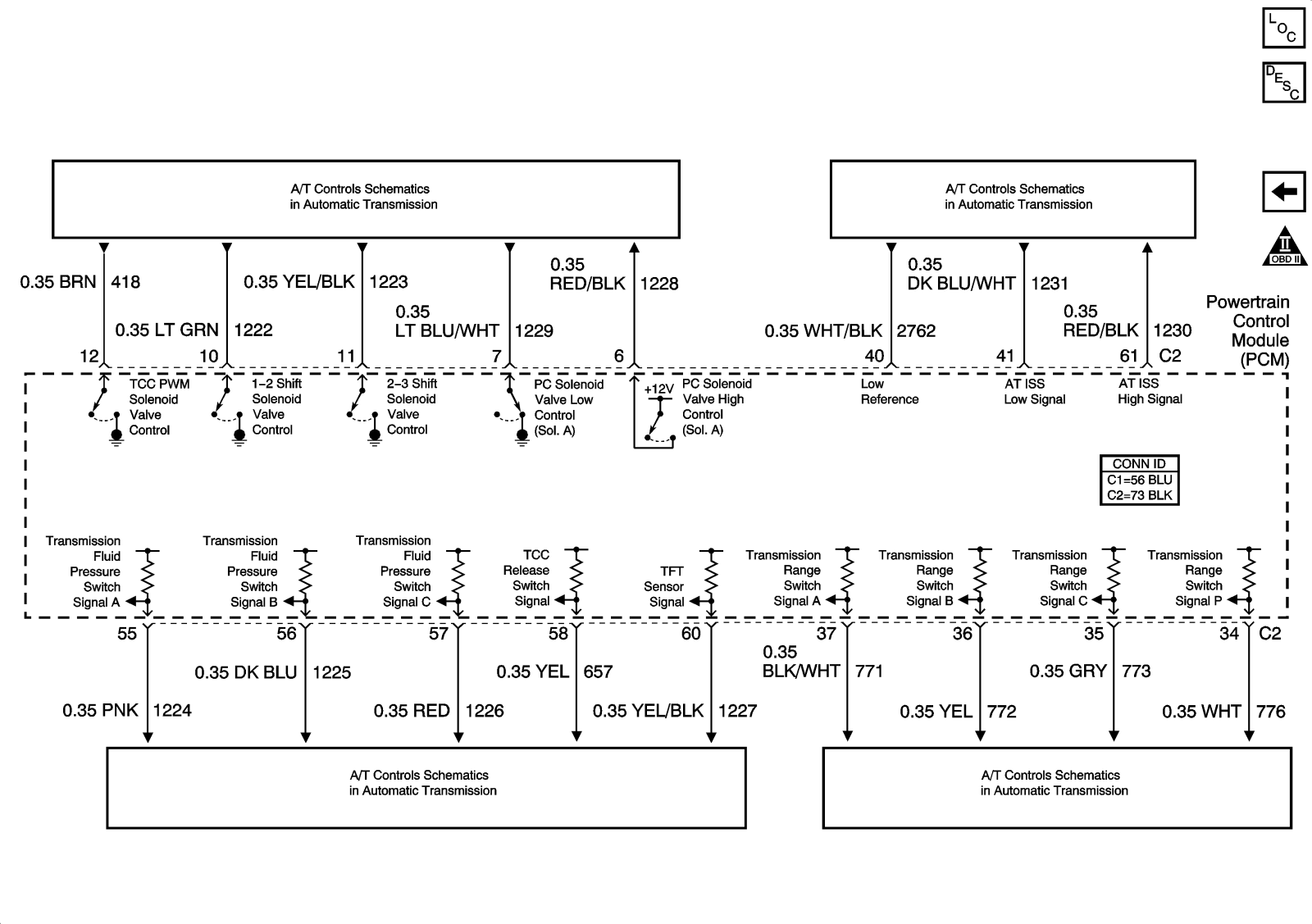

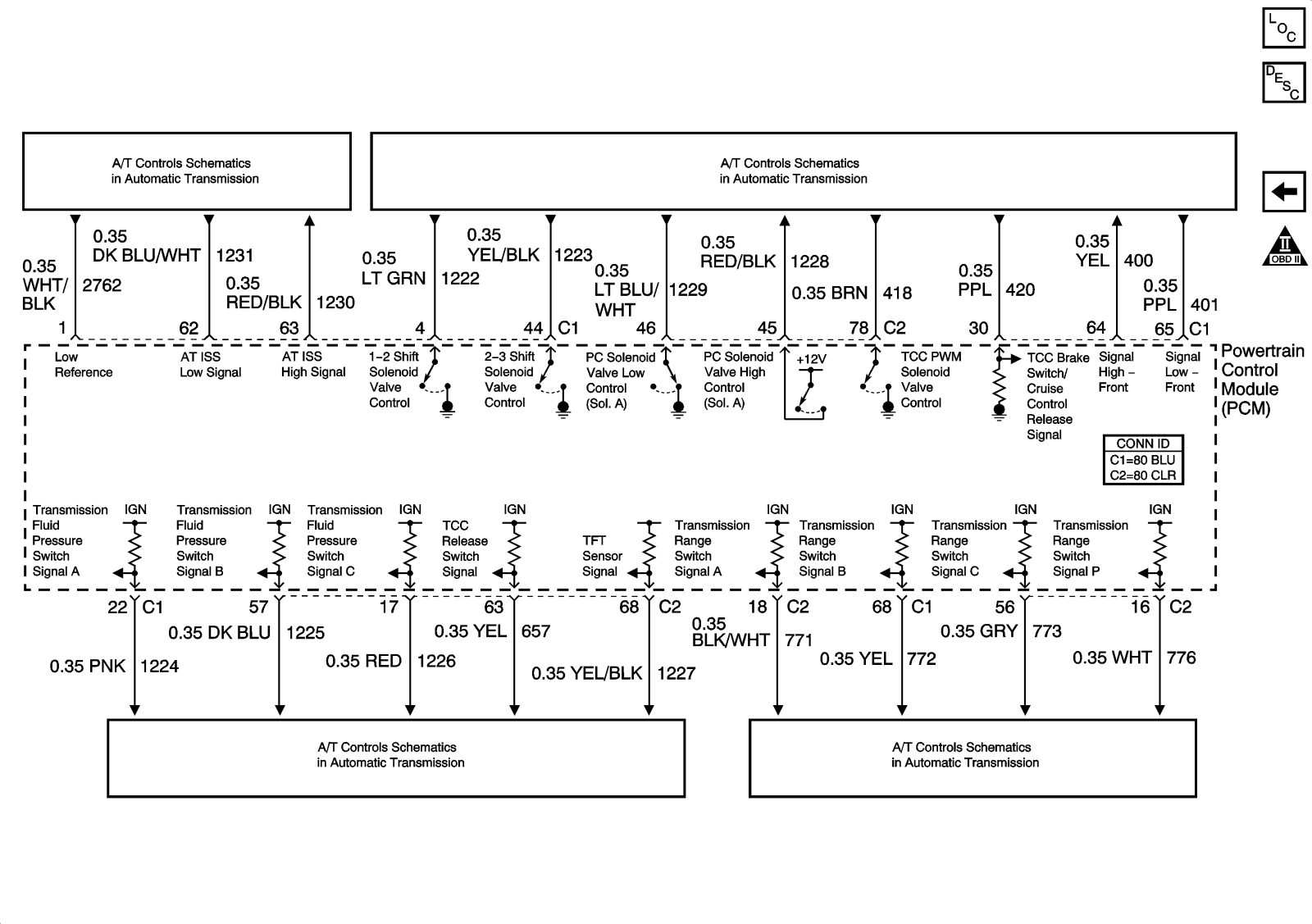

Transmission Controls– AT

Engine Controls 3.4L

5 Volt and Low Reference Bussing

Controlled-Monitored Subsystem References

Engine Data Sensors - Pressure and Temperature

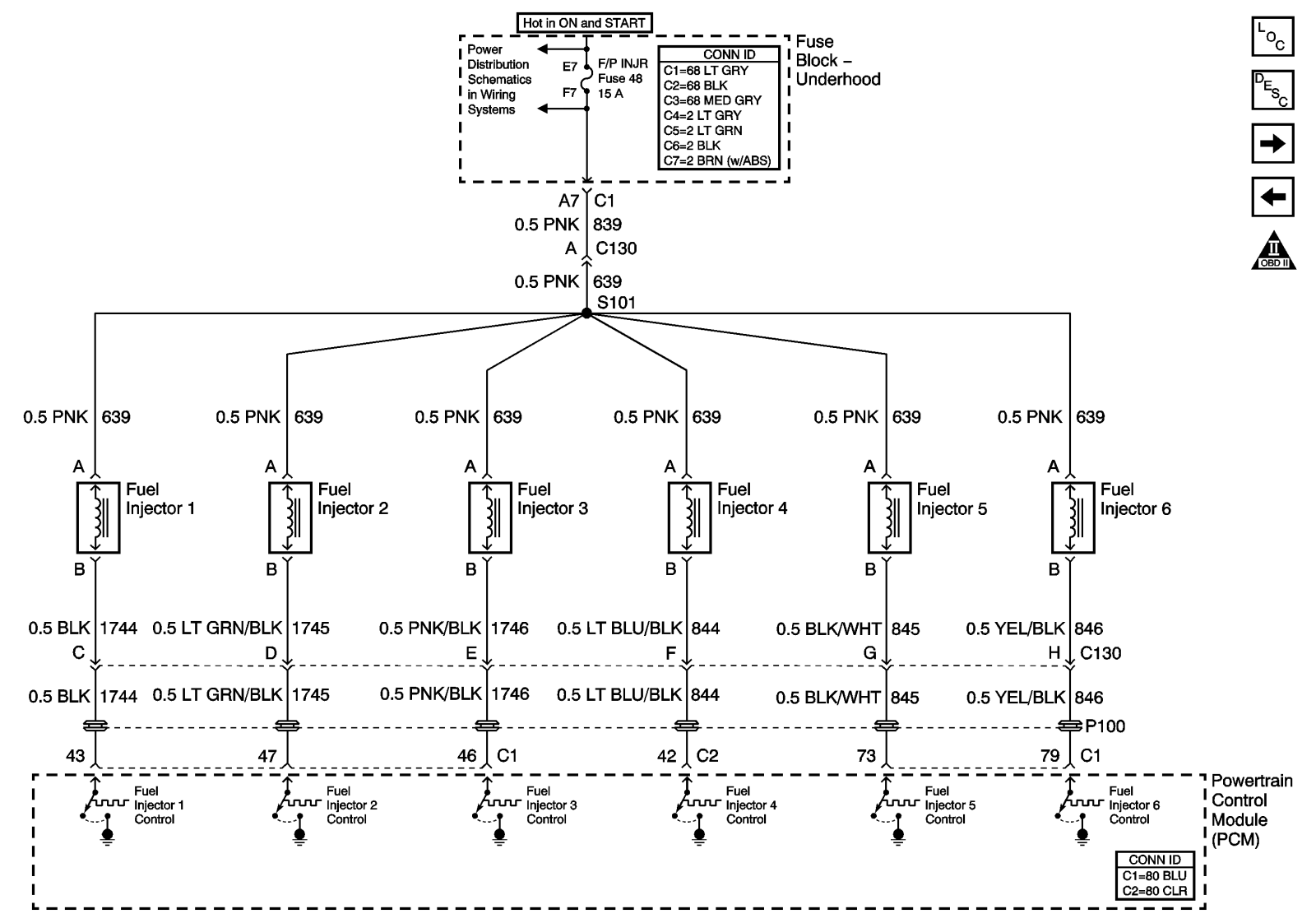

Fuel Pump Controls

Heated Oxygen Sensors

Ignition System

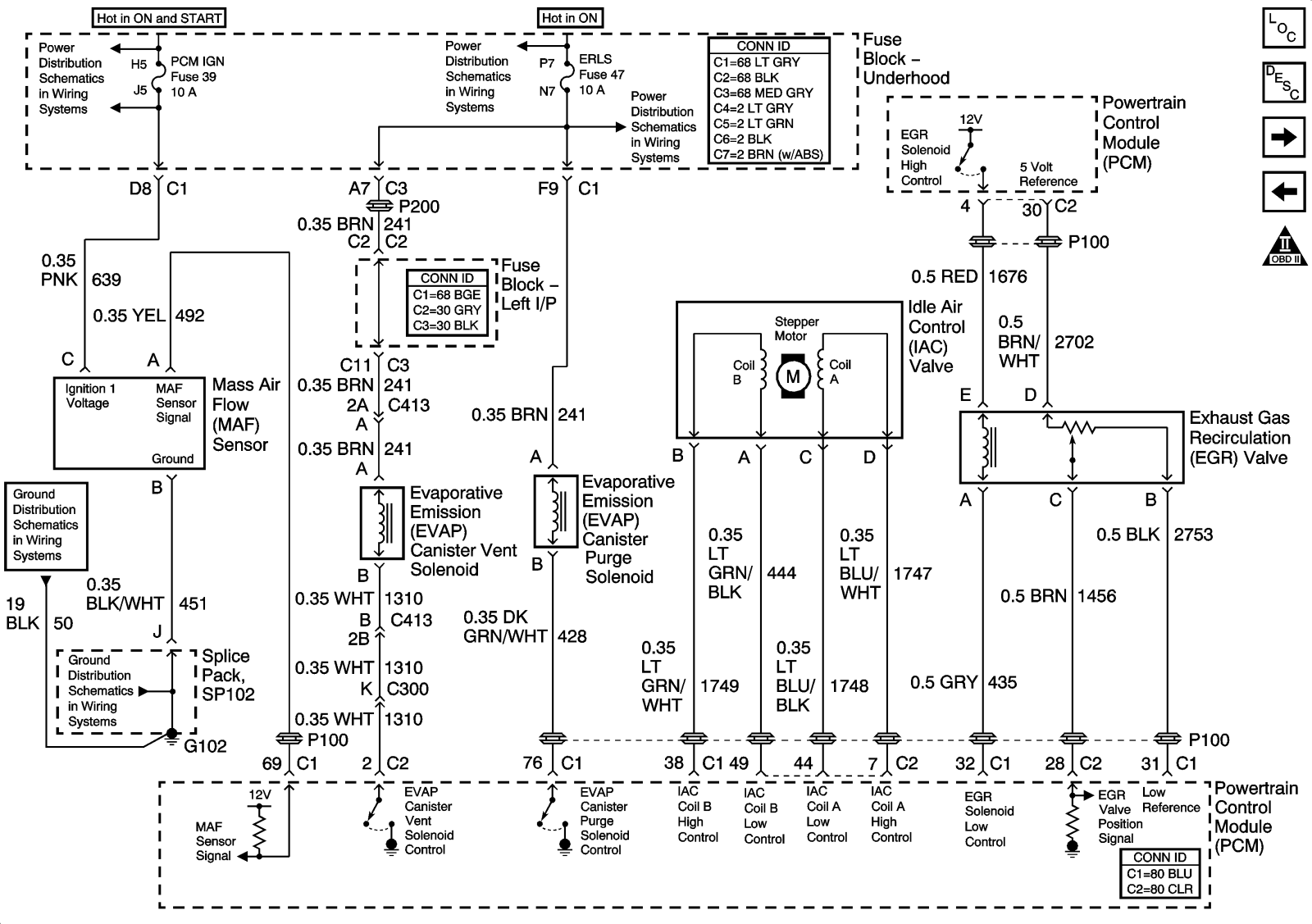

MAF, EVAP Controls, IAC, and EGR

Power, Ground, Serial Data and MIL

Transmission Controls - AT

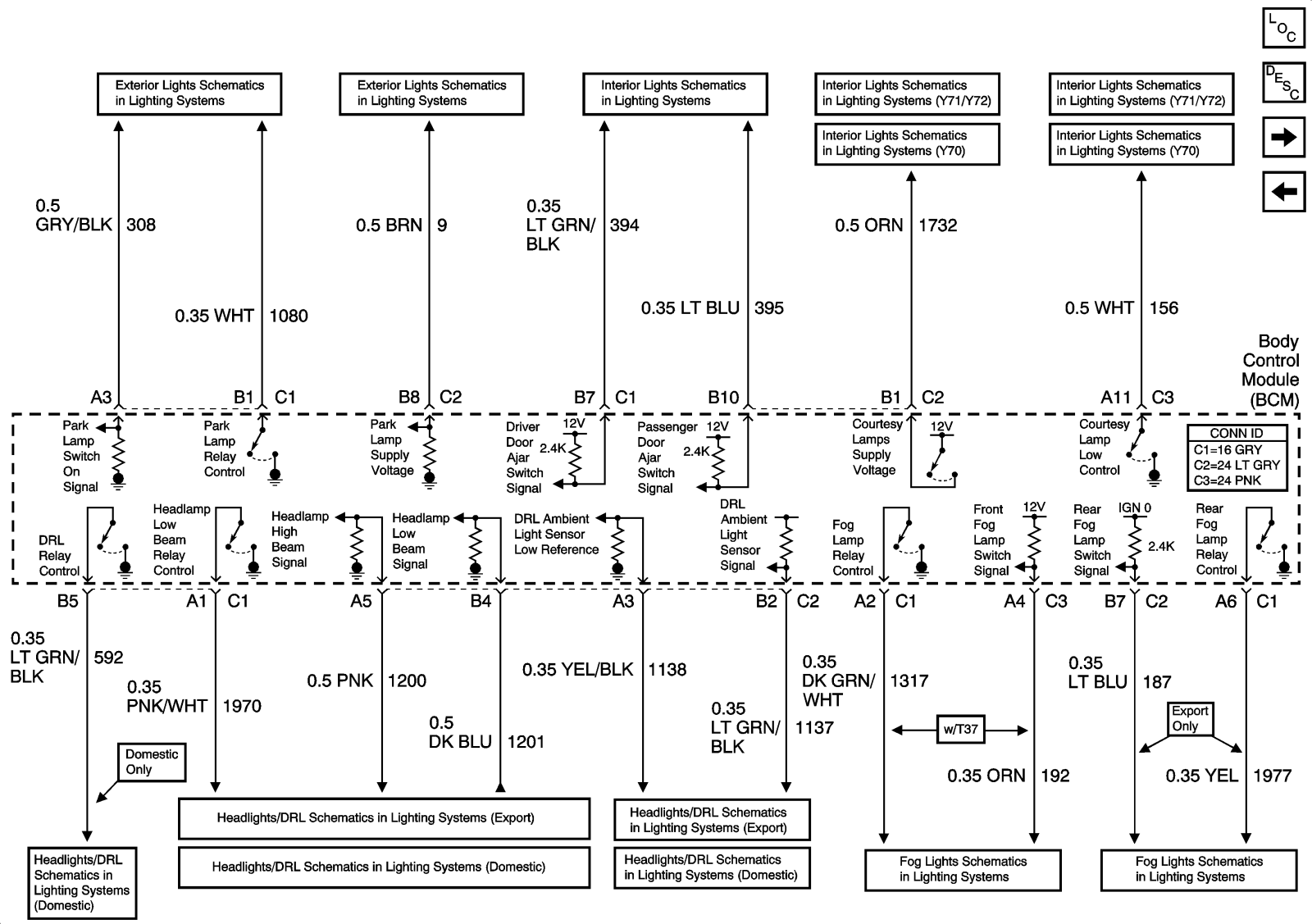

Controlled-Monitored Lighting References

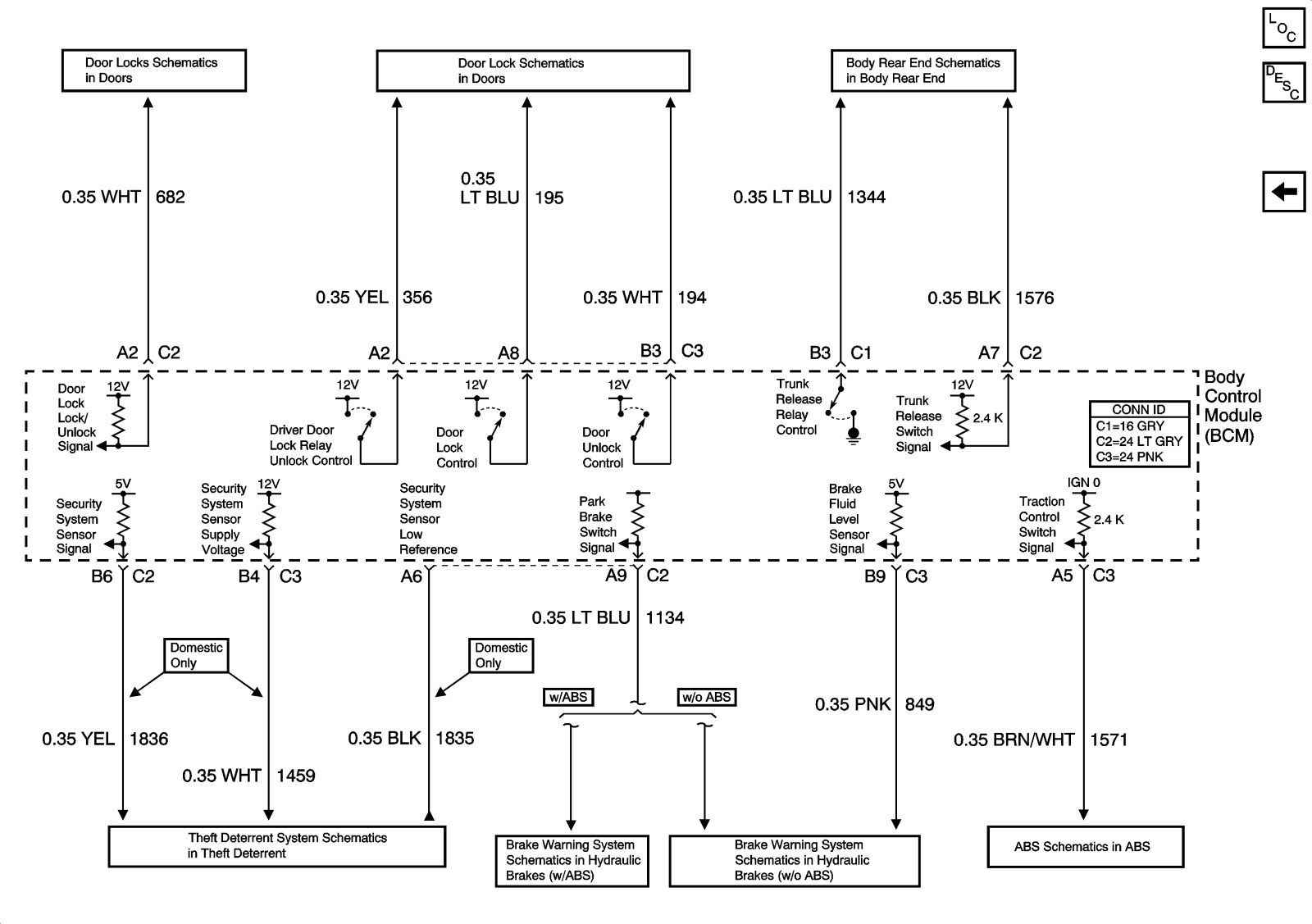

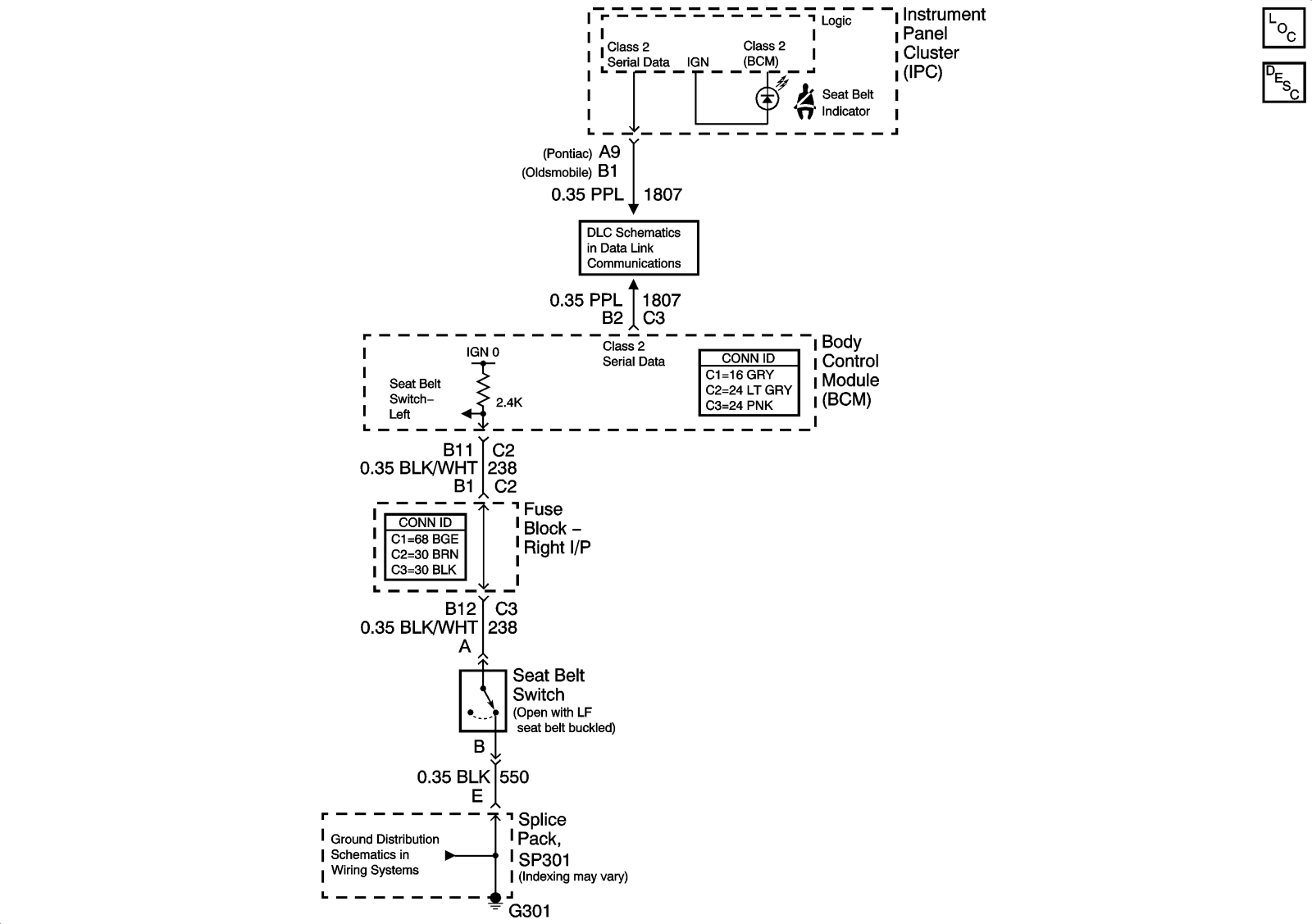

Controlled-Monitored Lock, Theft Deterrent, Brake References

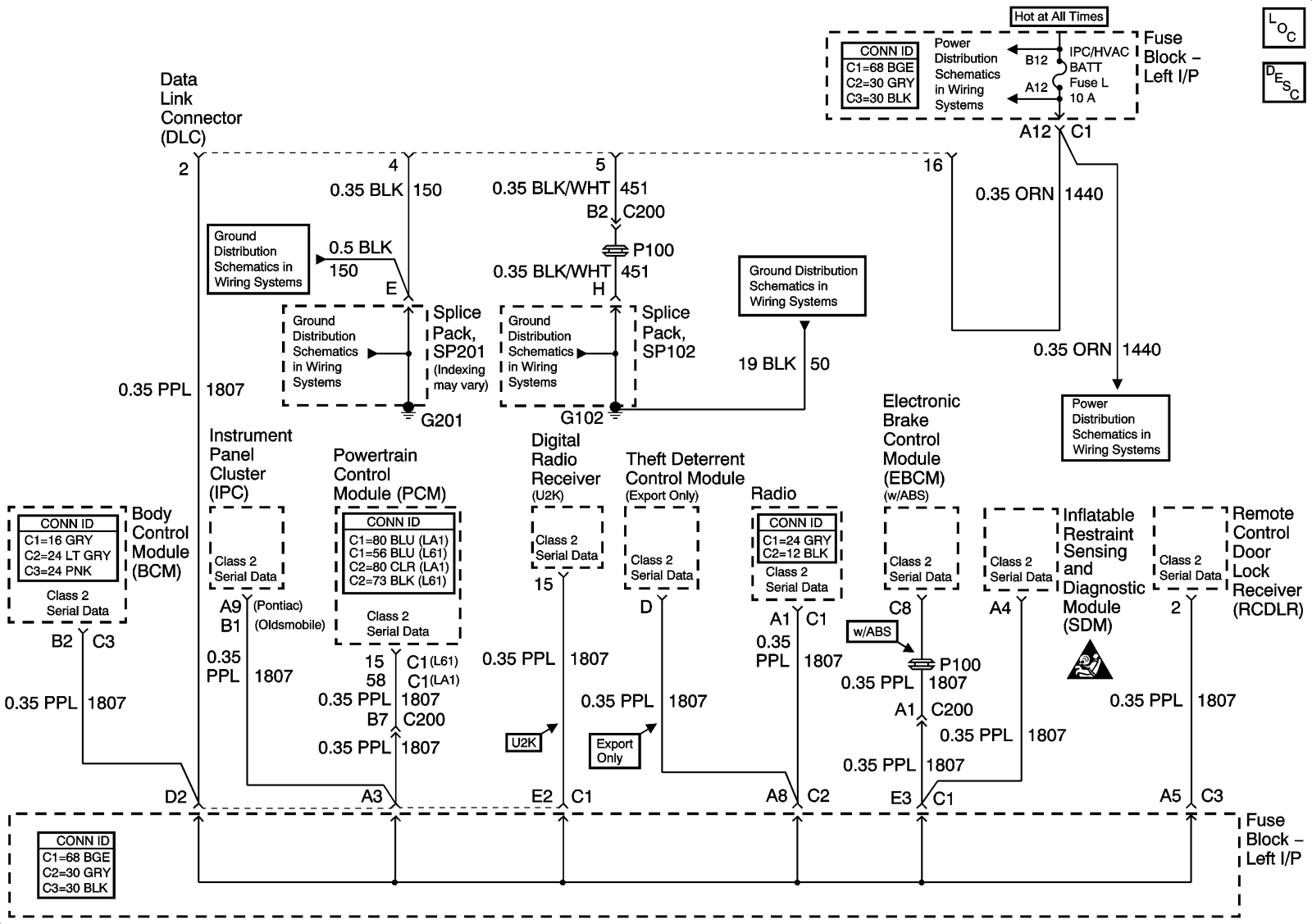

Data Link Connector Schematics

Fuel Level, Oil Level and Oil Pressure

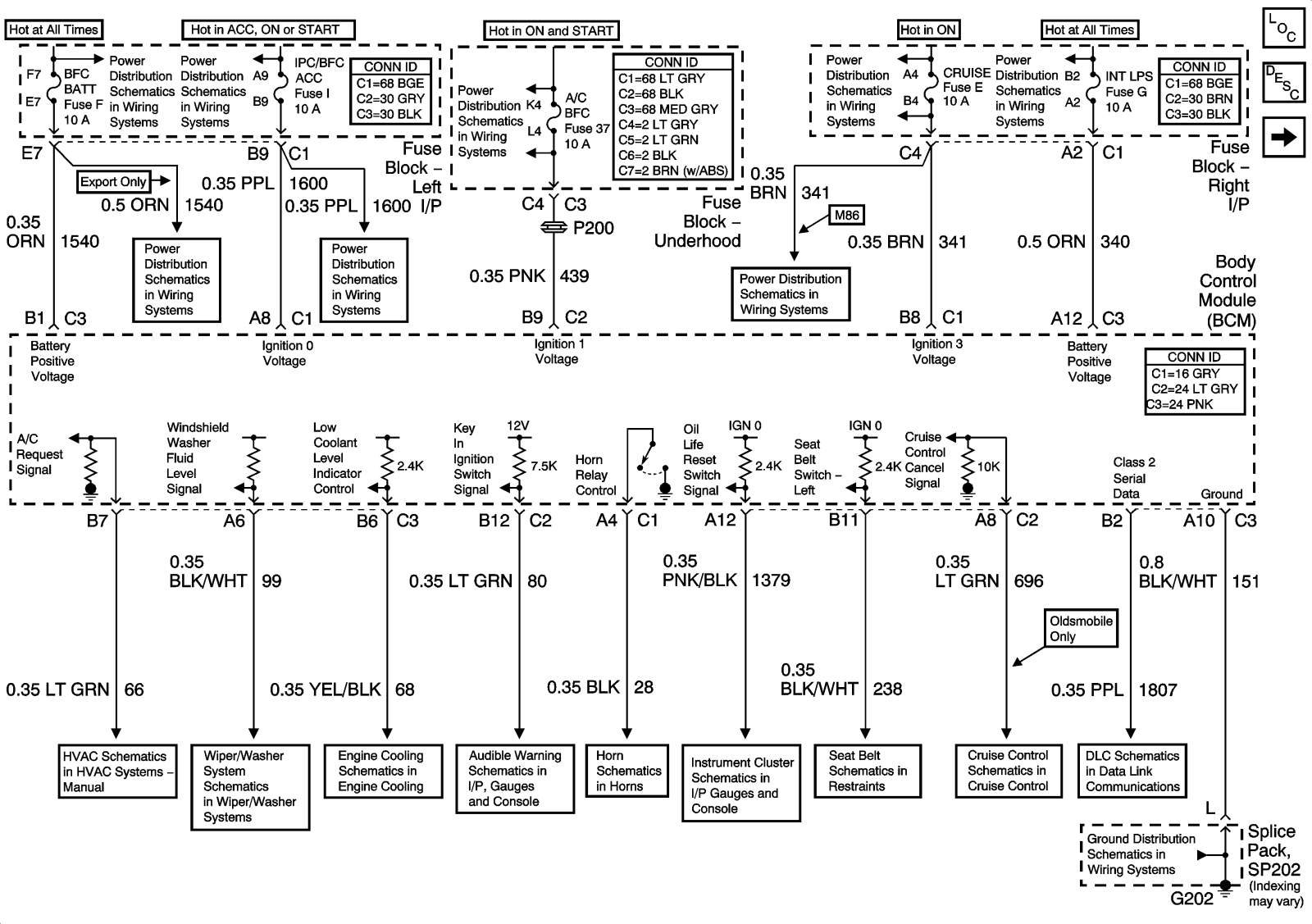

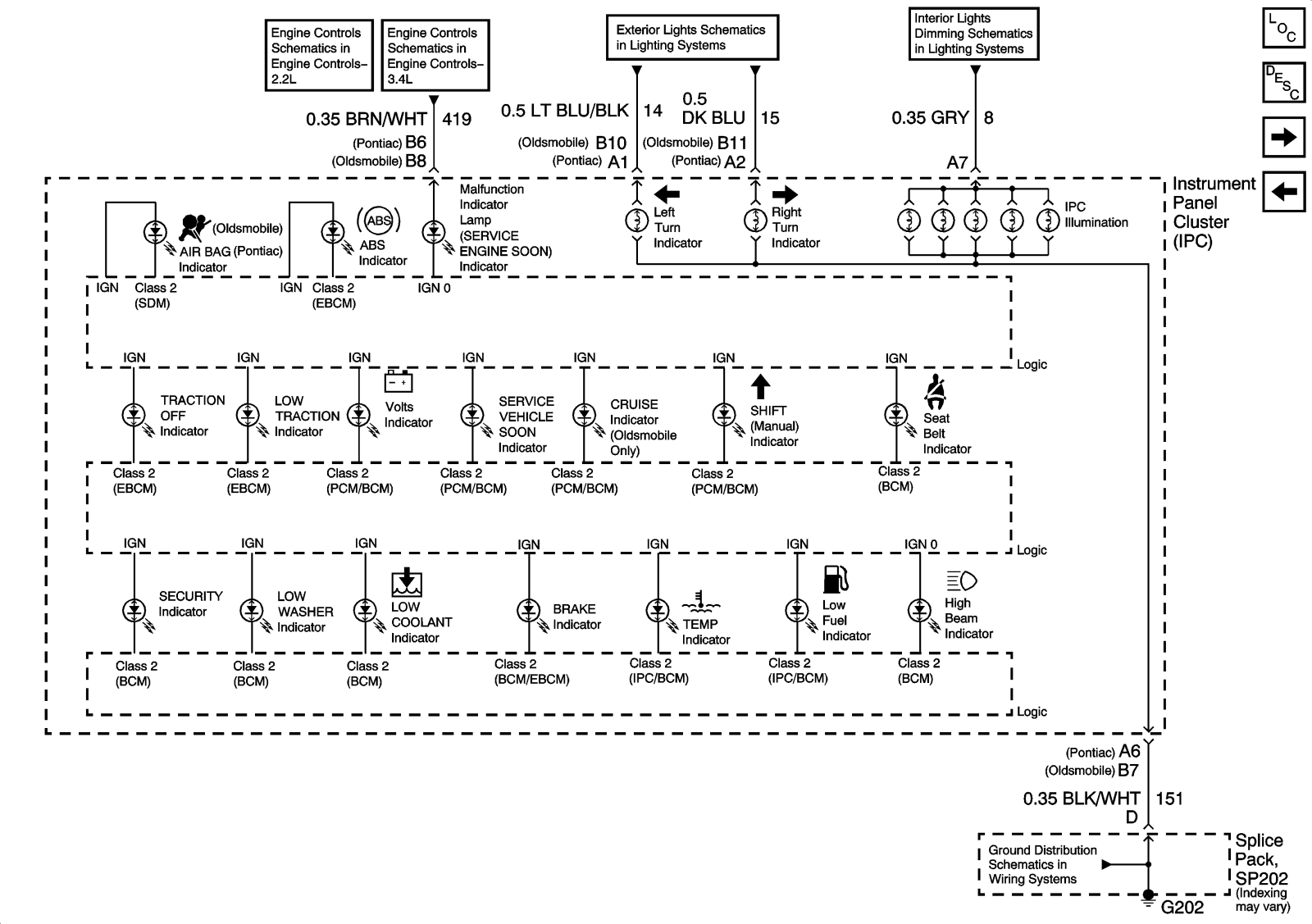

Power, Ground and Controlled-Monitored References

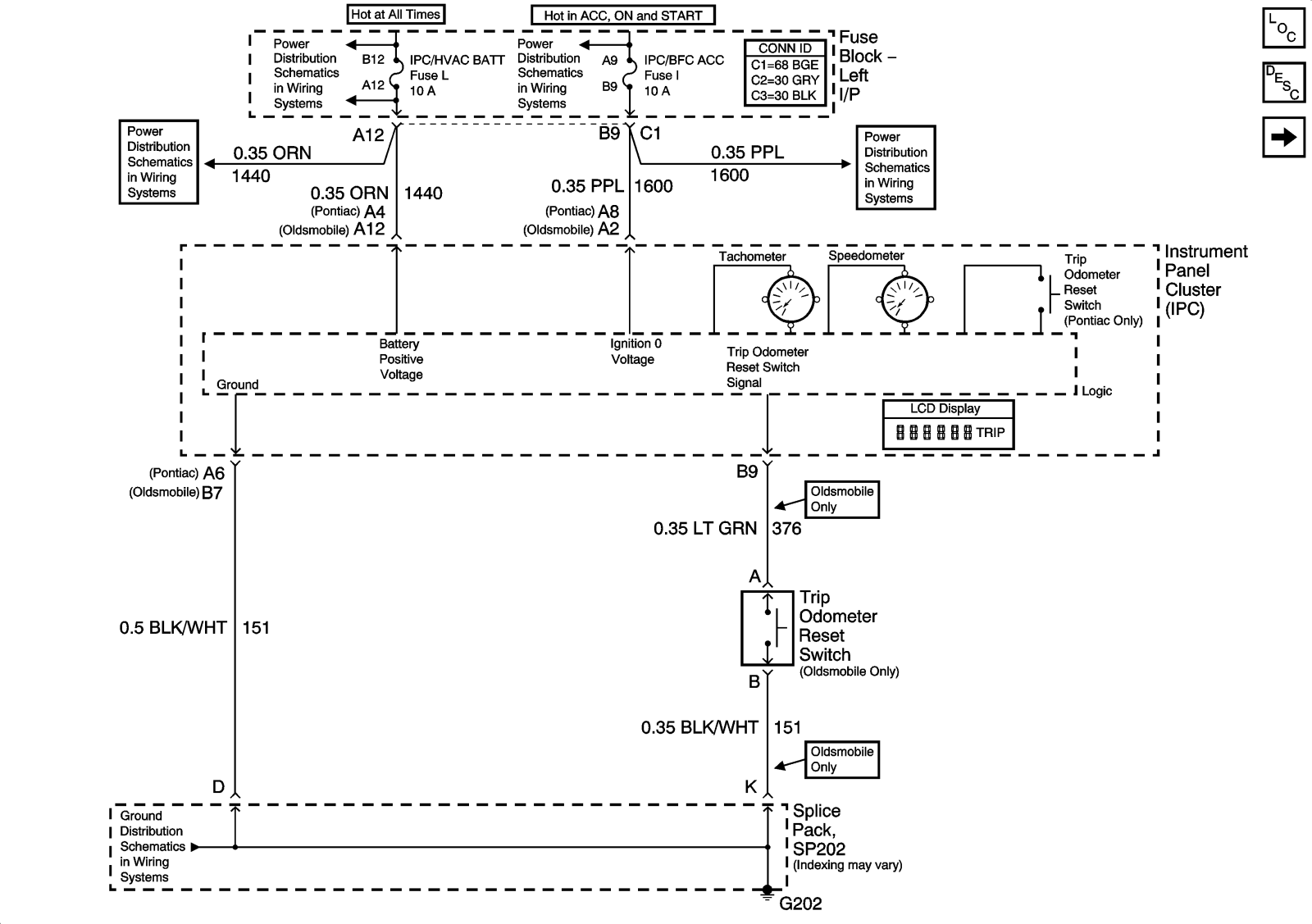

Power, Ground, Tachometer, Speedometer and Odometer

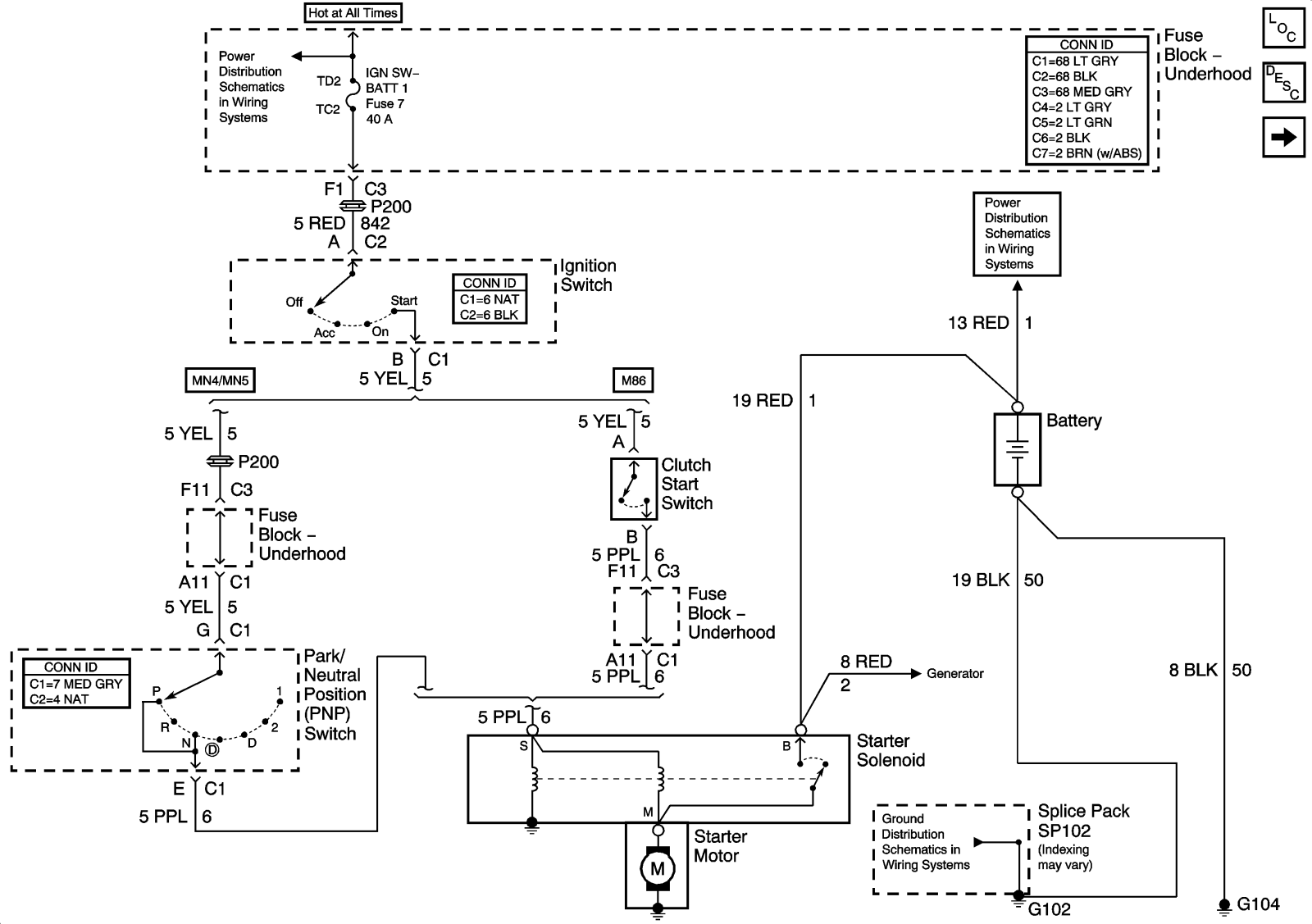

Starting System L61

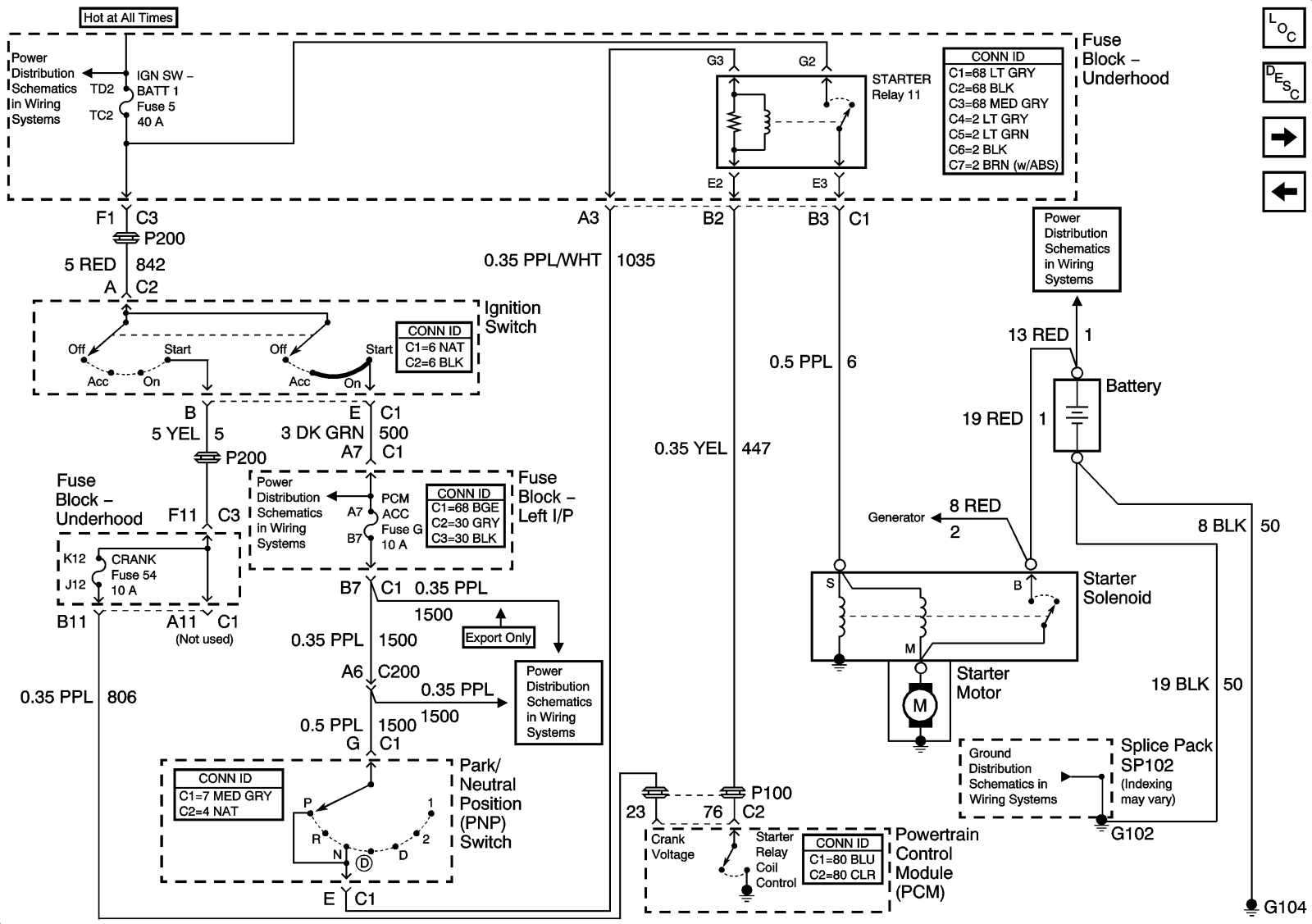

Starting System LA1

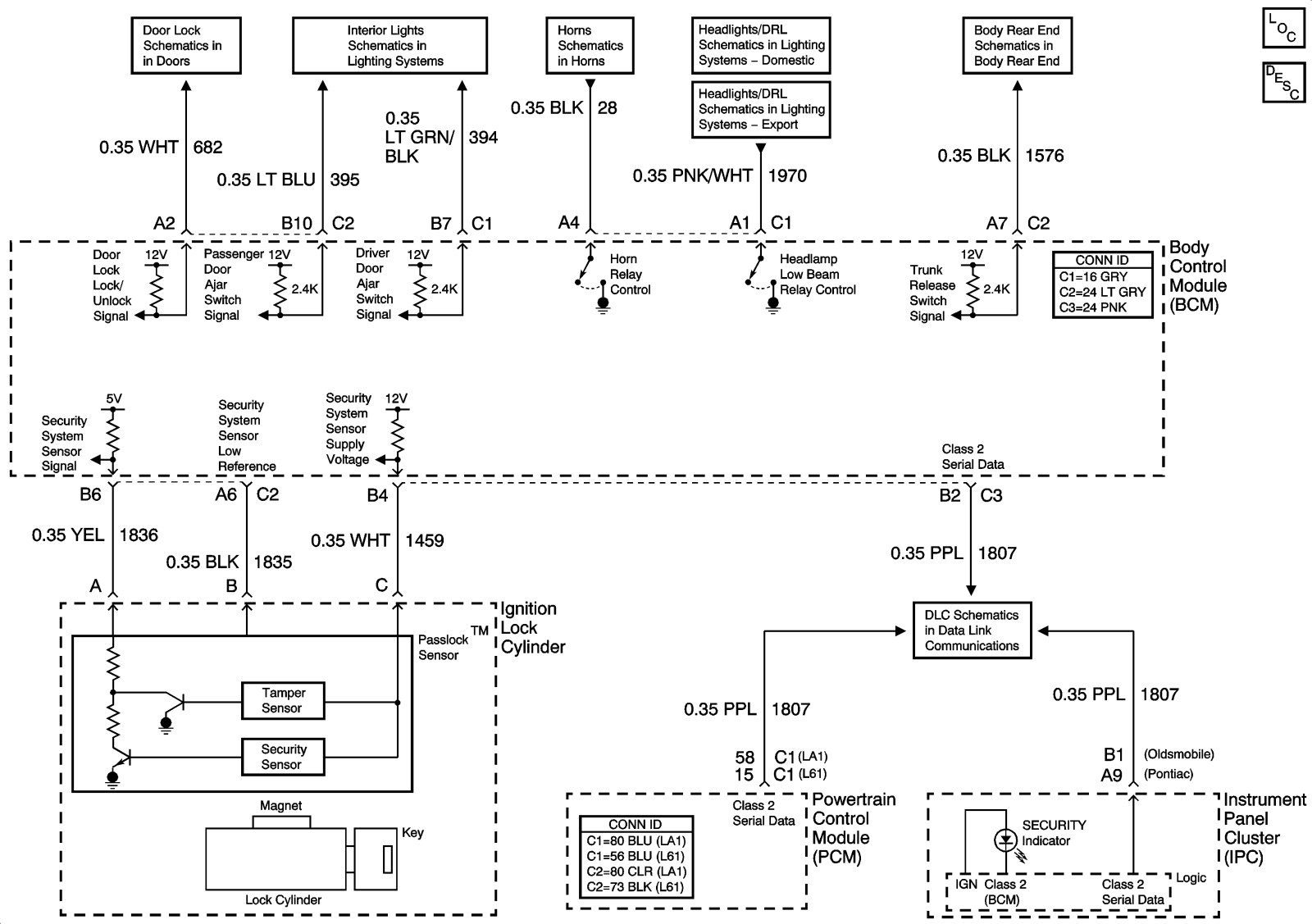

Theft Deterrent System
