Ford F250 2009 wiring diagrams
Parent Category:
Wiring Diagrams
Category:
Ford, Lincoln, Mercury
wiring
schematics
ford
diagrams
F series
F250
Super Duty
Cluster and Panel Illumination 1-1
Cluster and Panel Illumination 2-1
Cluster and Panel Illumination 3-1
Cluster and Panel Illumination 4-1
Airbag 1-1
Airbag 2-1
Auto climate control (1)-1
Auto climate control (2)-1
Auto climate control (3)-1
Auto climate control (4)-1
Auto climate control (5)-1
Auto climate control (6)-1
Charging (1)-1

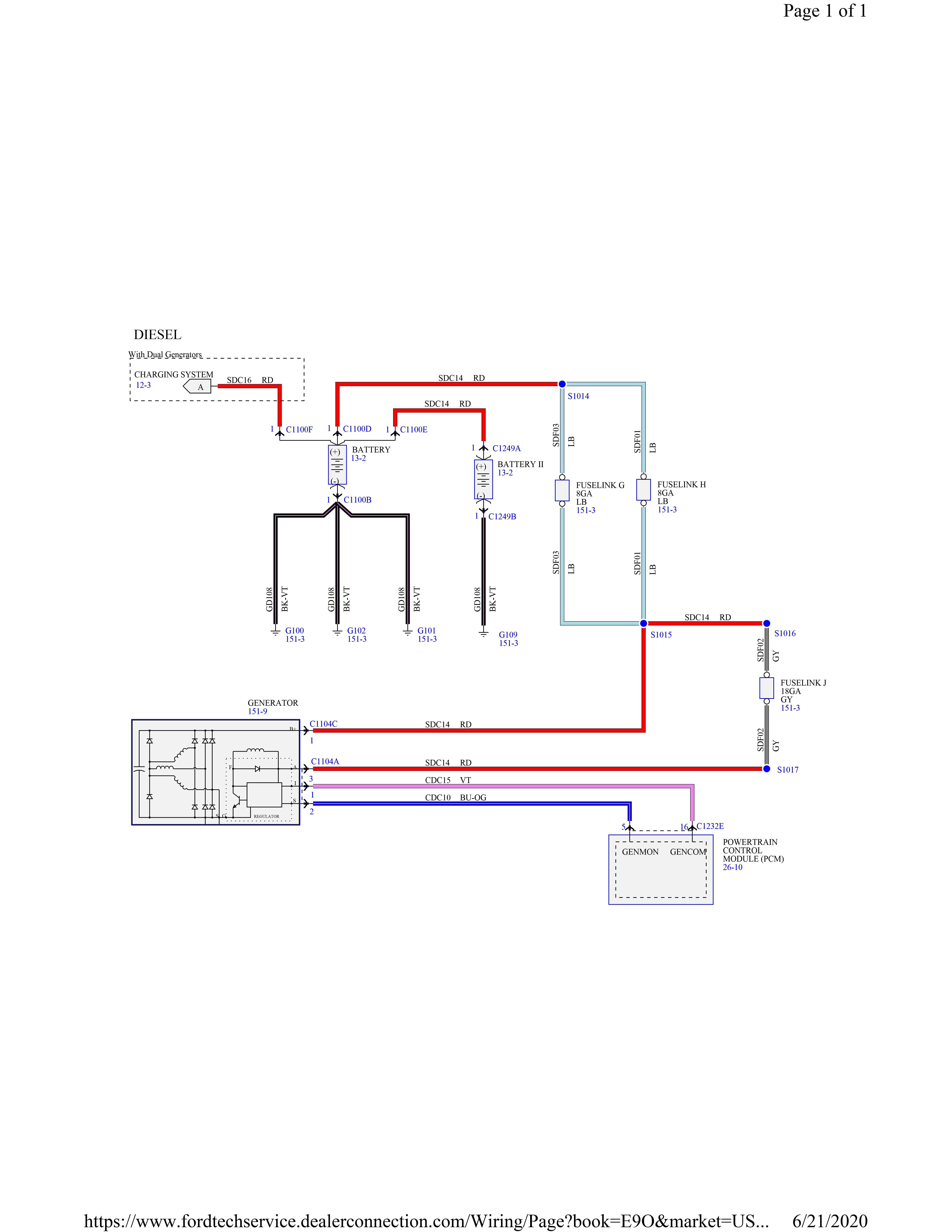

Charging (2)-1

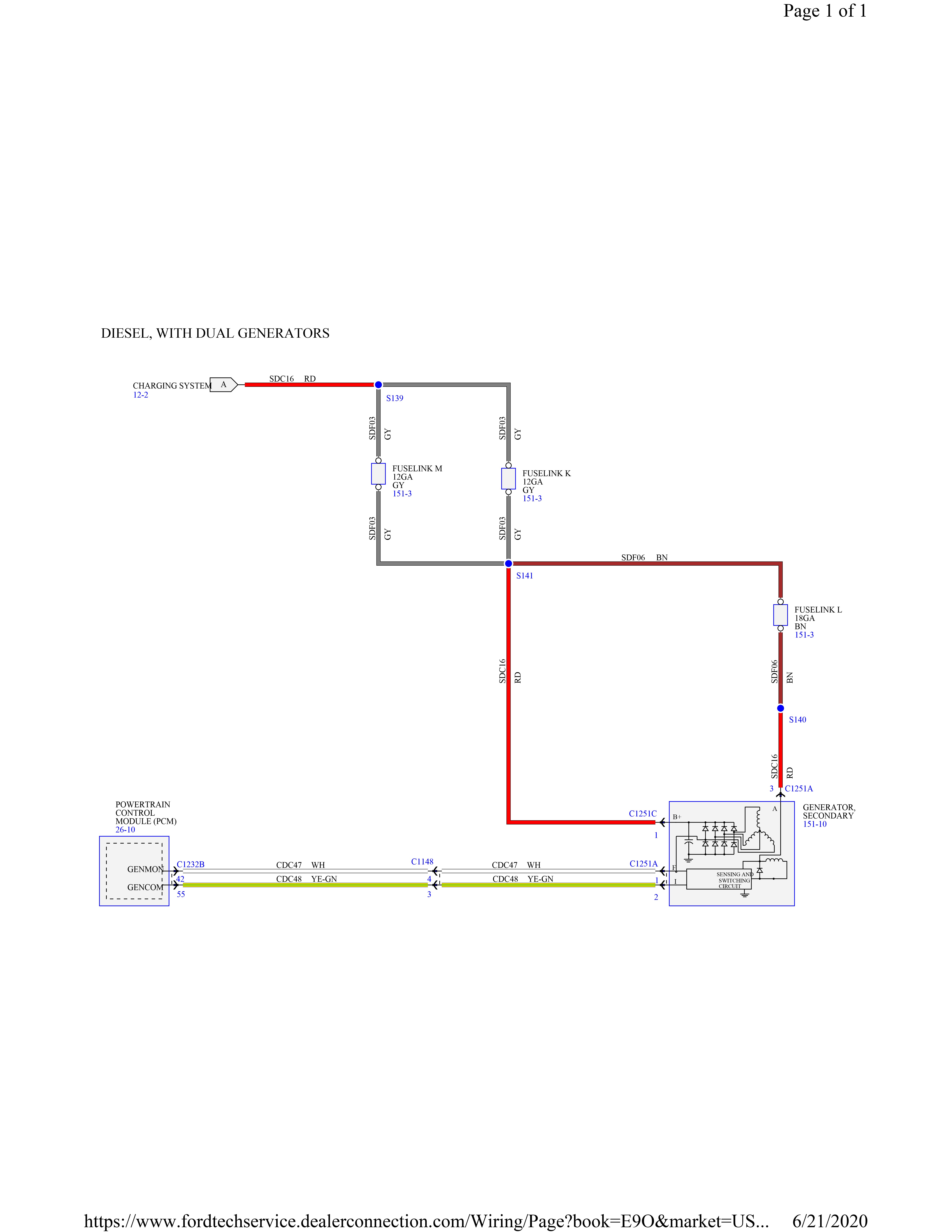

Charging (3)-1
Communication networks-1-1
Communication networks-2-1
Communication networks-3-1
Cooling fan-1
Engine controls 5.4l 1-1
Engine controls 5.4l 10-1
Engine controls 5.4l 11-1
Engine controls 5.4l 2-1

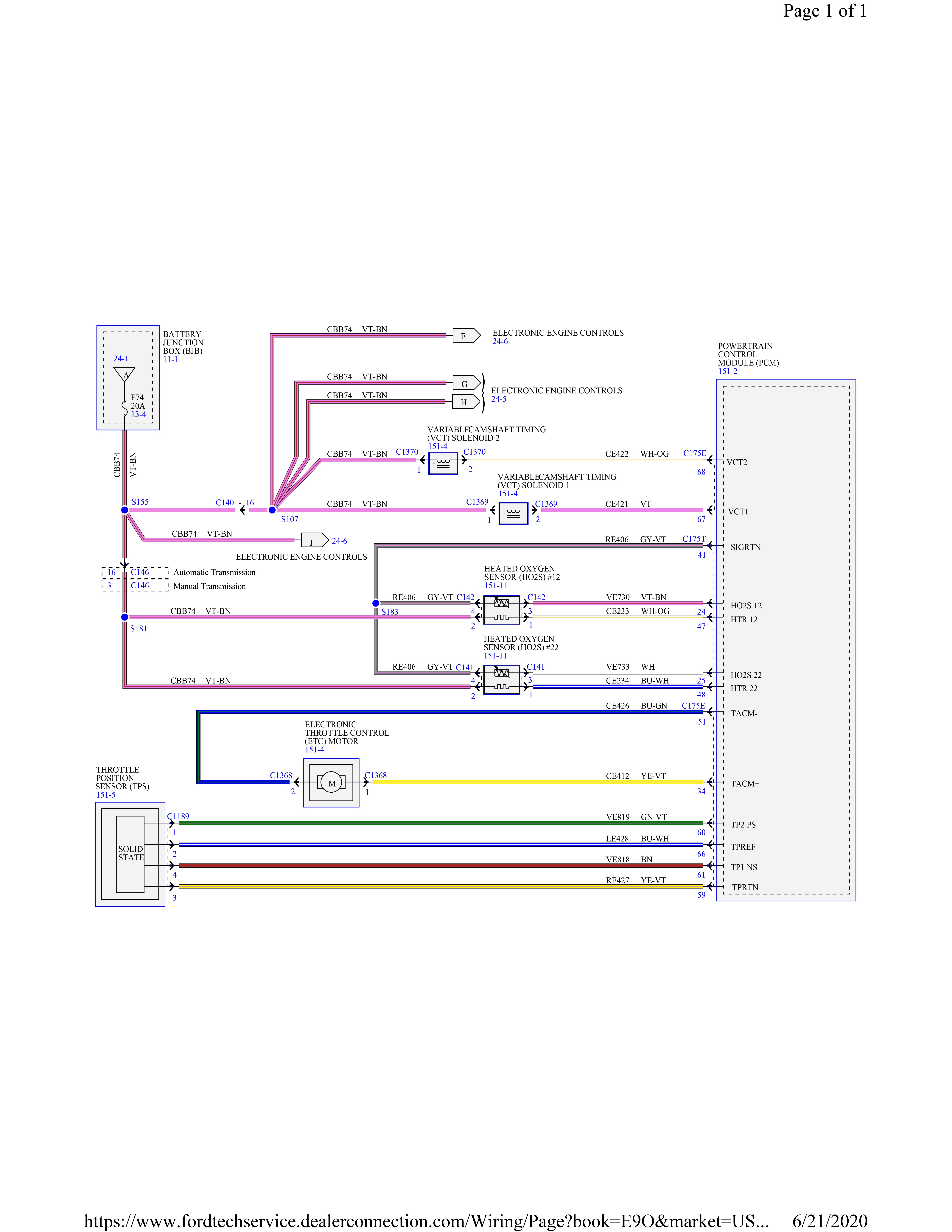

Engine controls 5.4l 3-1

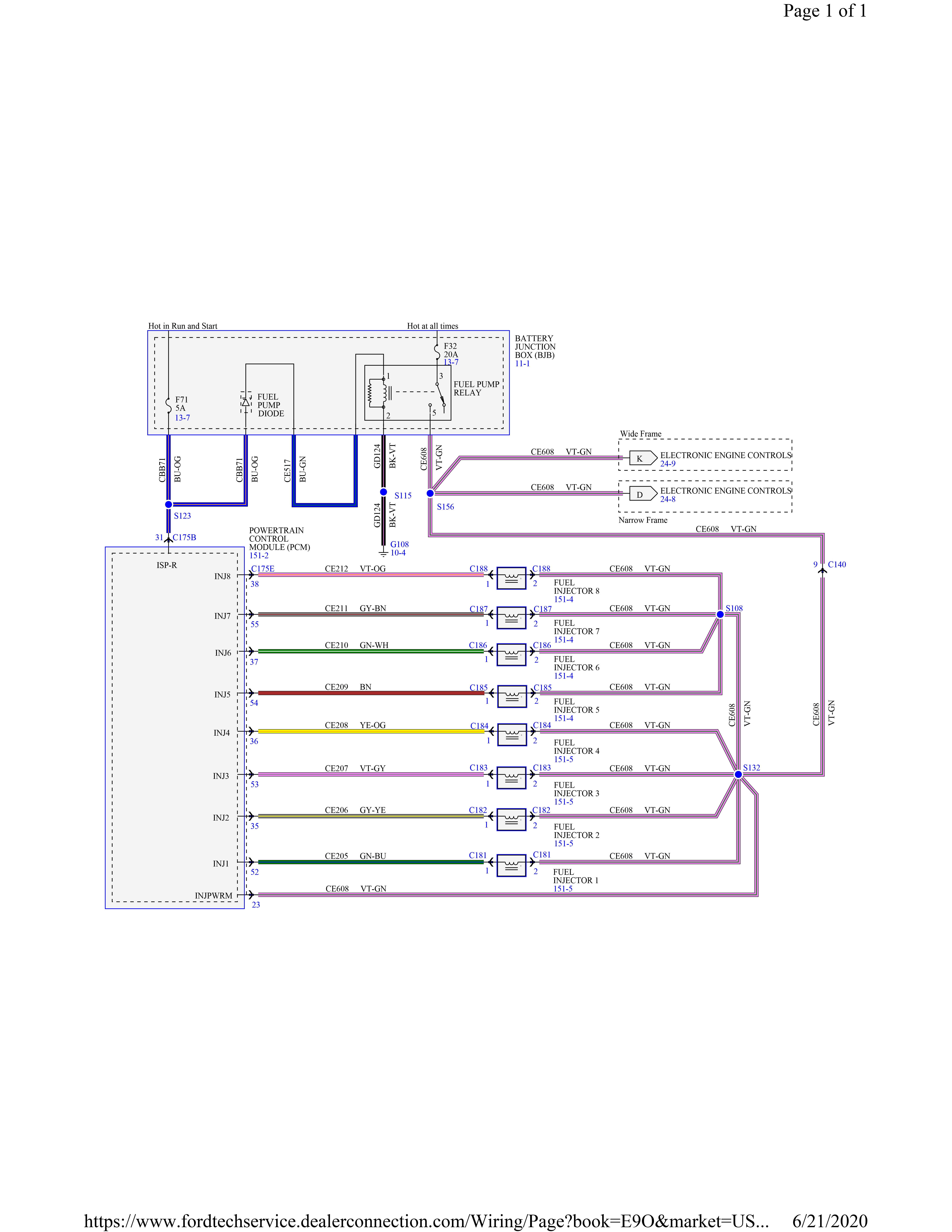

Engine controls 5.4l 4-1

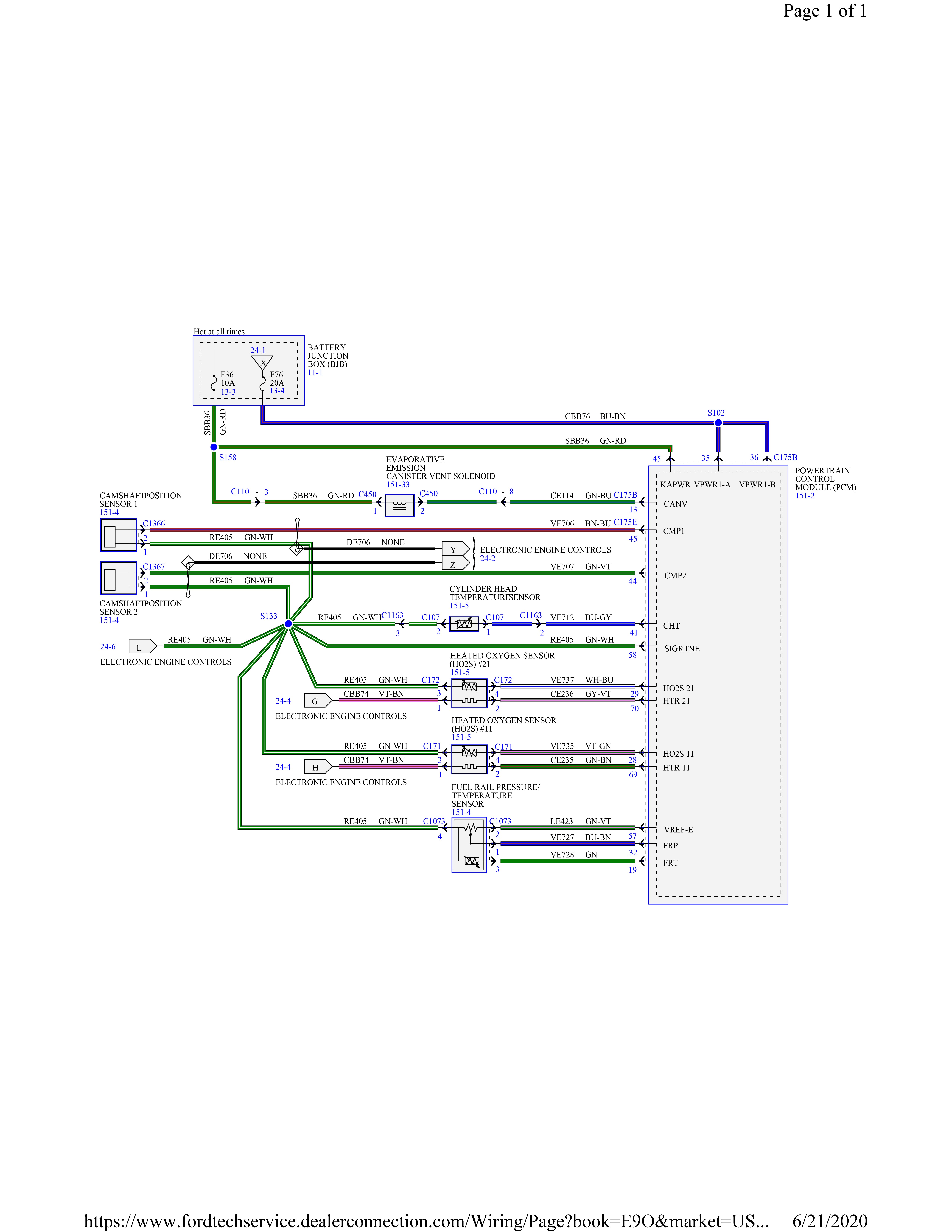

Engine controls 5.4l 5-1

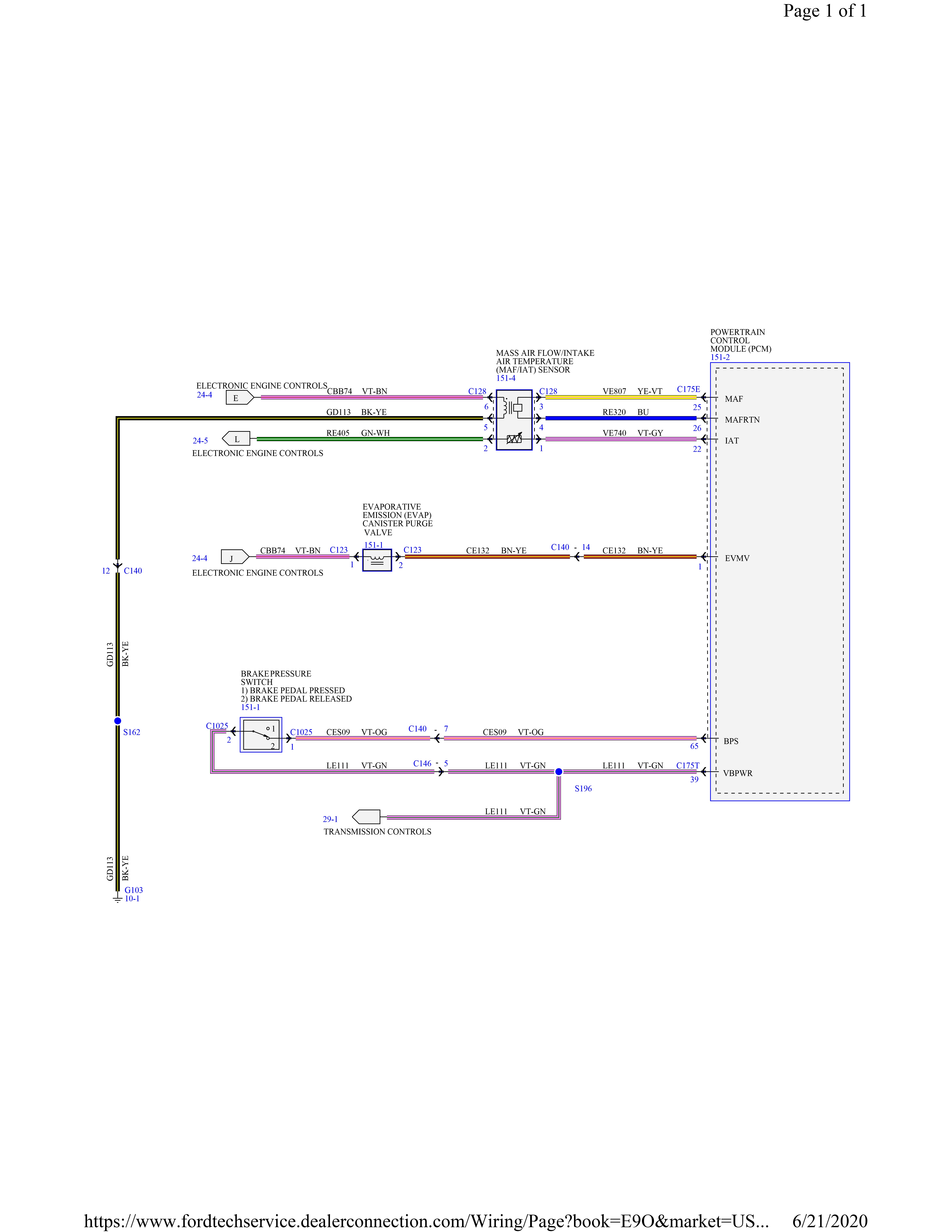

Engine controls 5.4l 6-1
Engine controls 5.4l 7-1
Engine controls 5.4l 8-1

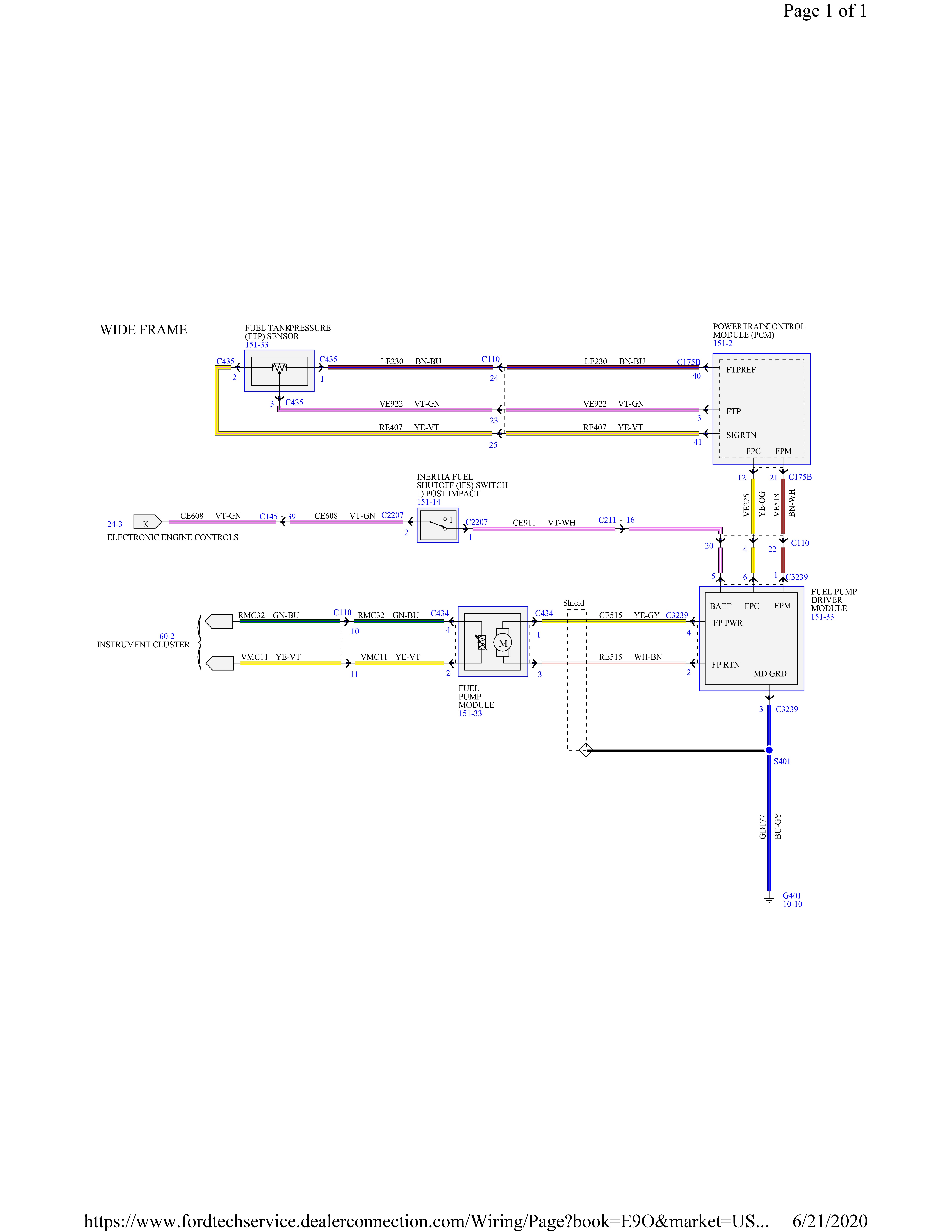

Engine controls 5.4l 9-1
Engine controls 6.4L diesel-1-1
Engine controls 6.4L diesel-10-1
Engine controls 6.4L diesel-2-1
Engine controls 6.4L diesel-3-1
Engine controls 6.4L diesel-4-1
Engine controls 6.4L diesel-5-1
Engine controls 6.4L diesel-6-1
Engine controls 6.4L diesel-7-1
Engine controls 6.4L diesel-8-1
Engine controls 6.4L diesel-9-1
Engine controls 6.8L-1-1
Engine controls 6.8L-10-1
Engine controls 6.8L-11-1
Engine controls 6.8L-2-1

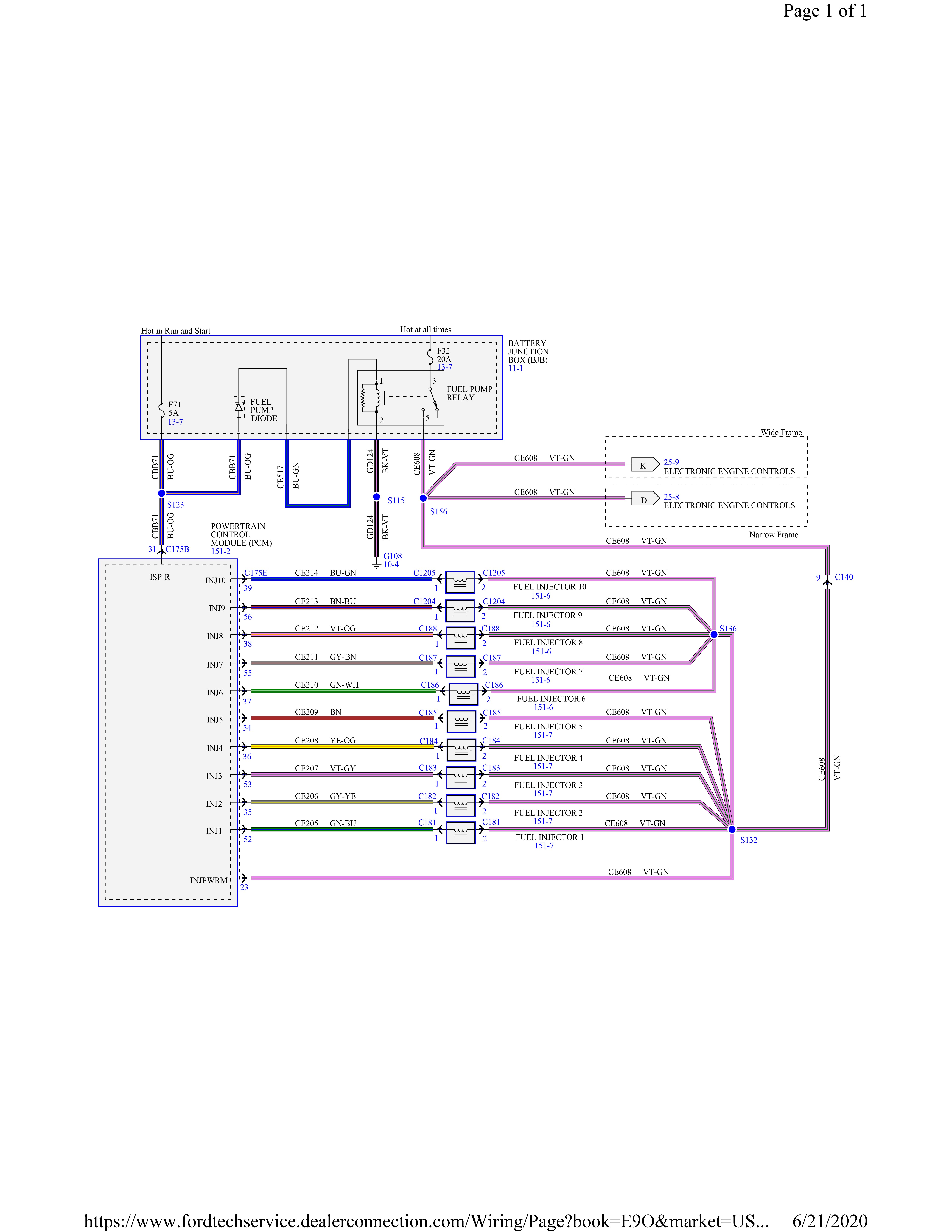

Engine controls 6.8L-3-1

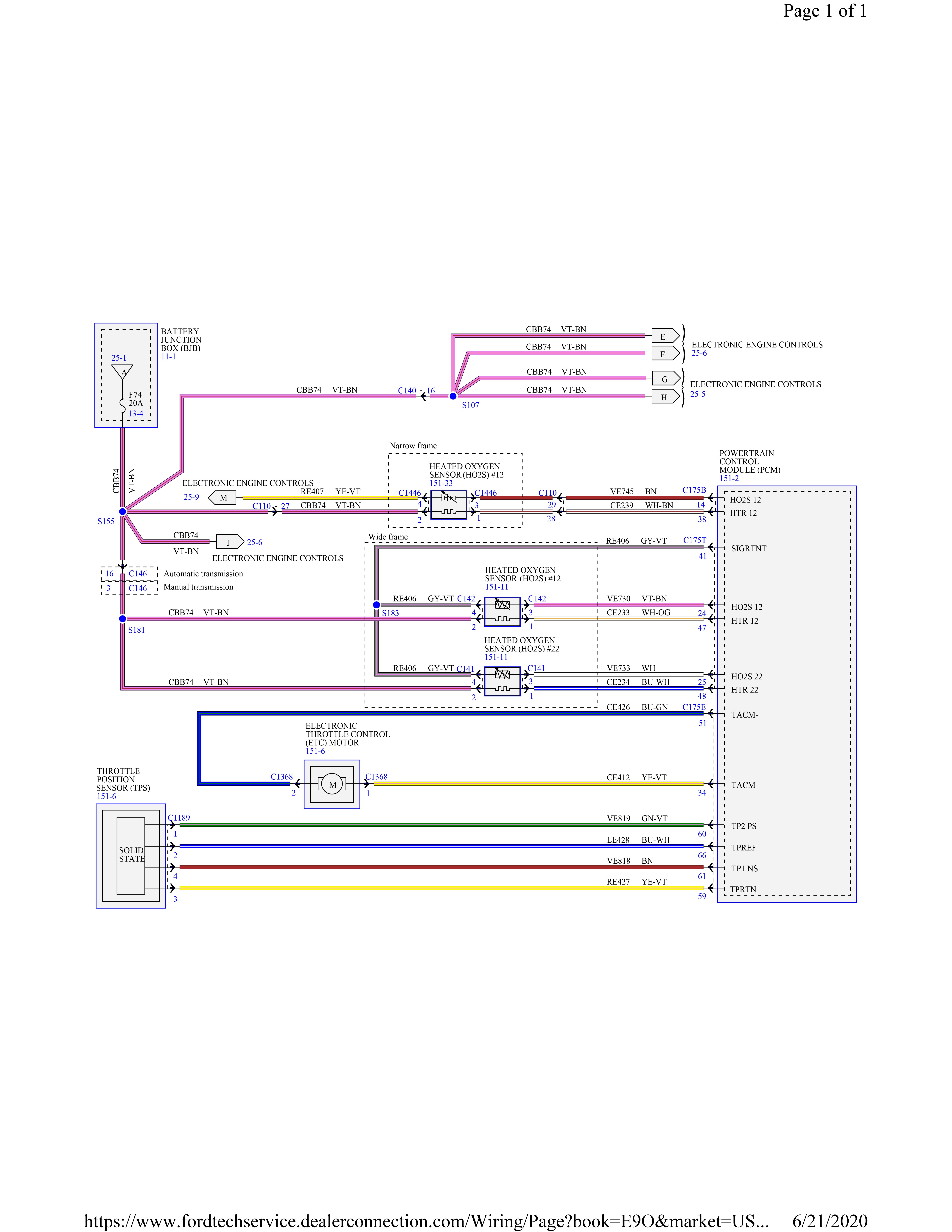

Engine controls 6.8L-4-1

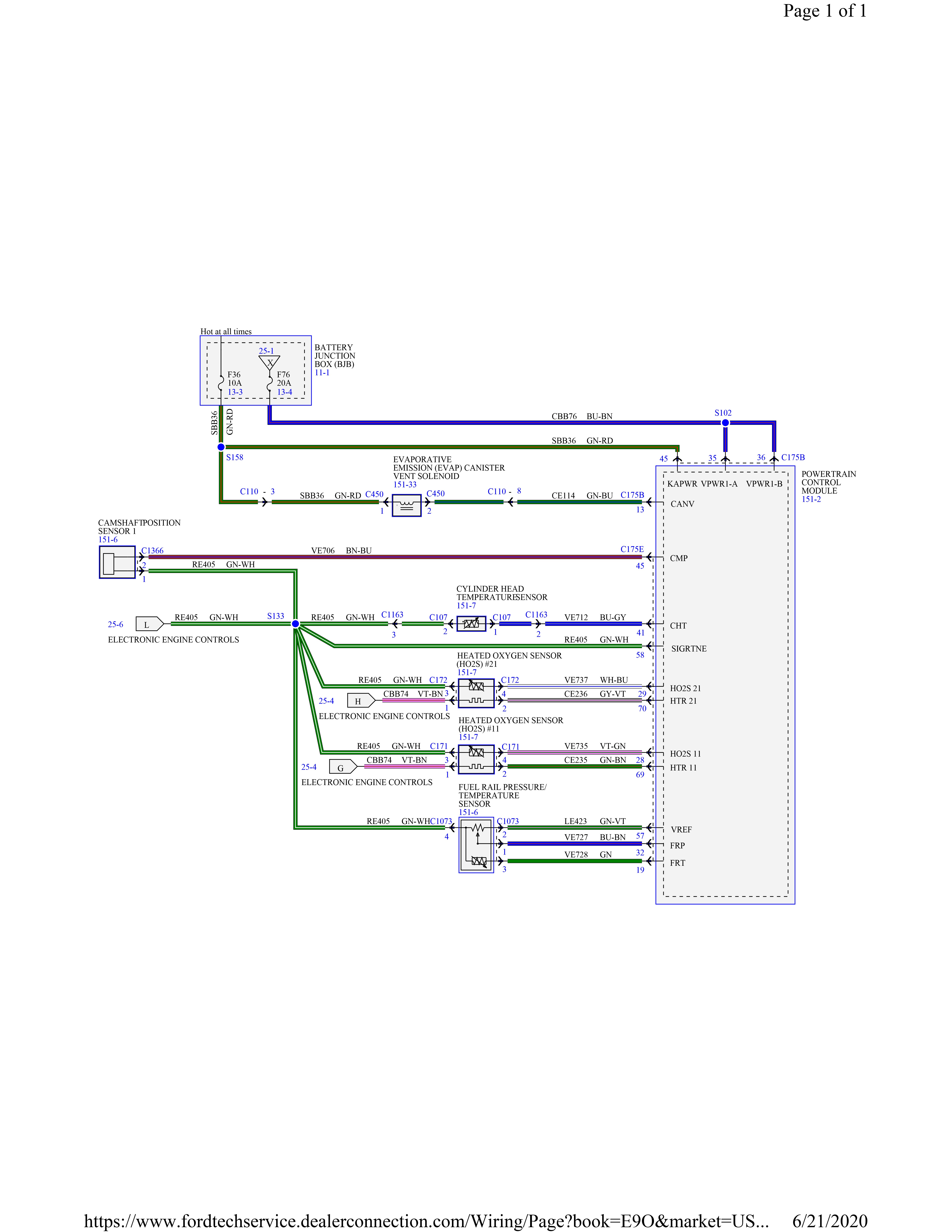

Engine controls 6.8L-5-1
Engine controls 6.8L-6-1

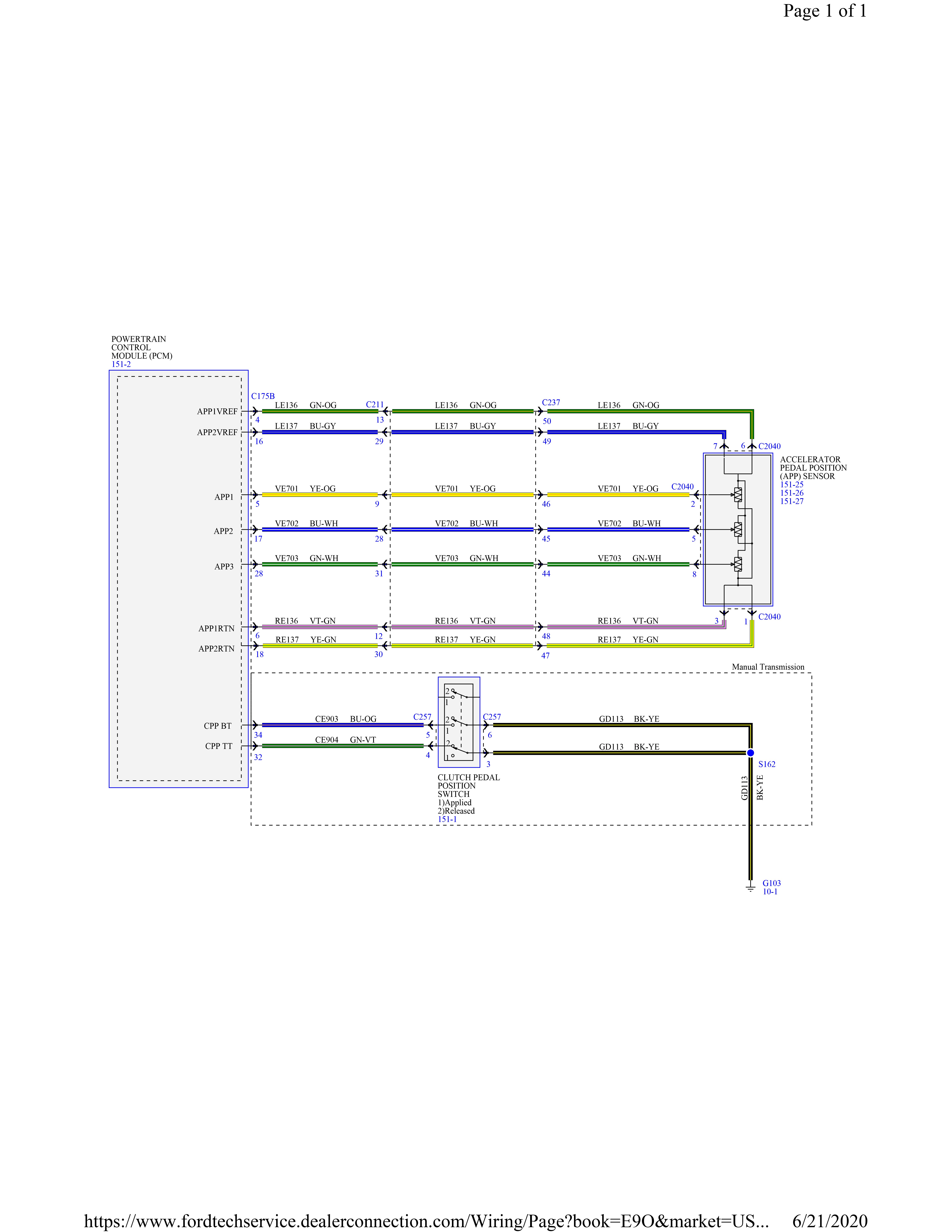

Engine controls 6.8L-7-1

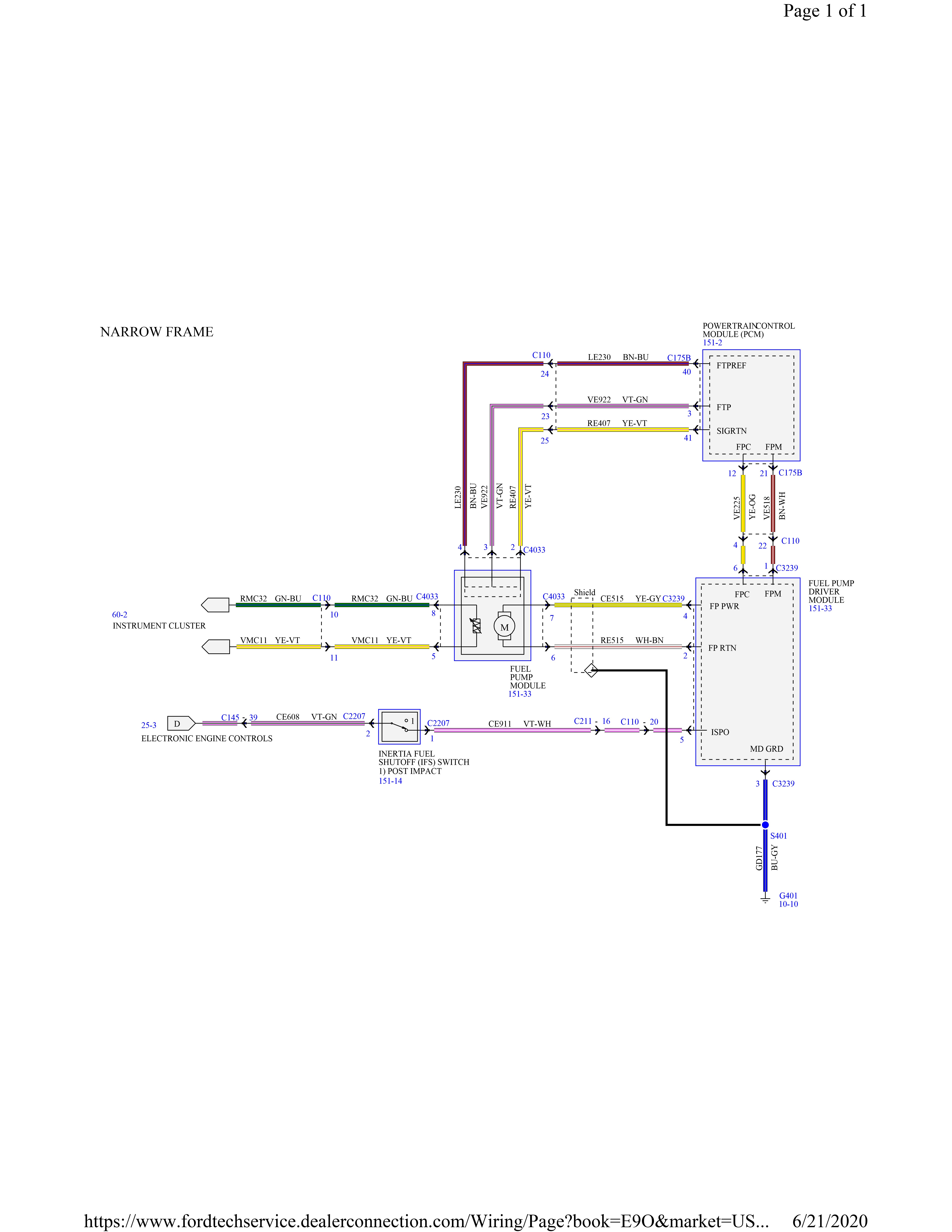

Engine controls 6.8L-8-1

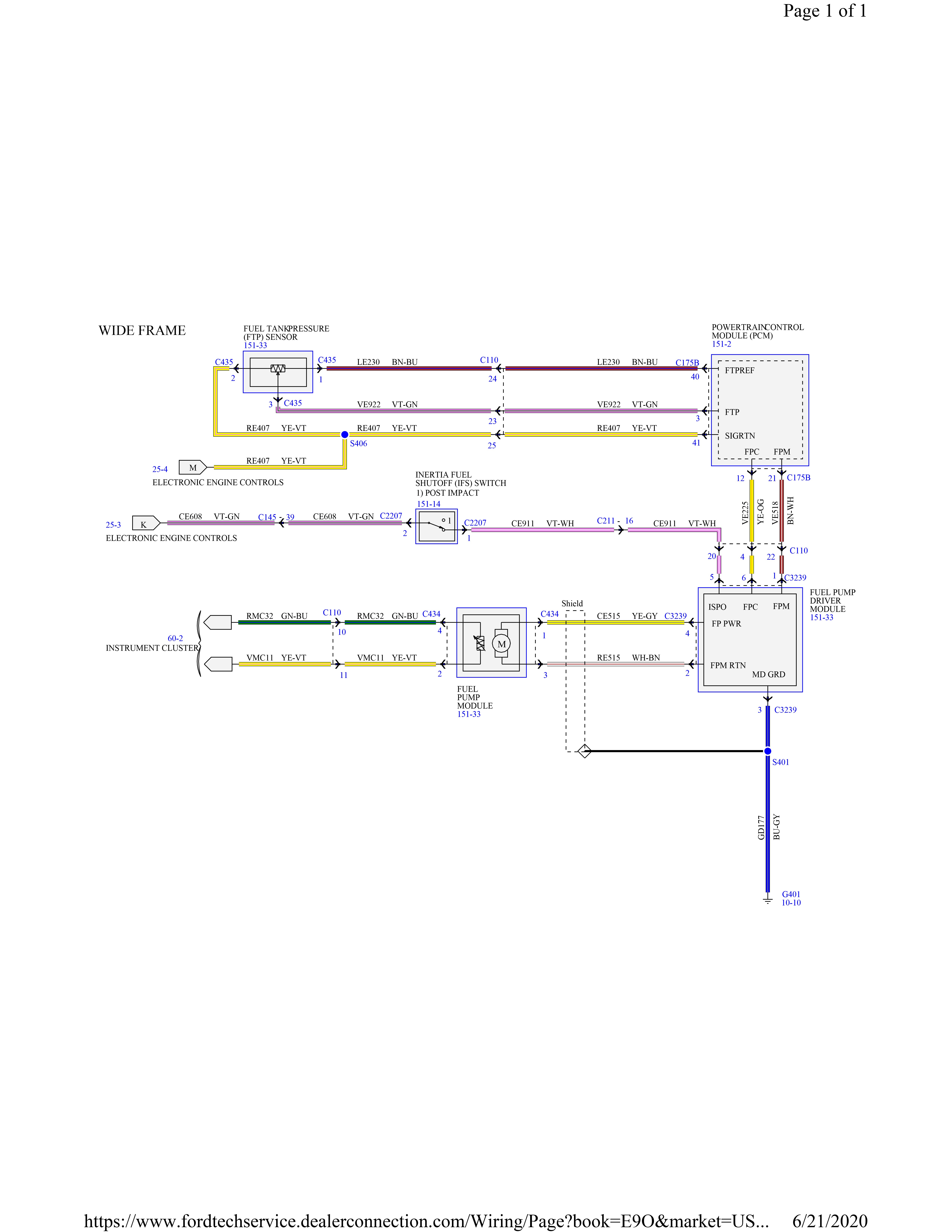

Engine controls 6.8L-9-1
Fog lamps-1
Four wheel drive-1-1
Four wheel drive-2-1
Four wheel drive-3-1
Fuel tank selector-1
Fuses and relay info - 1-1

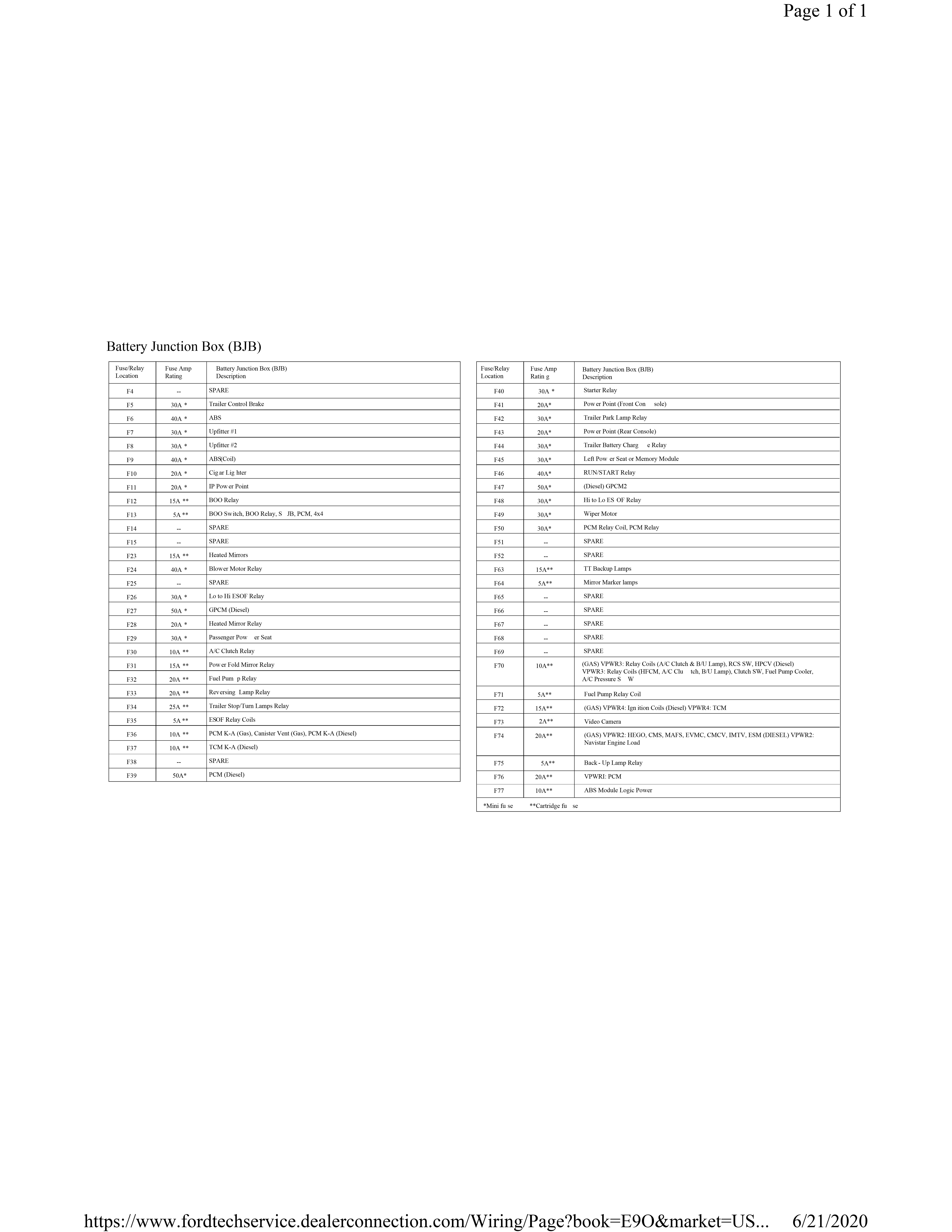

Fuses and relay info - 2-1
Fuses and relay info - 3-1

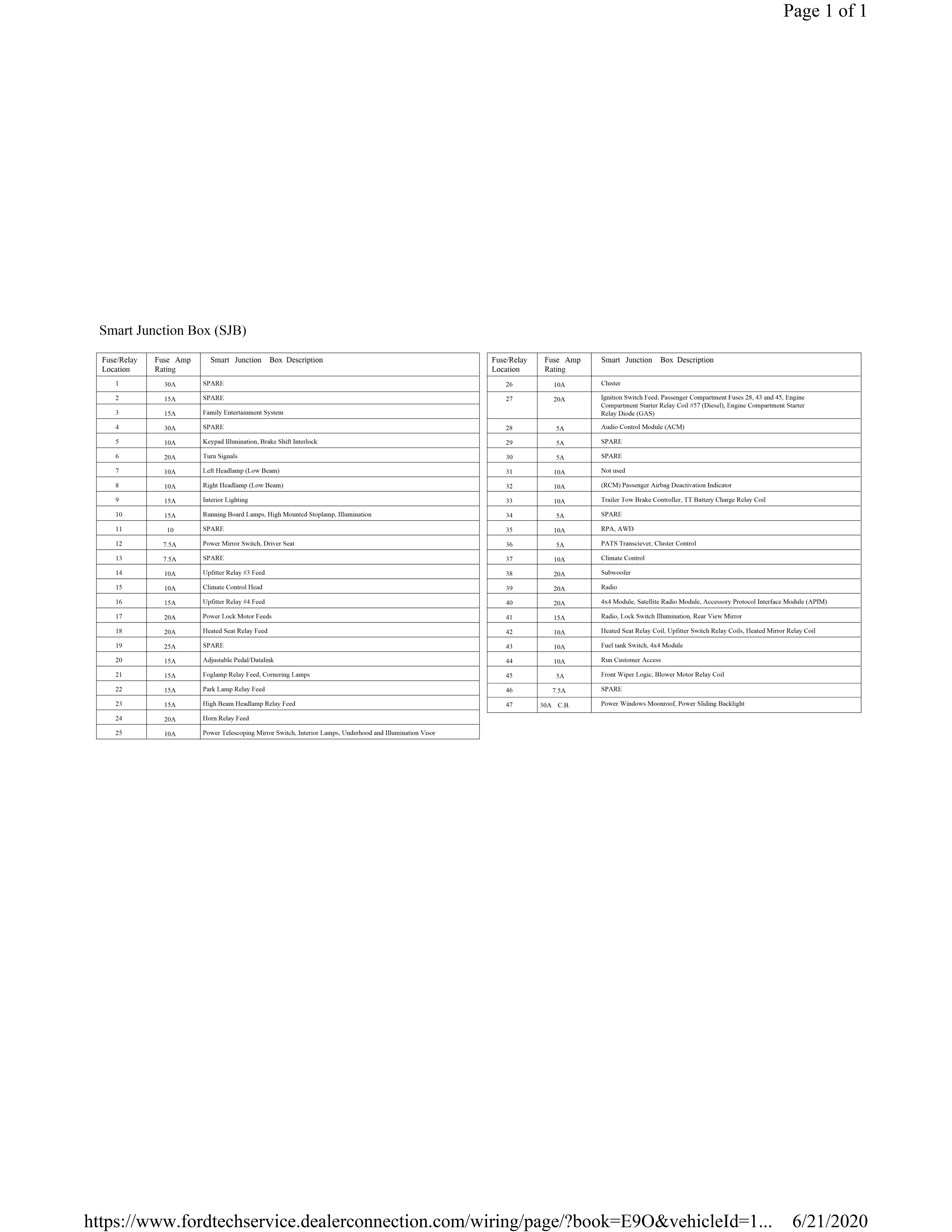

Fuses and relay info - 4-1
Grounds-1-1

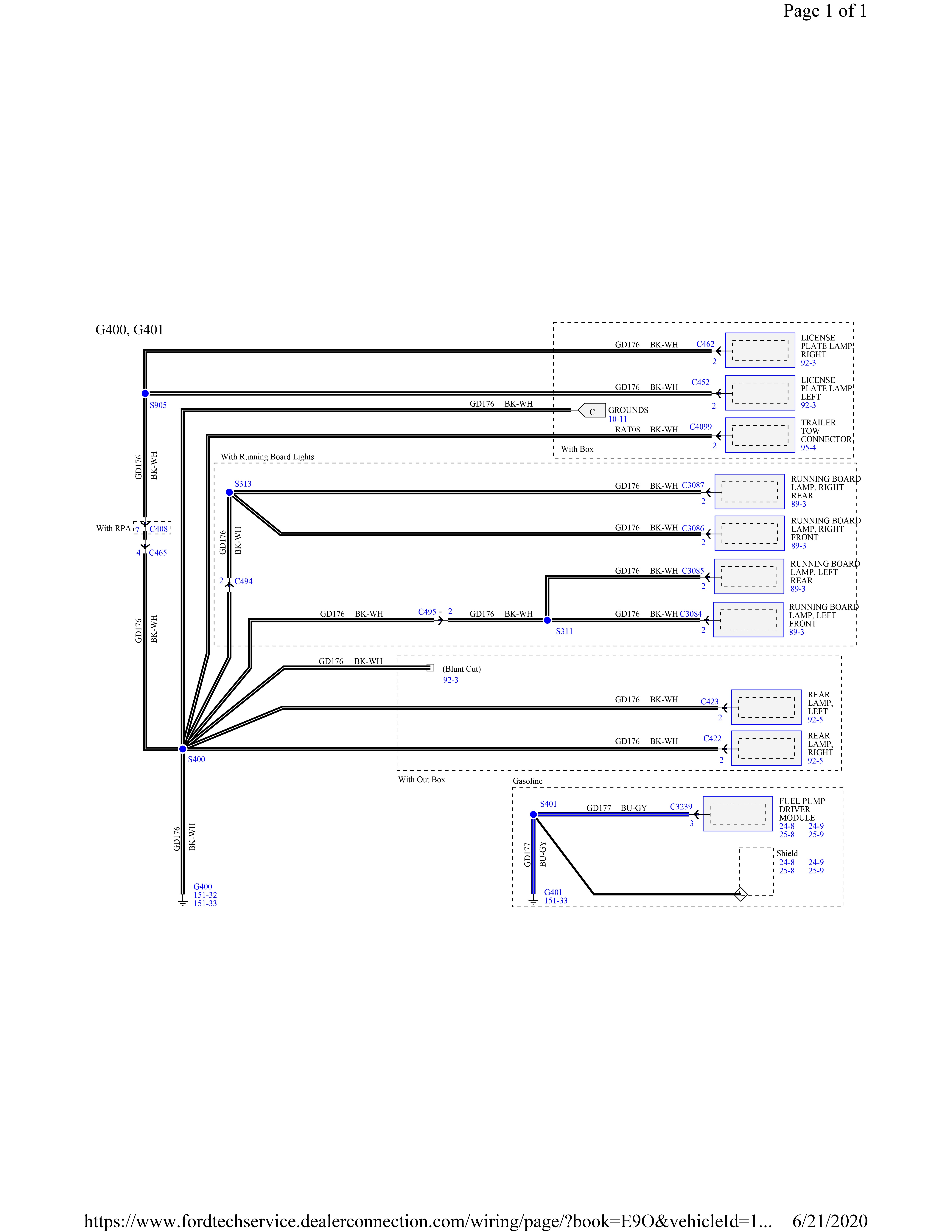

Grounds-10-1
Grounds-11-1

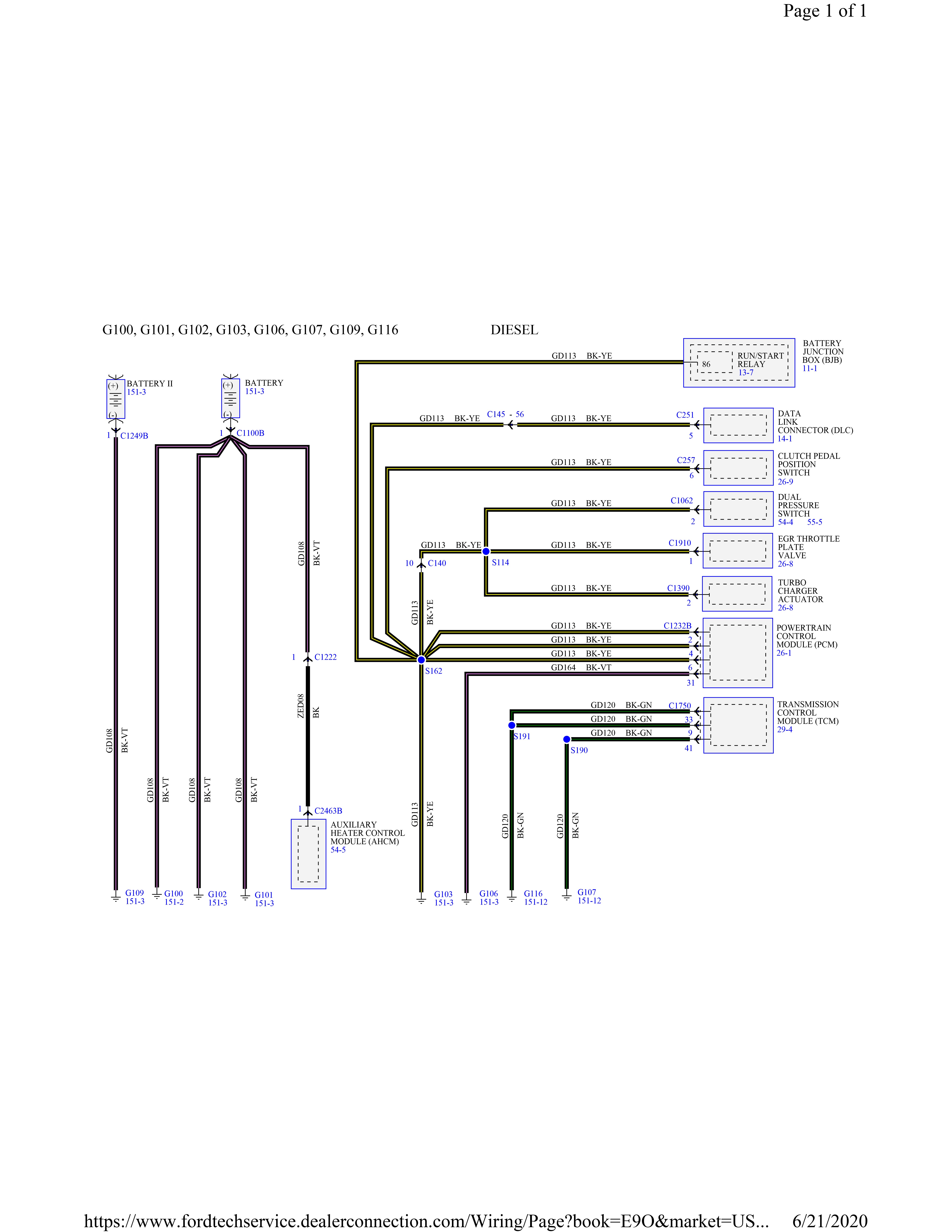

Grounds-2-1
Grounds-3-1

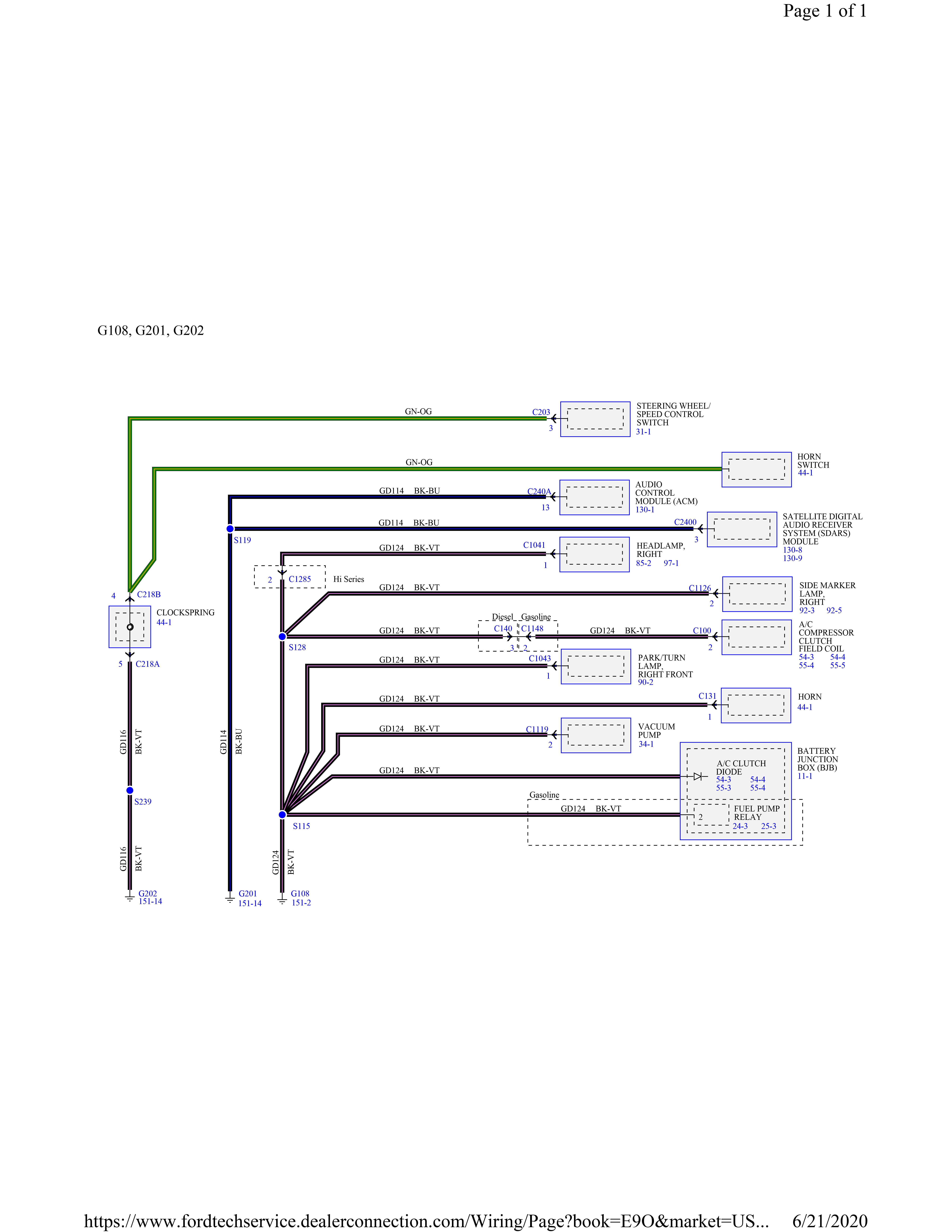

Grounds-4-1
Grounds-5-1

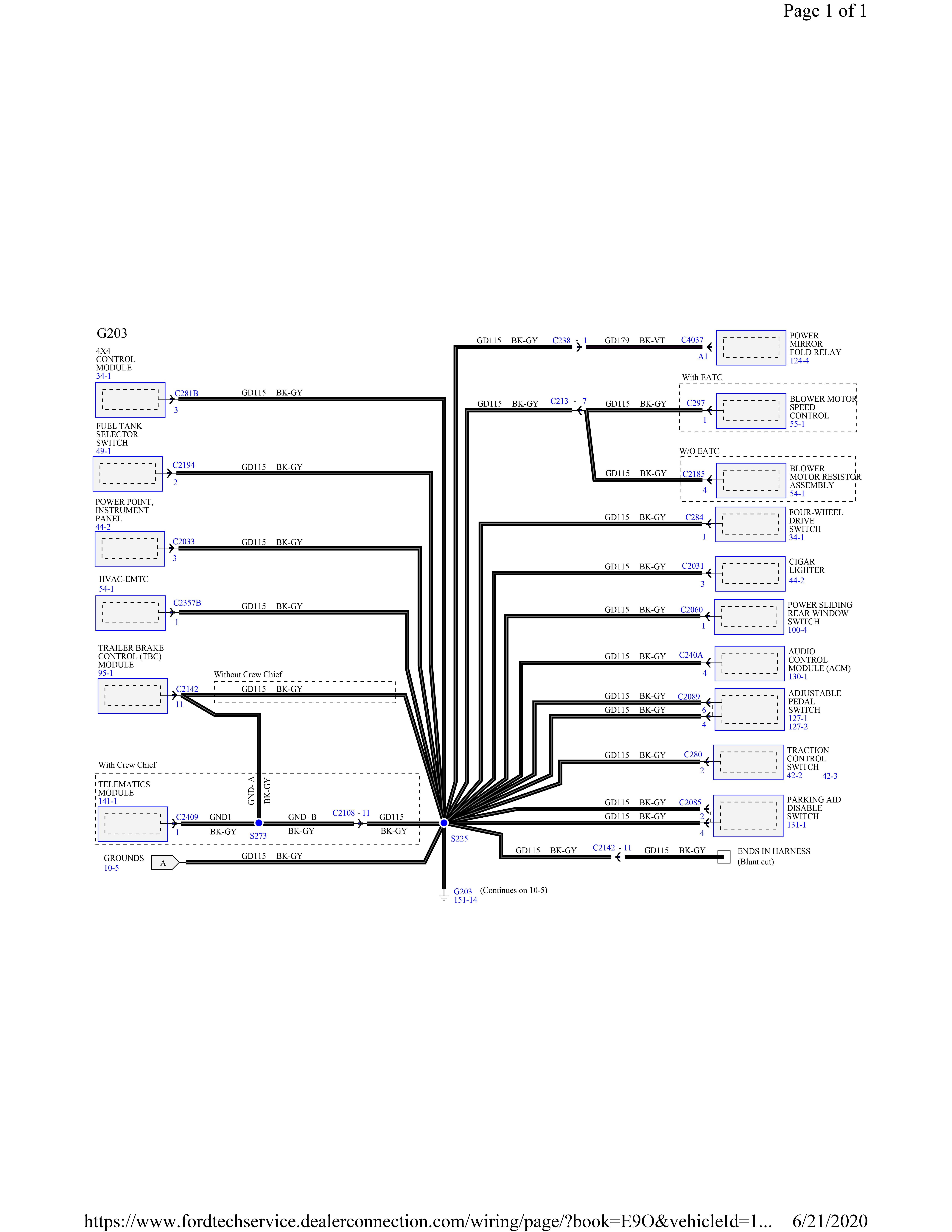

Grounds-6-1
Grounds-7-1
Grounds-8-1

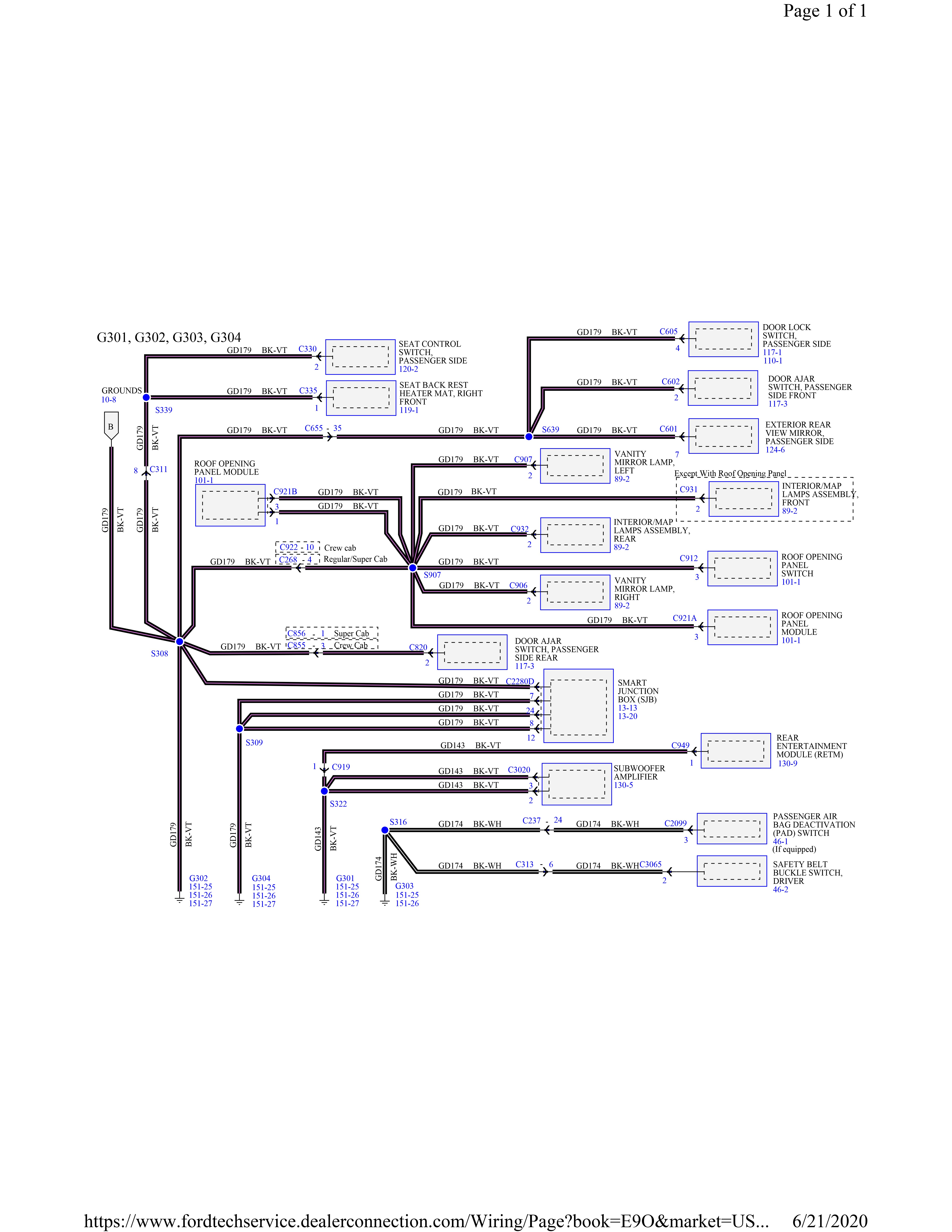

Grounds-9-1
Headlamps-1-1
Headlamps-2-1
Instrument cluster-1-1
Instrument cluster-2-1
Instrument cluster-3-1
Instrument cluster-4-1
Interior lamps-1-1
Interior lamps-2-1
Interior lamps-3-1
Pats-1

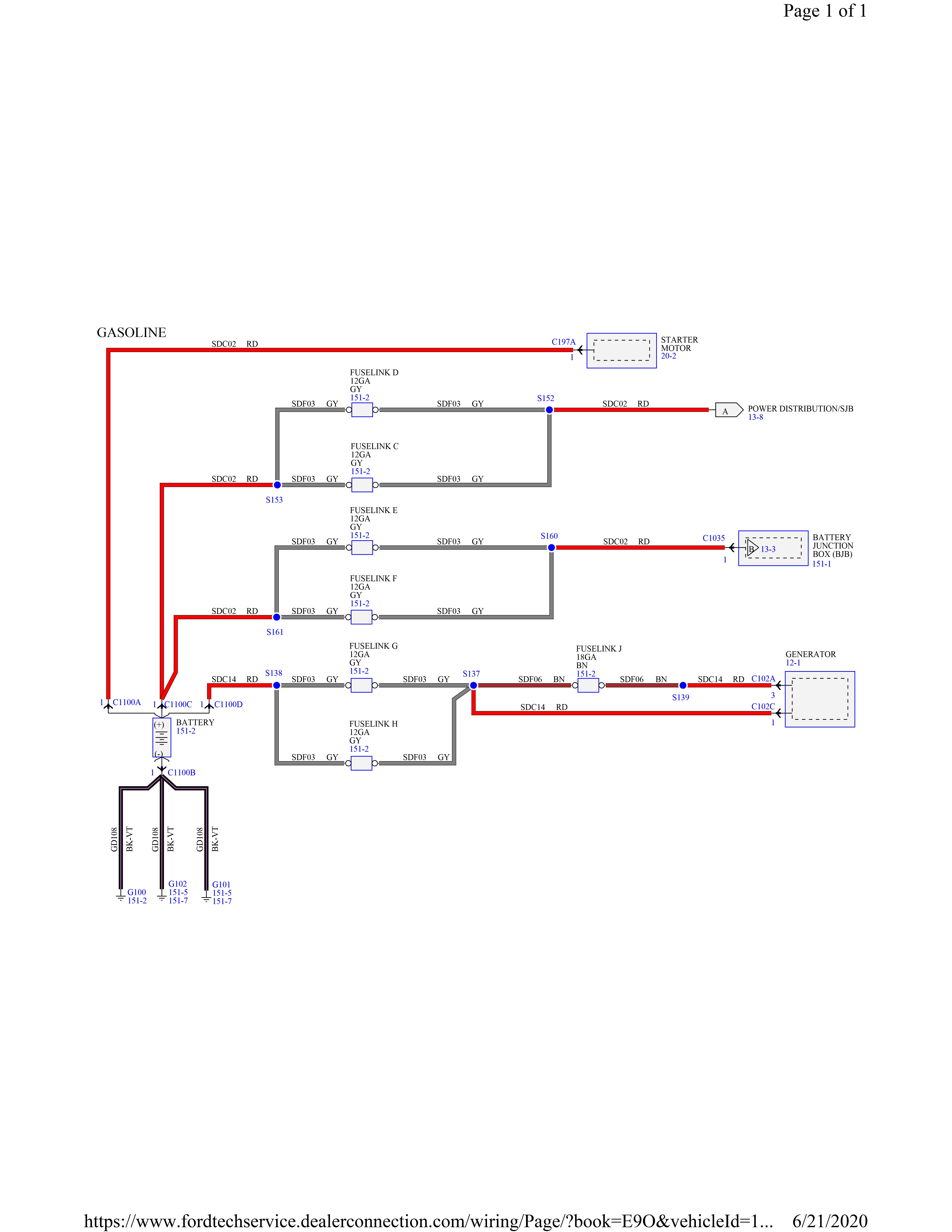

Power and sjb 1-1

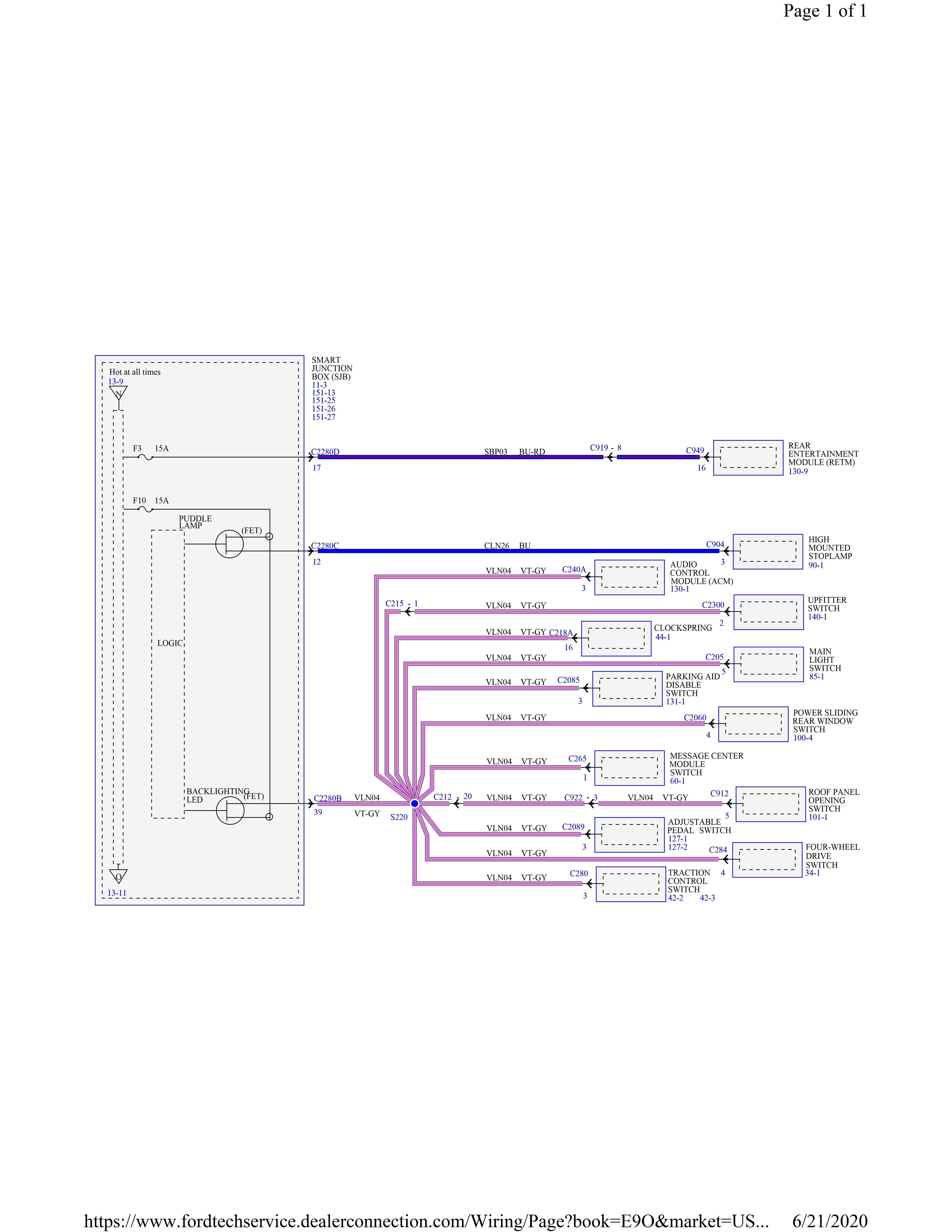

Power and sjb 10-1

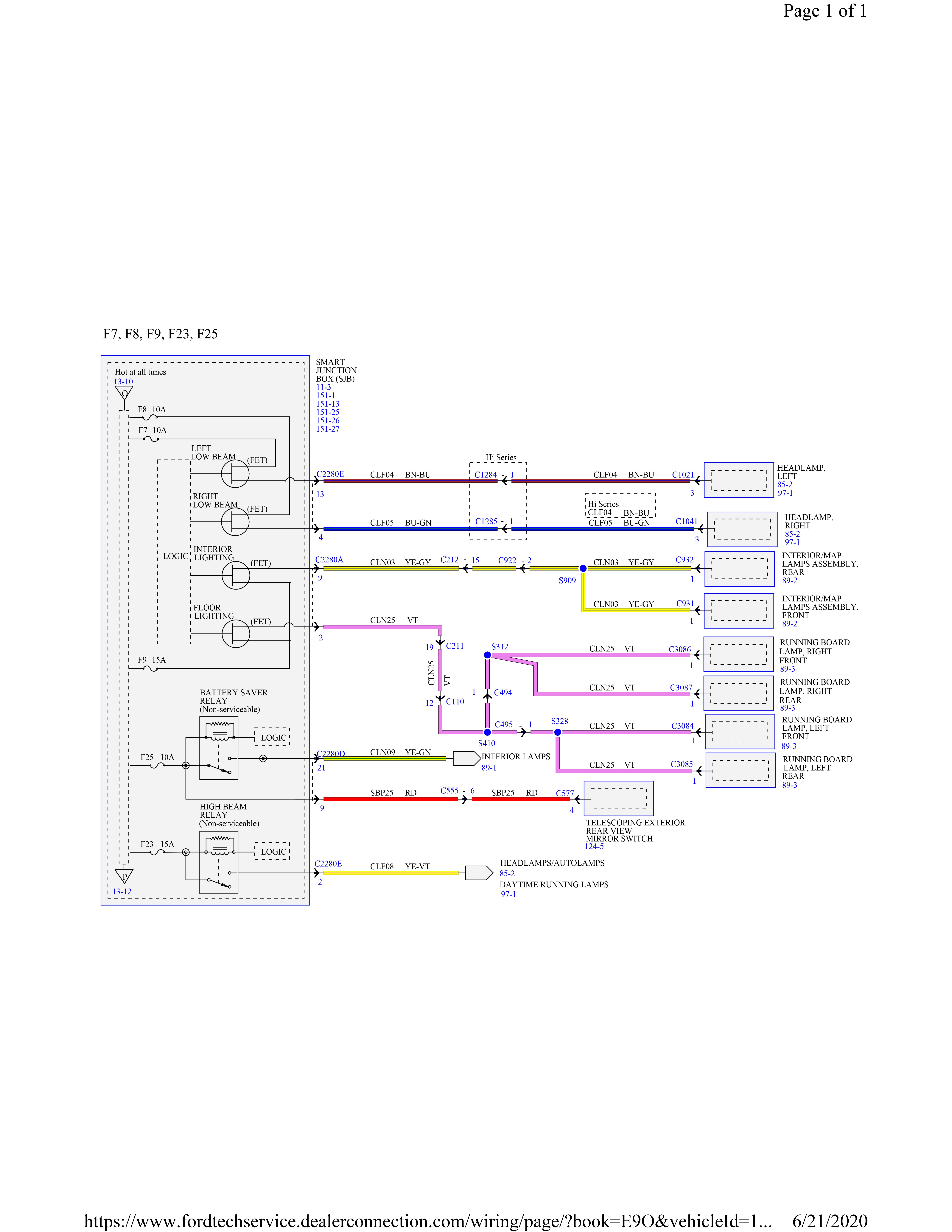

Power and sjb 11-1

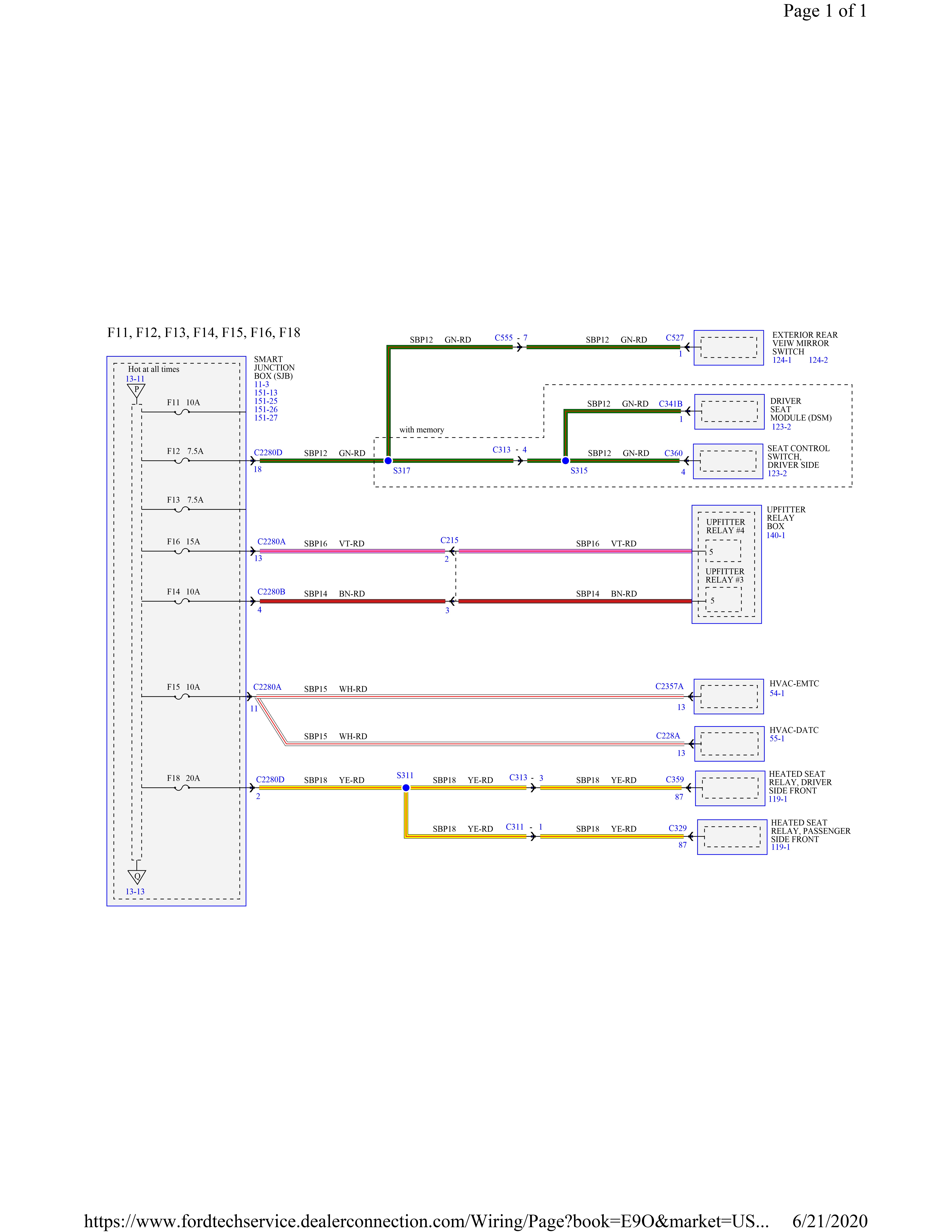

Power and sjb 12-1
Power and sjb 13-1

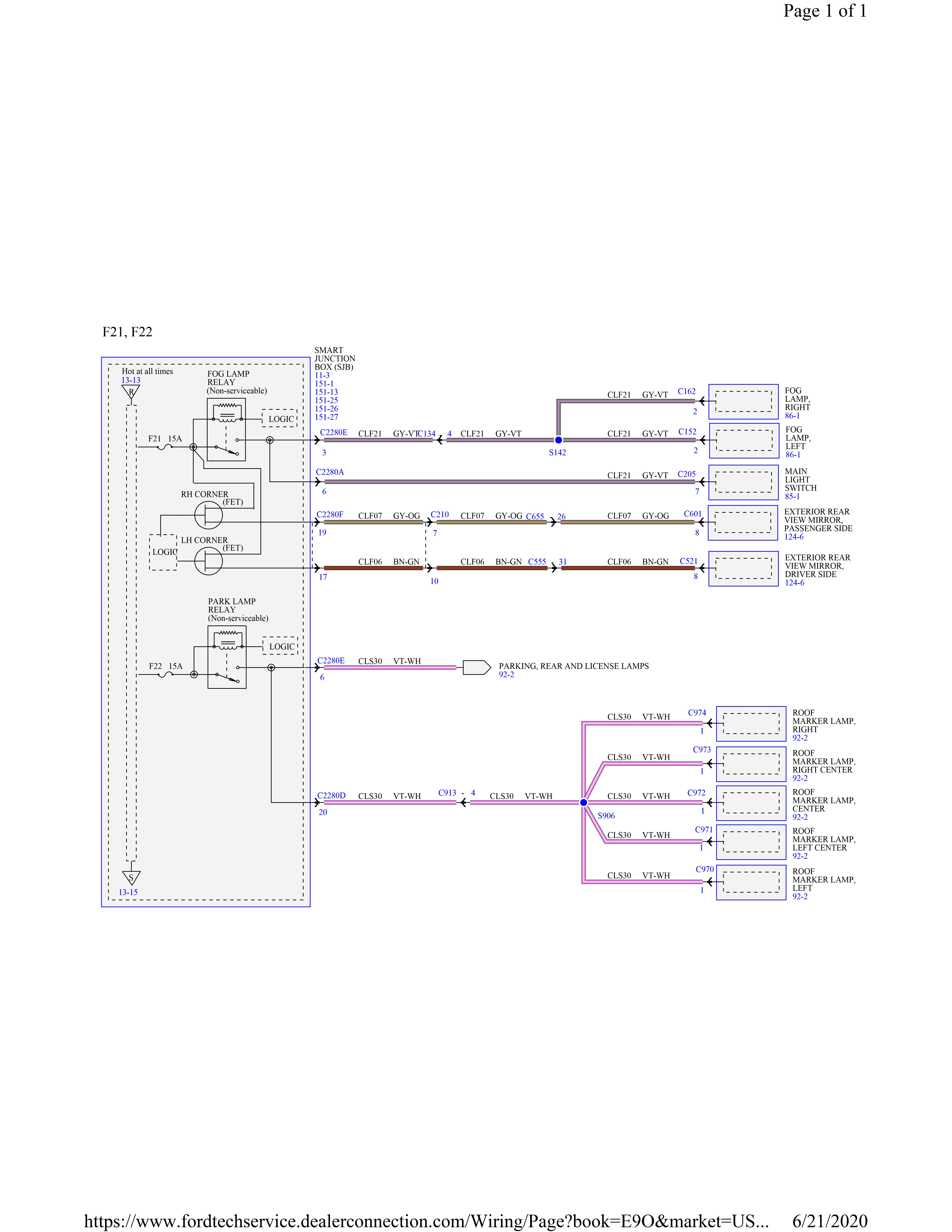

Power and sjb 14-1
Power and sjb 15-1

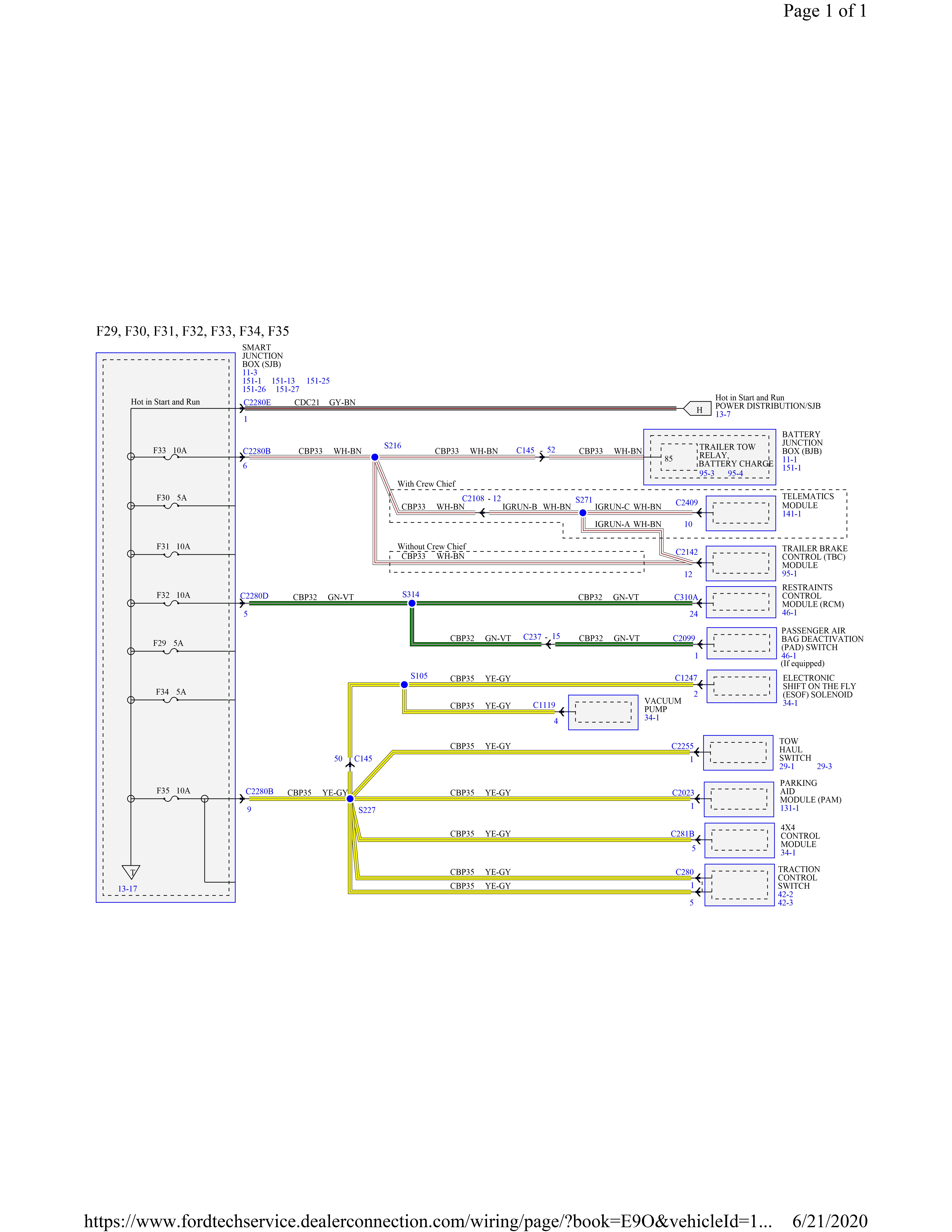

Power and sjb 16-1

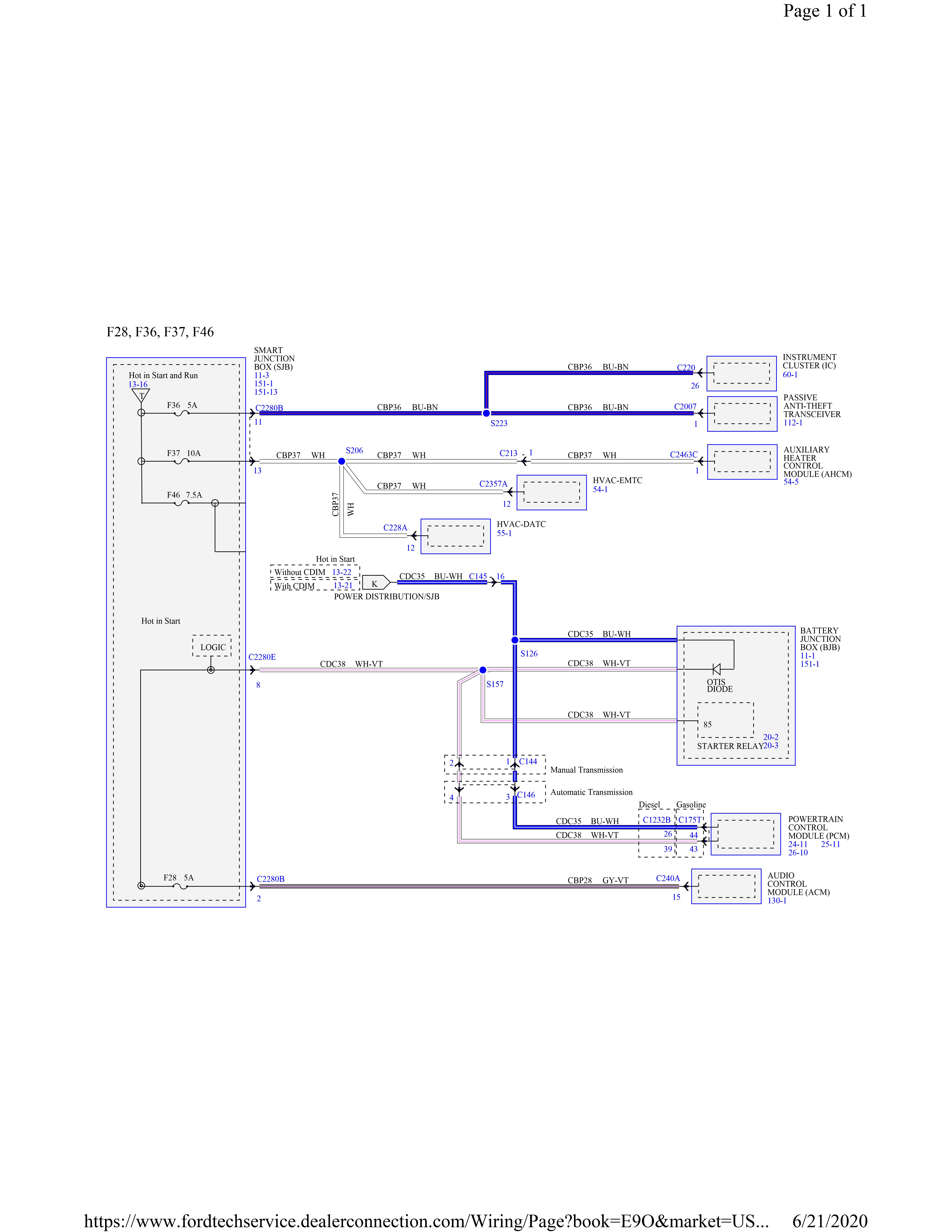

Power and sjb 17-1
Power and sjb 18-1

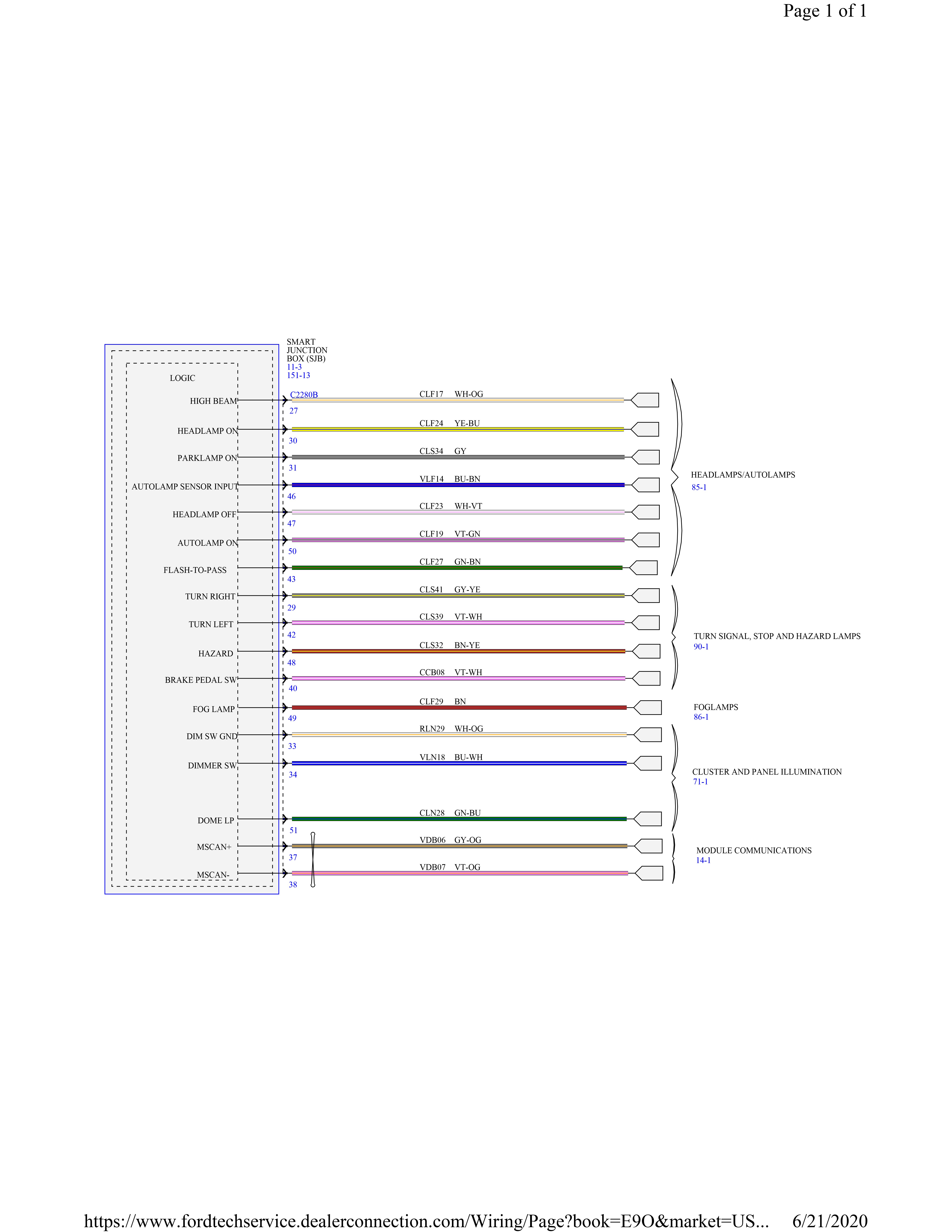

Power and sjb 19-1
Power and sjb 2-1

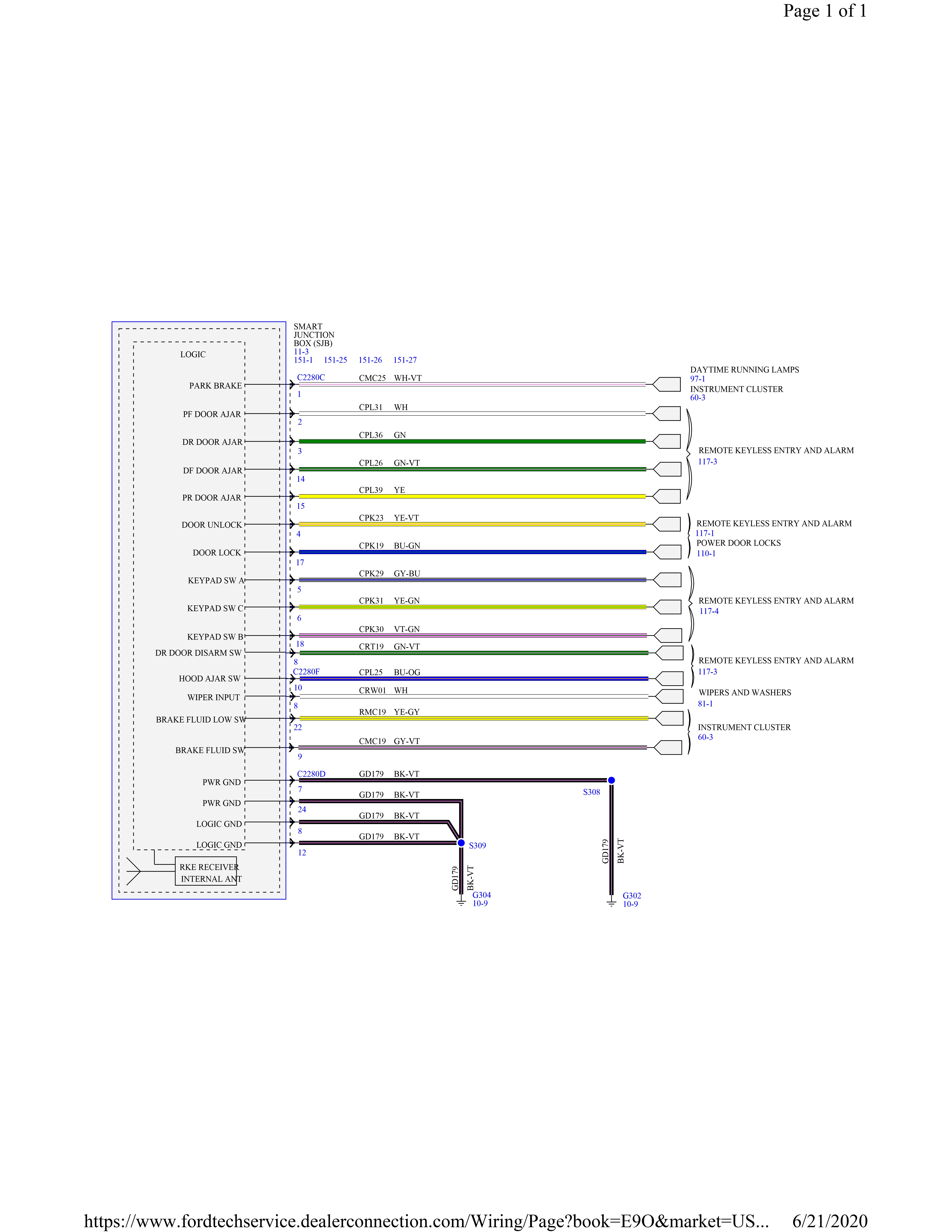

Power and sjb 20-1
Power and sjb 21-1

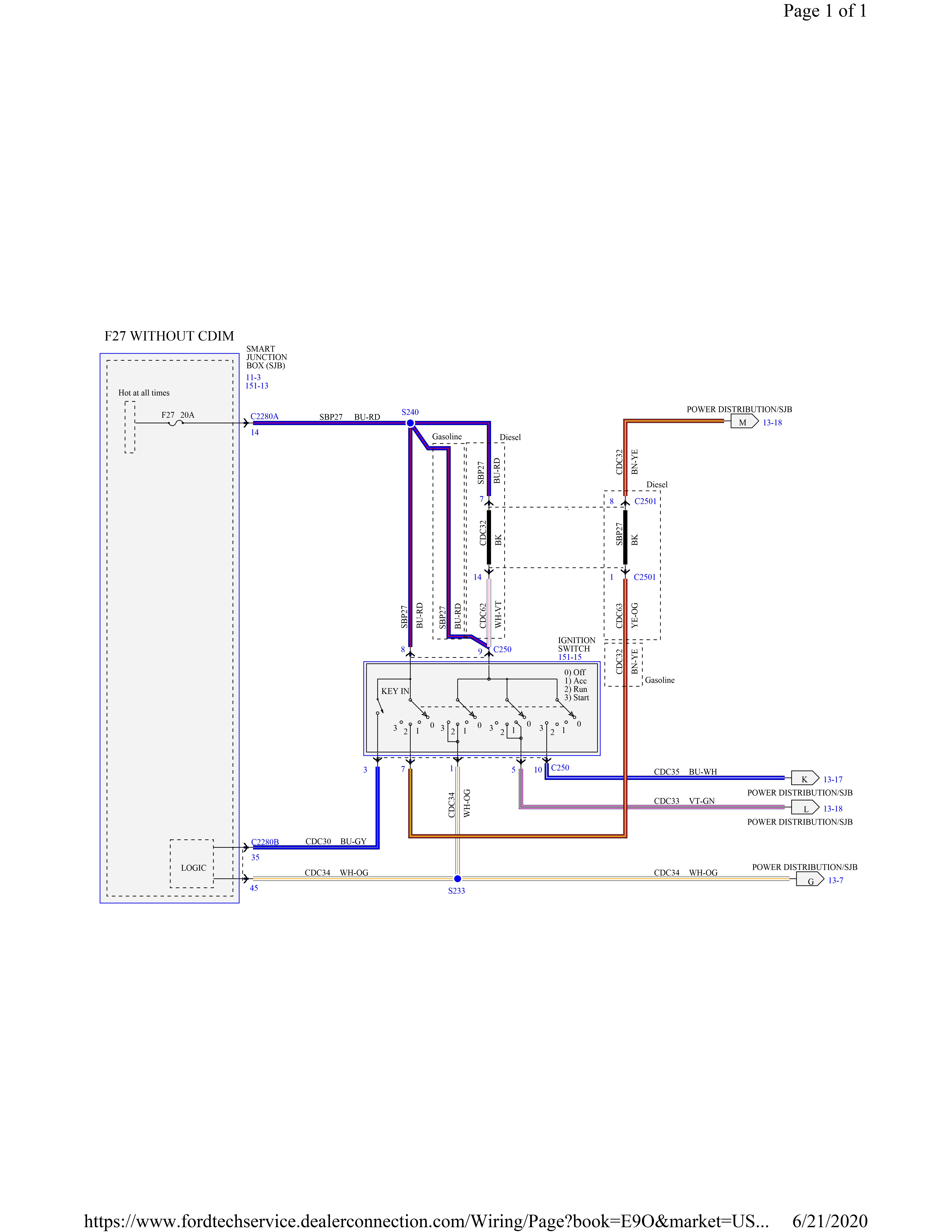

Power and sjb 22-1
Power and sjb 3-1
Power and sjb 4-1
Power and sjb 5-1
Power and sjb 6-1
Power and sjb 7-1
Power and sjb 8-1
Power and sjb 9-1
Starting system (1)-1
Starting system (2)-1

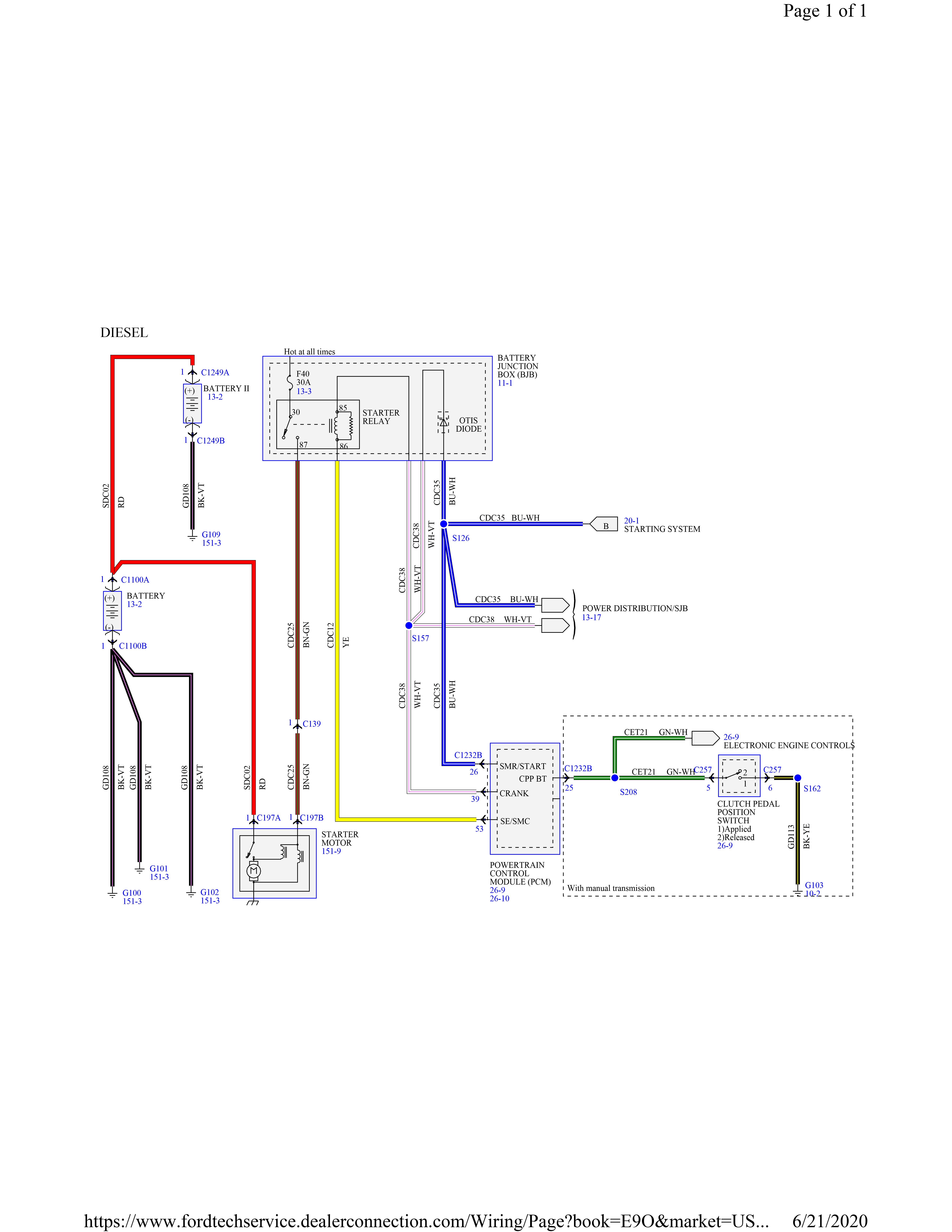

Starting system (3)-1
Transmission controls (1)-1
Transmission controls (2)-1
Transmission controls (3)-1
Transmission controls (4)-1
Transmission controls (5)-1
Turn,stop,hazards 1-1
Turn,stop,hazards 2-1
Turn,stop,hazards 3-1
Vehicle dynamic system 1-1
Vehicle dynamic system 2-1
Vehicle dynamic system 3-1
X c135 - ABS-1
X c135 - ABS-2
X c175b - PCM-1
X c175b - PCM-2
X c175b - PCM-3
X c175e - PCM-1
X c175e - PCM-2
X c175e - PCM-3
X c175e - PCM-4
X c175t - PCM-1
X c175t - PCM-2

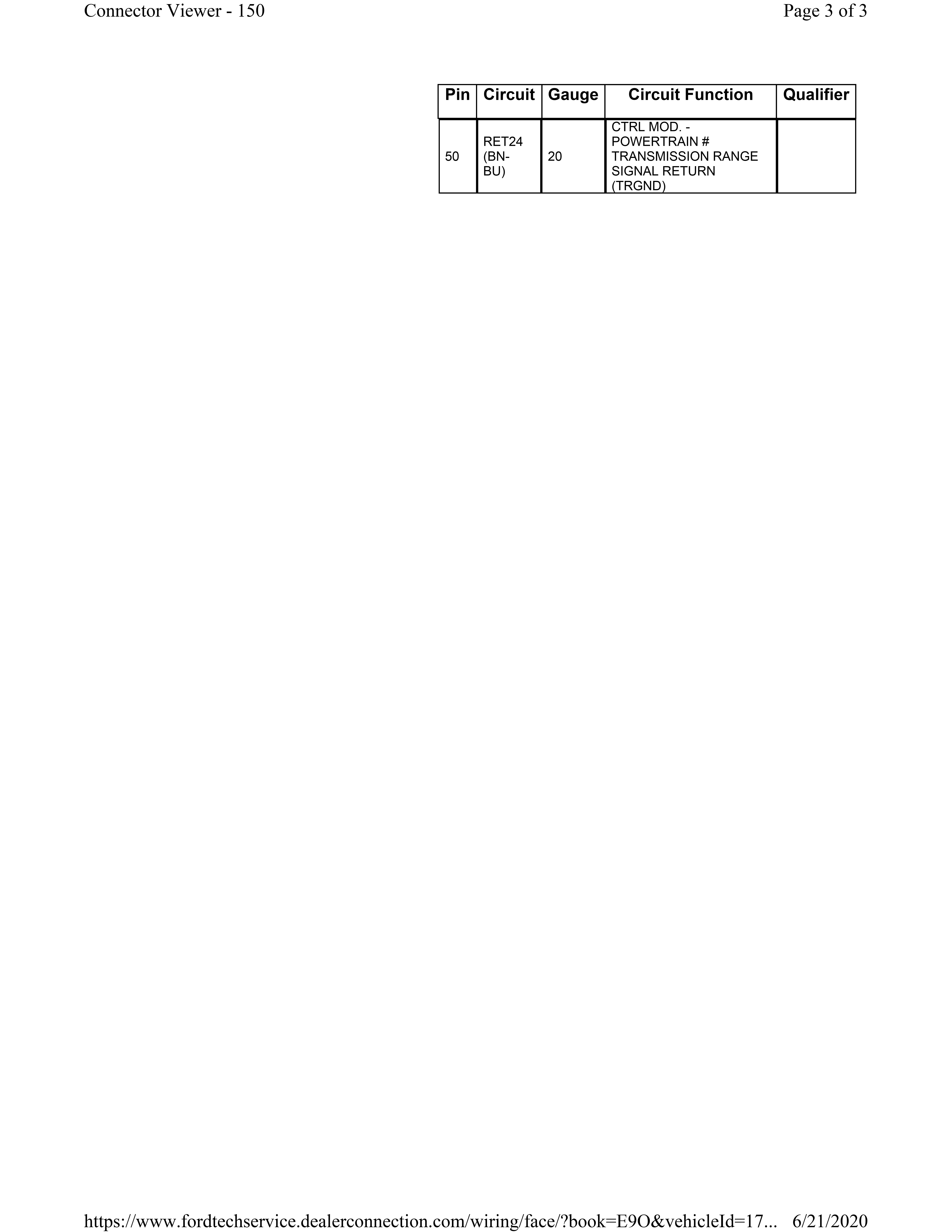

X c175t - PCM-3
X c220 - IC-1
X c220 - IC-2
X c2280a - SJB-1
X c2280a - SJB-2
X c2280b - SJB-1
X c2280b - SJB-2
X c2280c - SJB-1
X c2280d - SJB-1
X c2280e - SJB-1

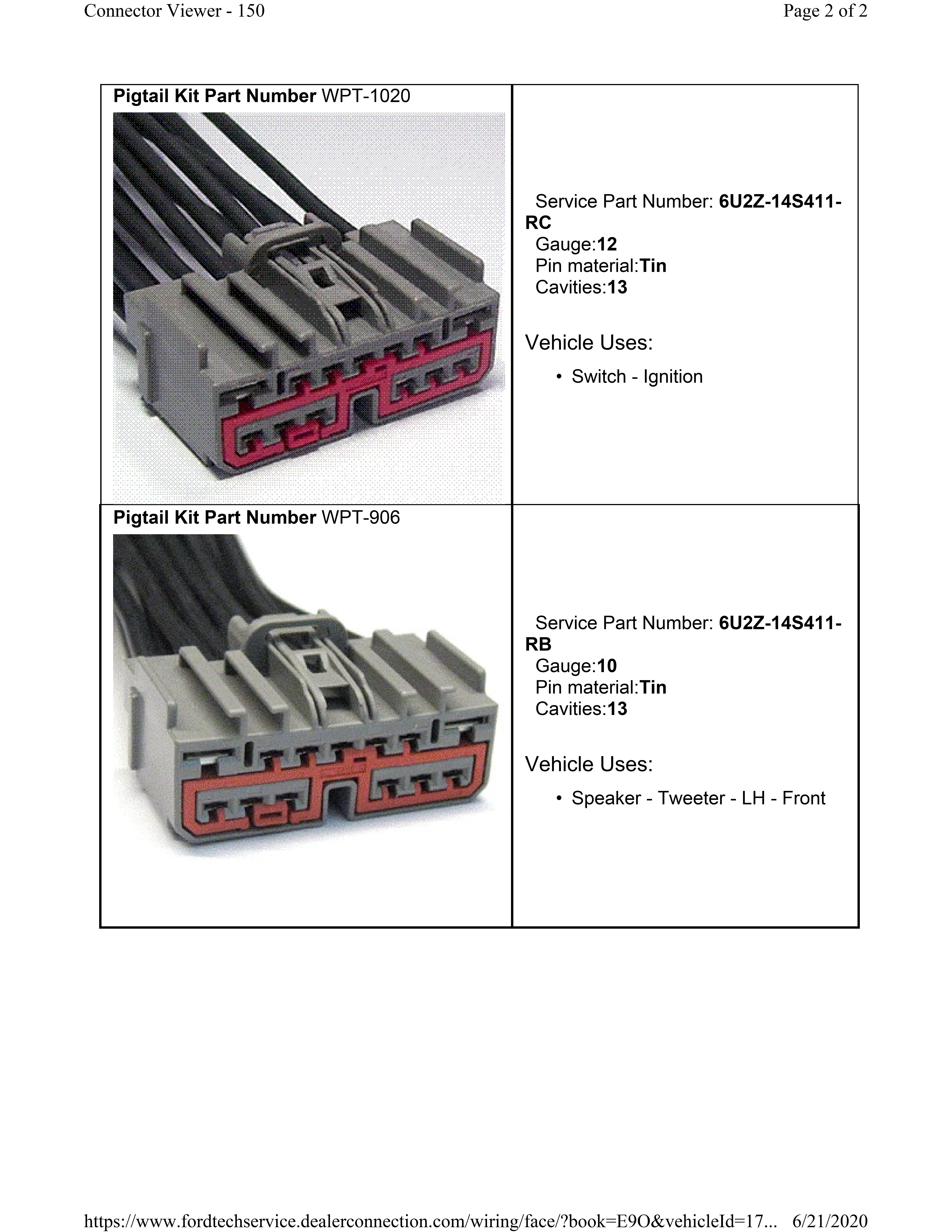

X c2280e - SJB-2
X c2280f - SJB-1
X c251 - DLC-1
X c251 - DLC-2
”
