Ford Escape 2005-2007 wiring diagrams
Ford Escape 2005-2007 wiring diagrams
Parent Category:
Wiring Diagrams
Category:
Ford, Lincoln, Mercury
wiring
schematics
ford
diagrams
escape
Four Wheel Drive-1
PATS-1

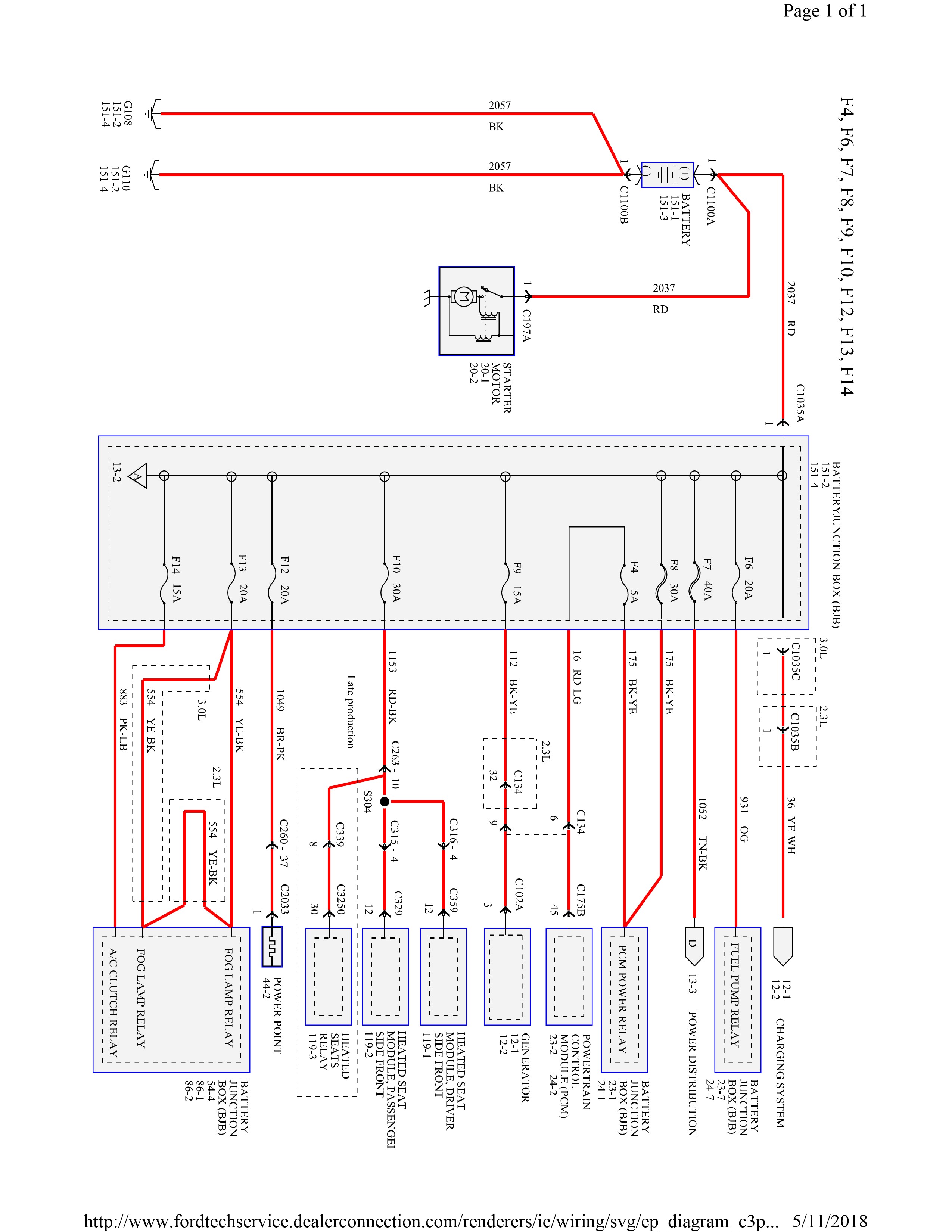

POWER DISTRUBUTION - 01-1
POWER DISTRUBUTION - 02-1
POWER DISTRUBUTION - 03-1
POWER DISTRUBUTION - 04-1
POWER DISTRUBUTION - 05-1
POWER DISTRUBUTION - 06-1

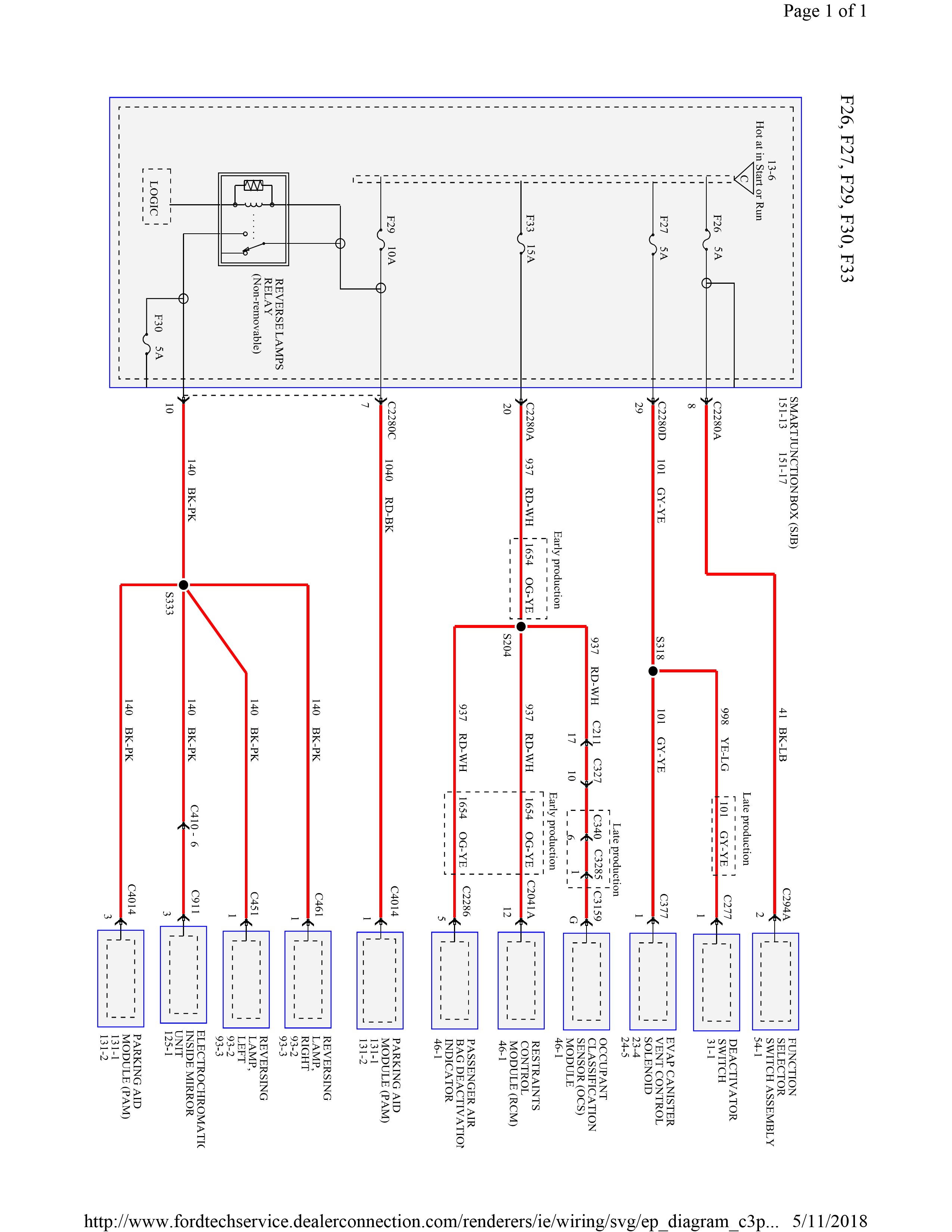

POWER DISTRUBUTION - 07-1
POWER DISTRUBUTION - 08-1
POWER DISTRUBUTION - 09-1
POWER DISTRUBUTION - 10-1
POWER DISTRUBUTION - 11-1
POWER DISTRUBUTION - 12-1
STARTING SYSTEM - 01-1

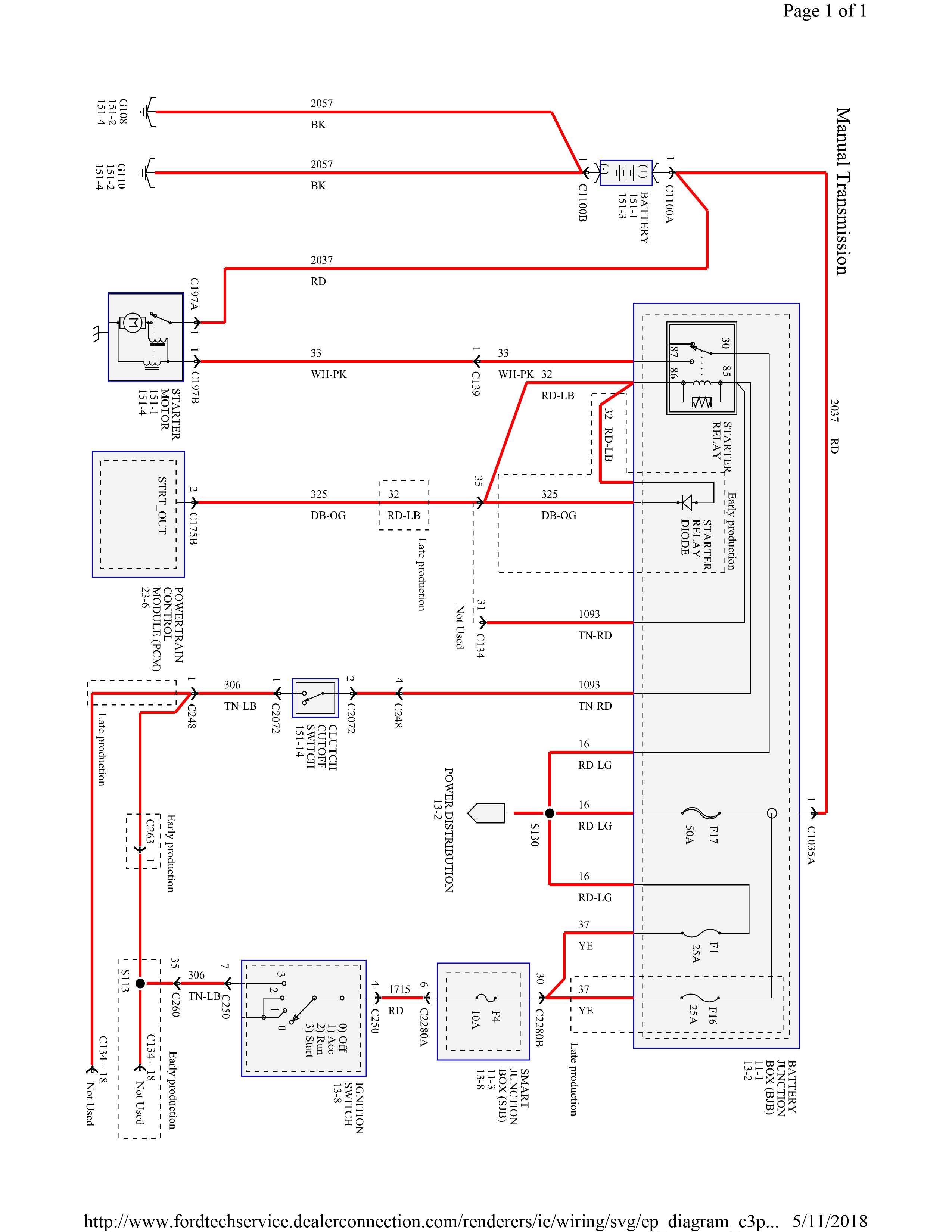

STARTING SYSTEM - 02-1

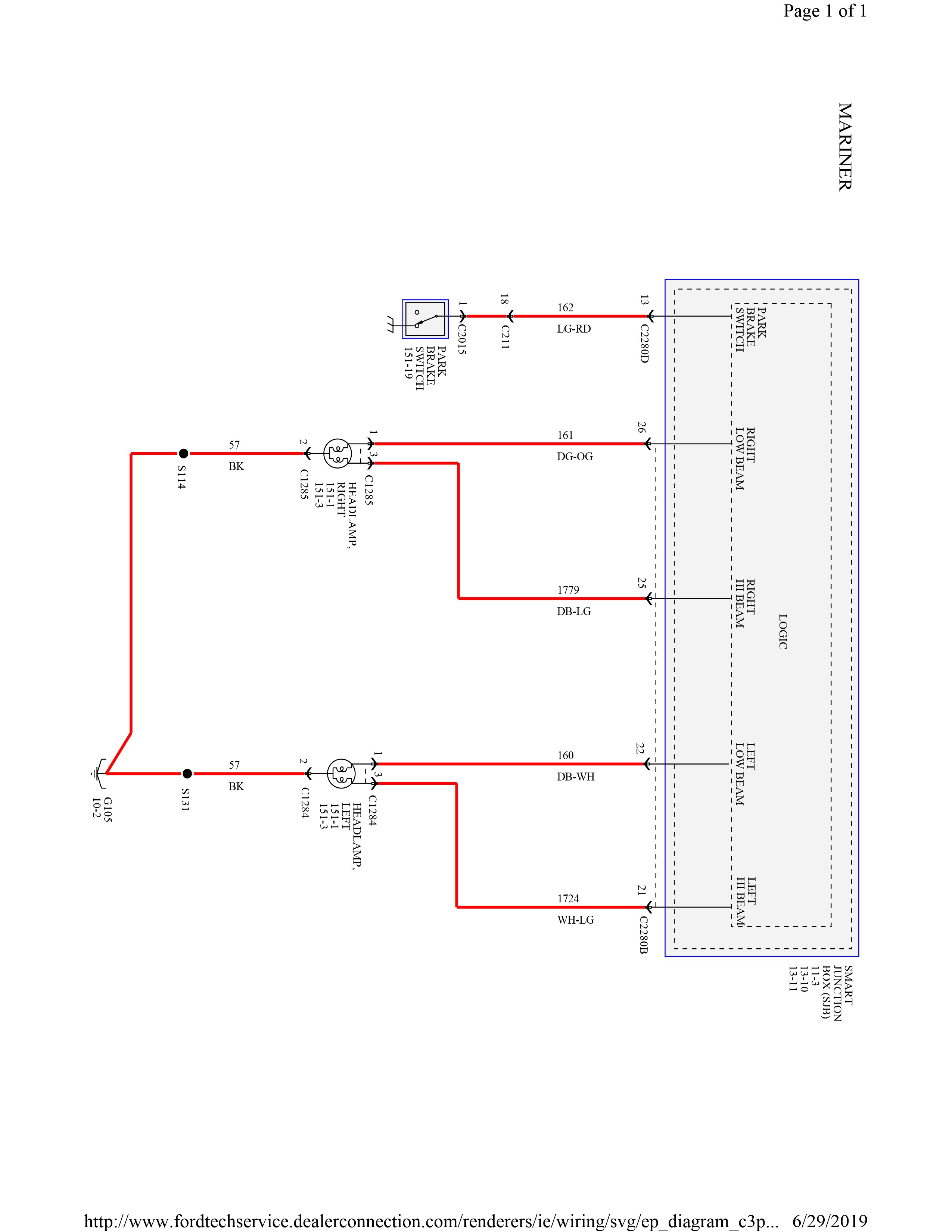

Auto lamps (1)
Auto lamps (2)

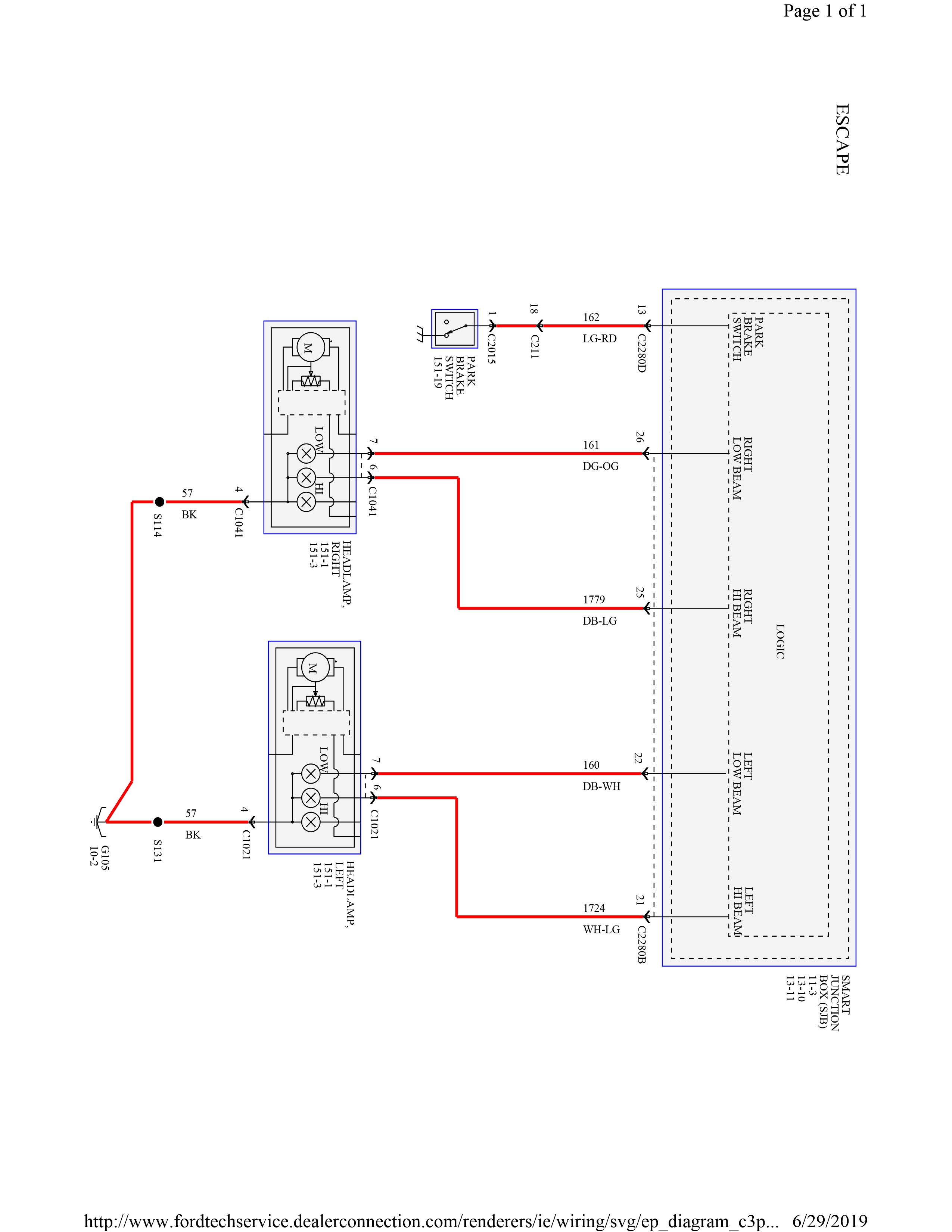

Auto lamps (3)
Charging (1)
Charging (2)

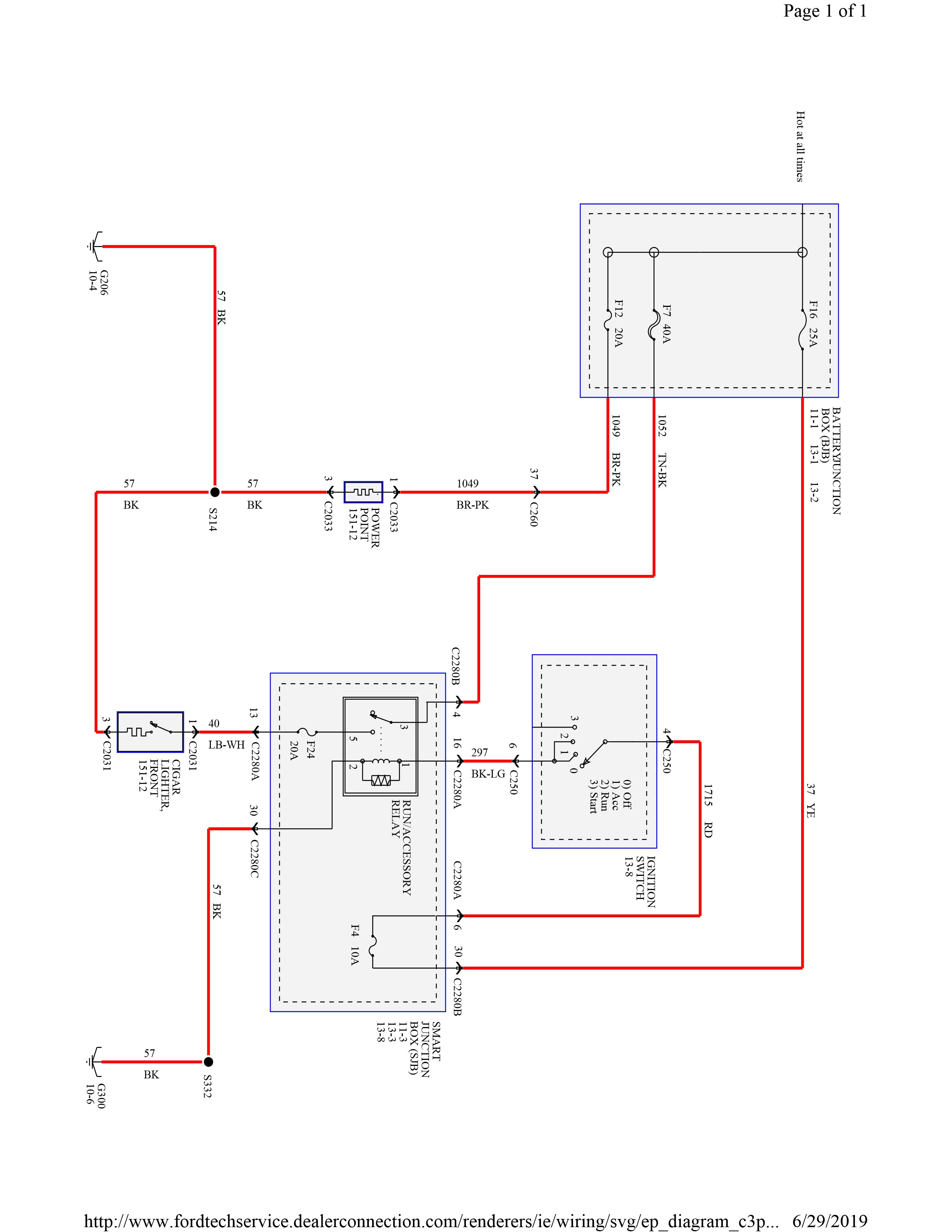

Cigar lighters-1

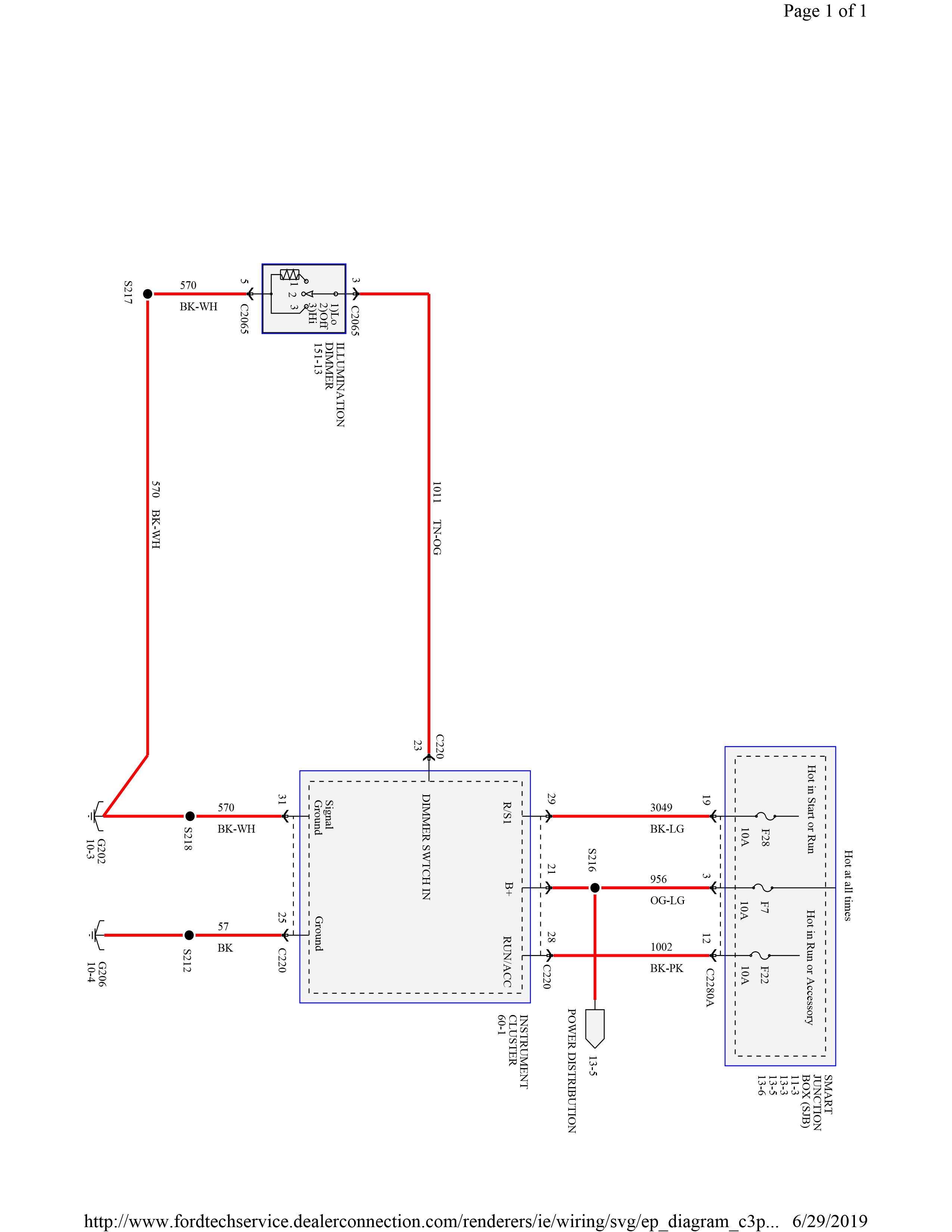

Cluster-panel illumination (1)

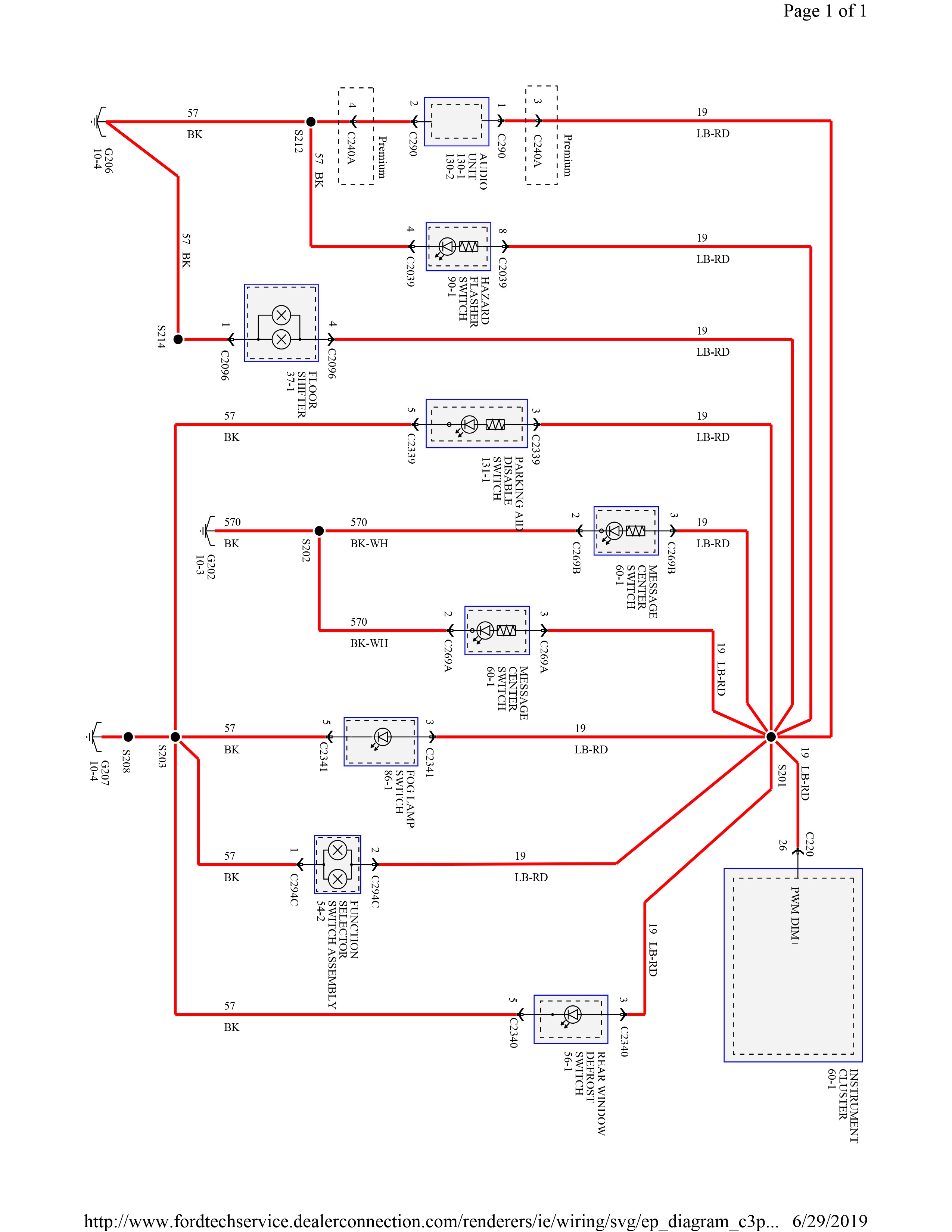

Cluster-panel illumination (2)
Cooling fans (1)
Cooling fans (2)
Engine controls 3 (1)
Engine controls 3 (2)
Engine controls 3 (3)
Engine controls 3 (4)
Engine controls 3 (5)
Engine controls 3 (6)
Engine controls 3 (7)
Fog lamps-1

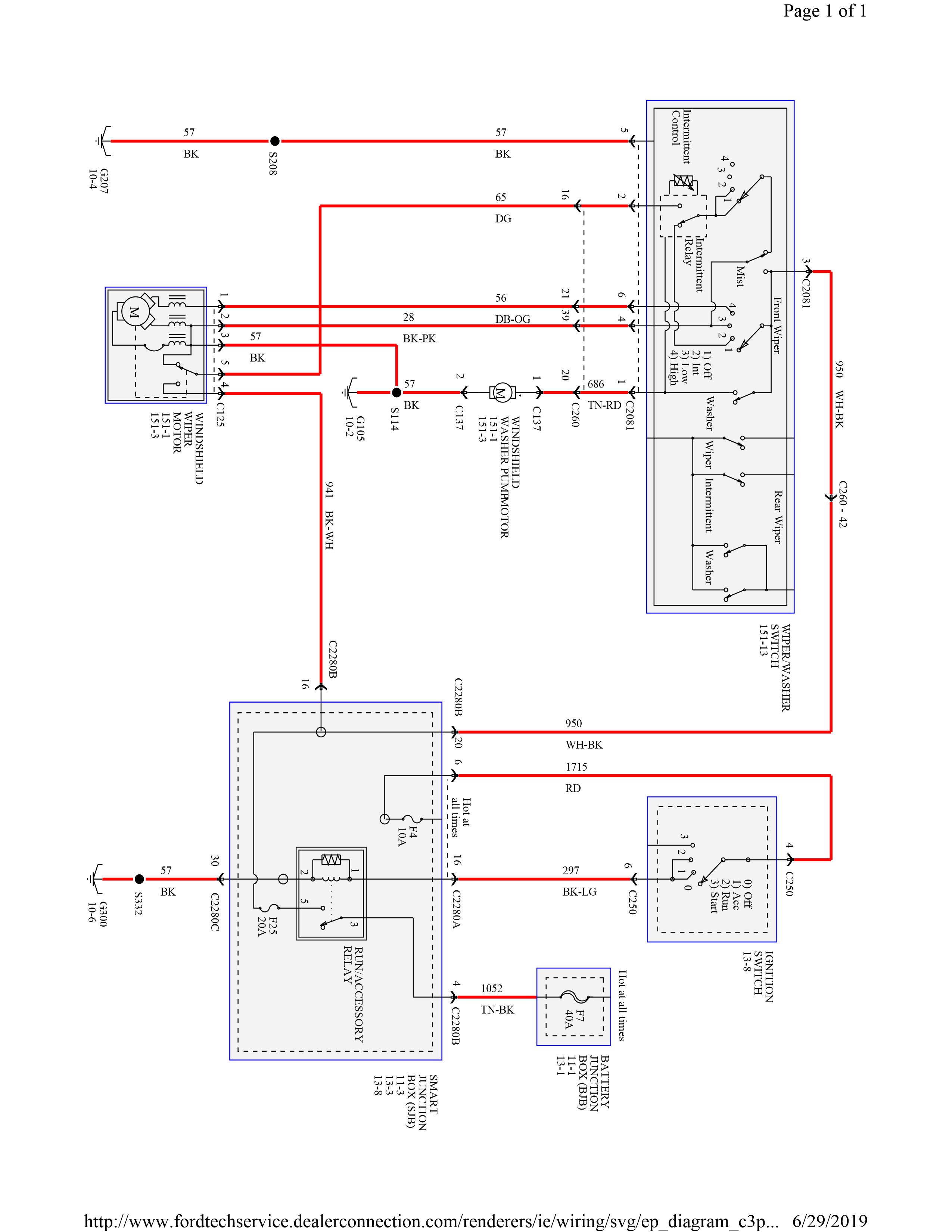

Front wipers
Grounds (1)
Grounds (2)
Grounds (3)

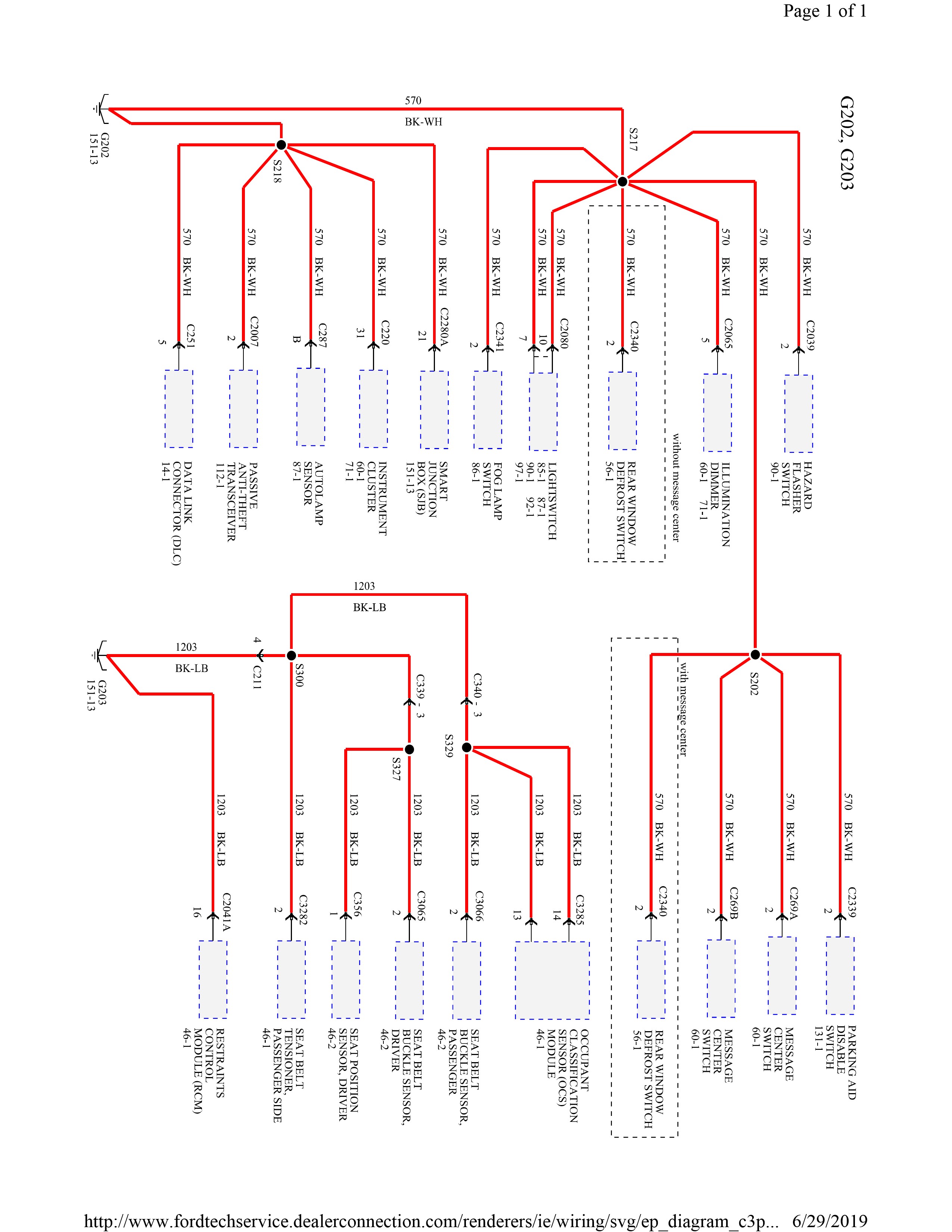

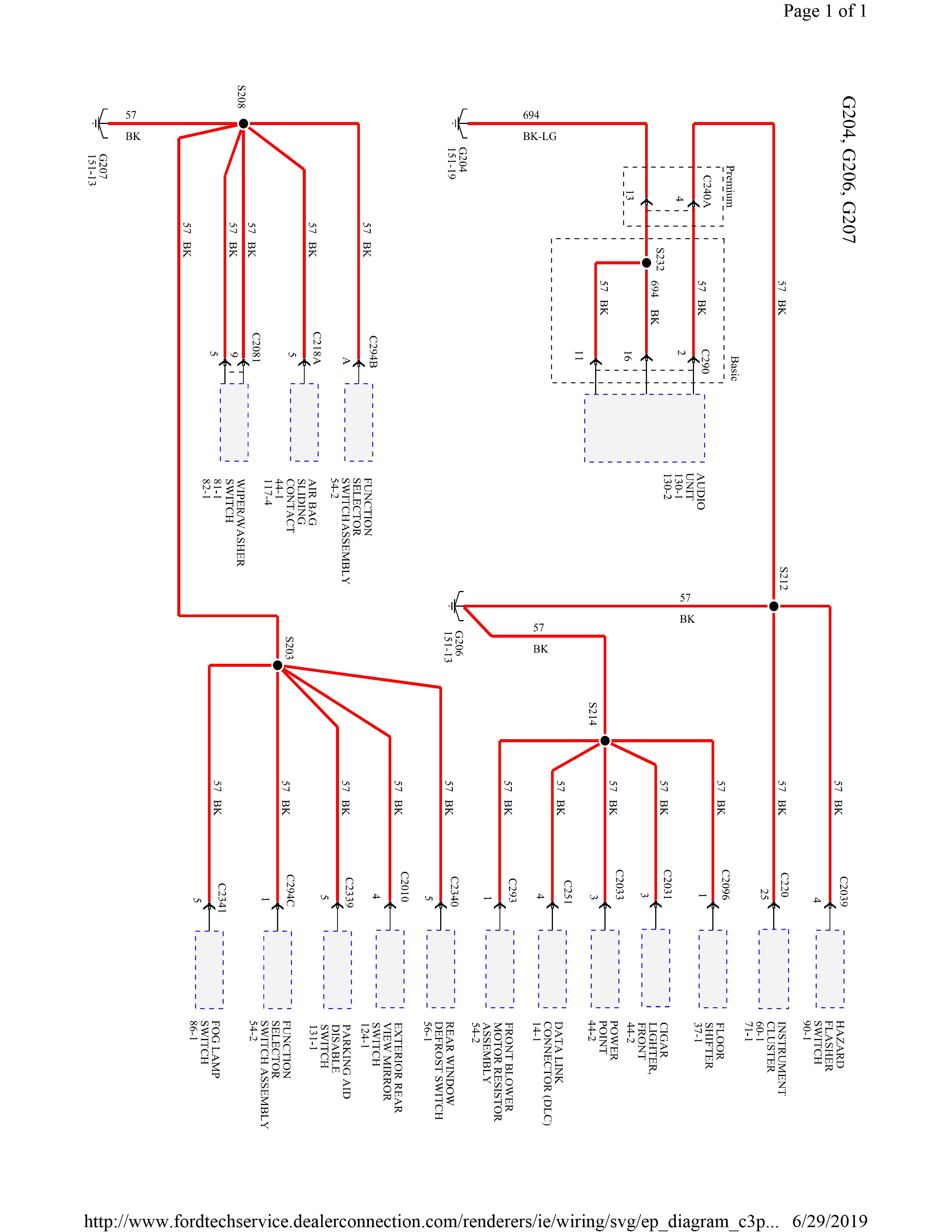

Grounds (4)
Grounds (5)
Grounds (6)

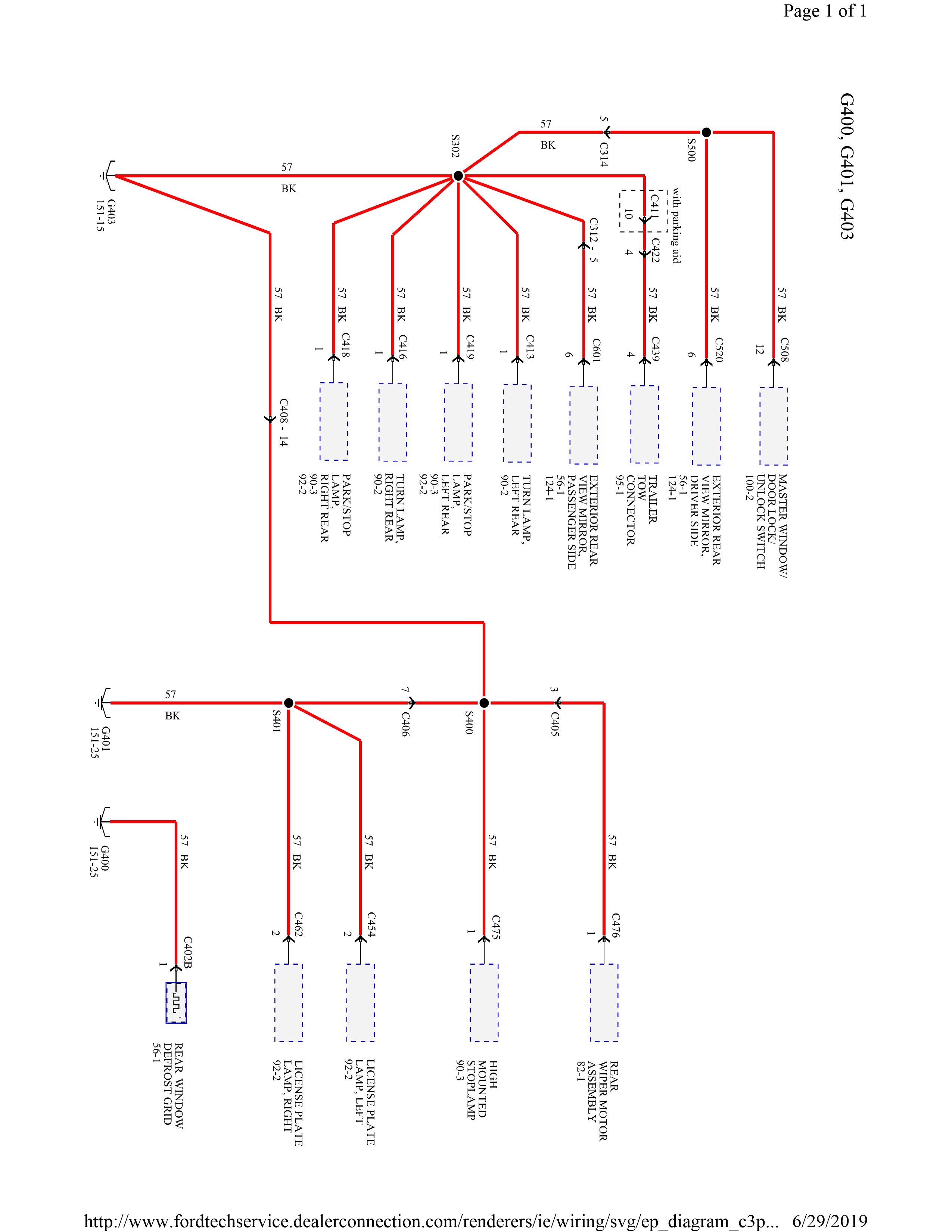

Grounds (7)
Grounds (8)
Headlamps (1)
Headlamps (2)
Headlamps (3)
Horn-1
Instrument cluster (1)
Instrument cluster (2)
Lighting (1)
Lighting (2)
Lighting (3)
Manual climate control (1)
Manual climate control (2)
Manual climate control (3)
Module communication (1)

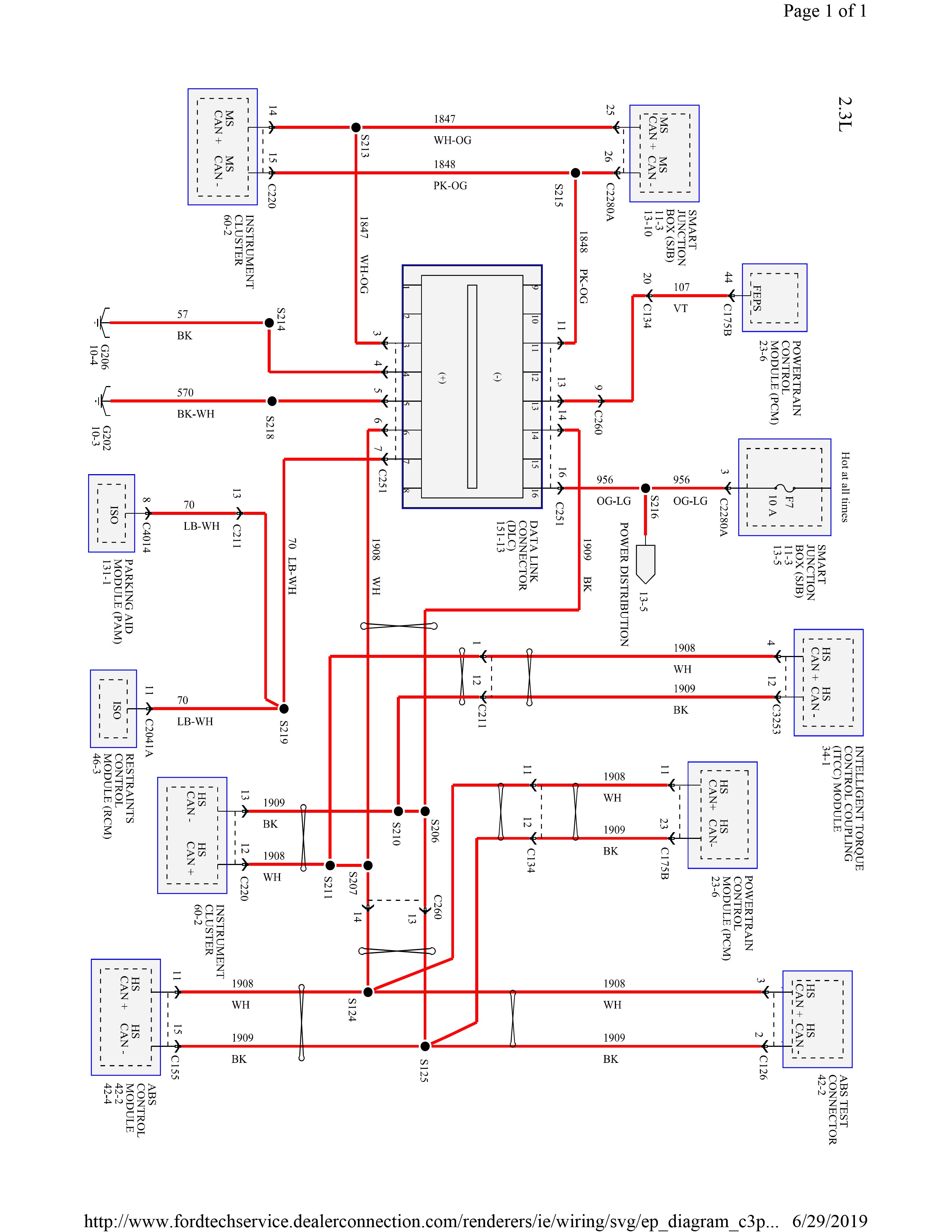

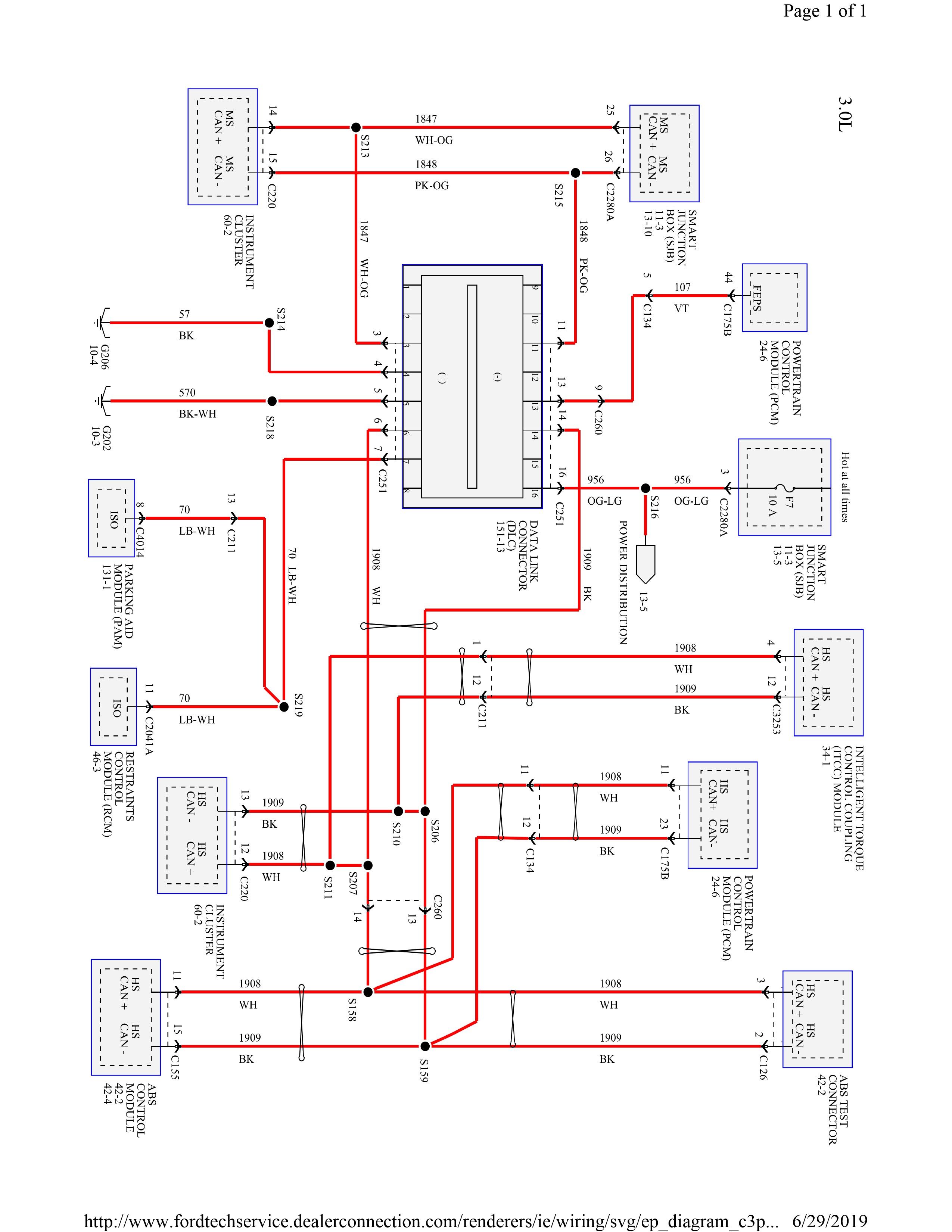

Module communication (2)
Multifunction control module (1)
Multifunction control module (2)
Multifunction control module (3)
Multifunction control module (4)
Multifunction control module (5)
Multifunction control module (6)
Multifunction control module (7)
Multifunction control module (8)

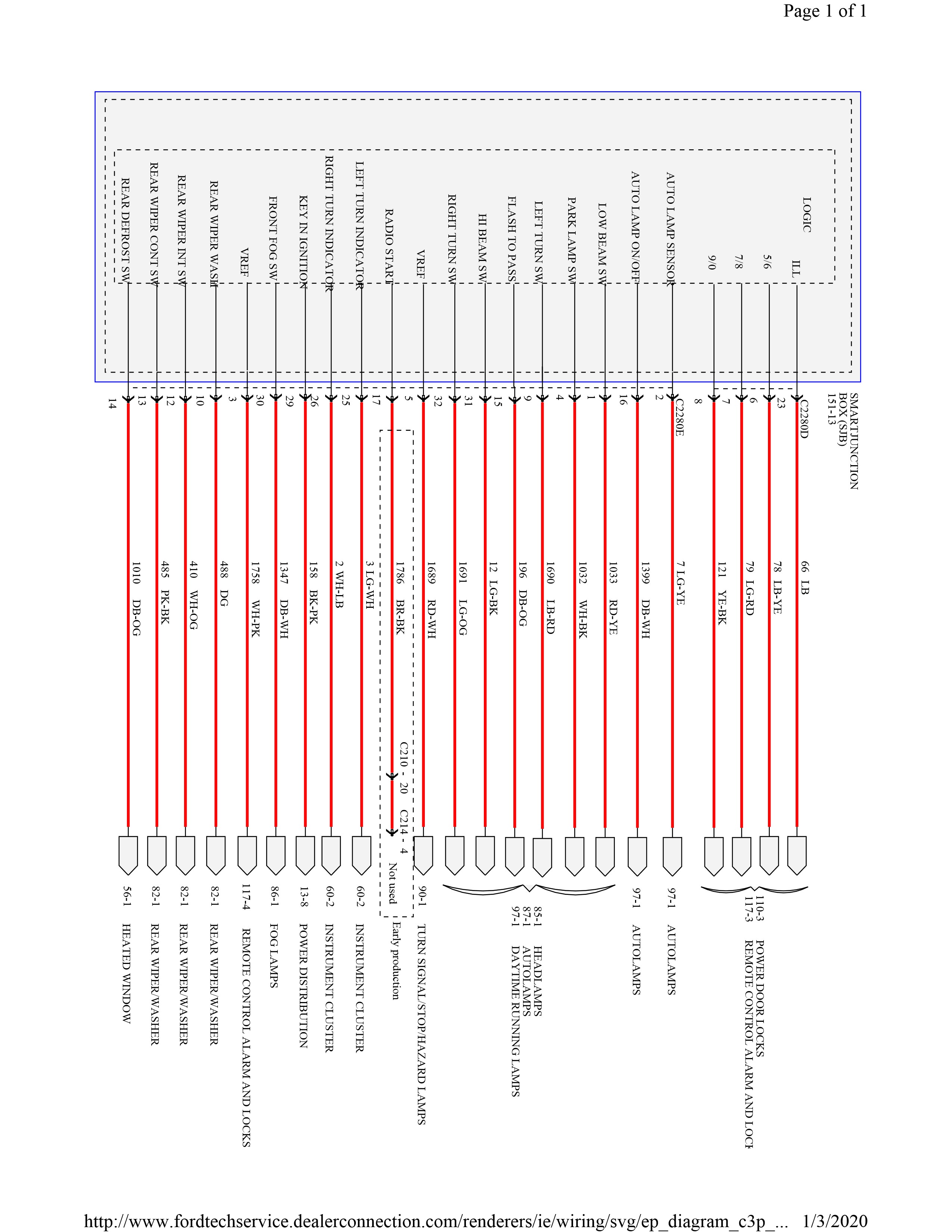

Multifunction control module (9)
Parking lamps-1

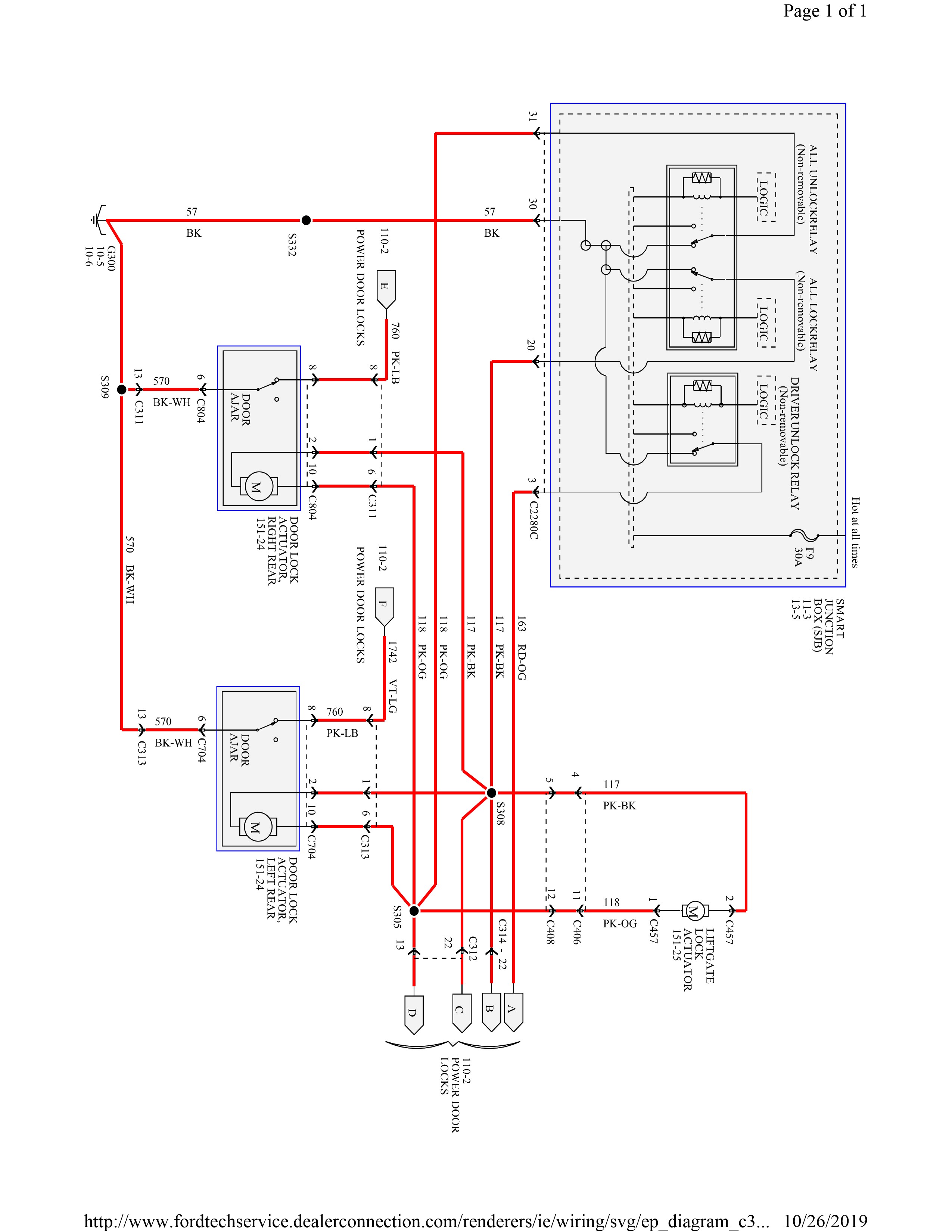

Power door locks (1)
Power door locks (2)
Power door locks (3)
Radio (1)
Radio (2)
Radio (3)
Rear wipers

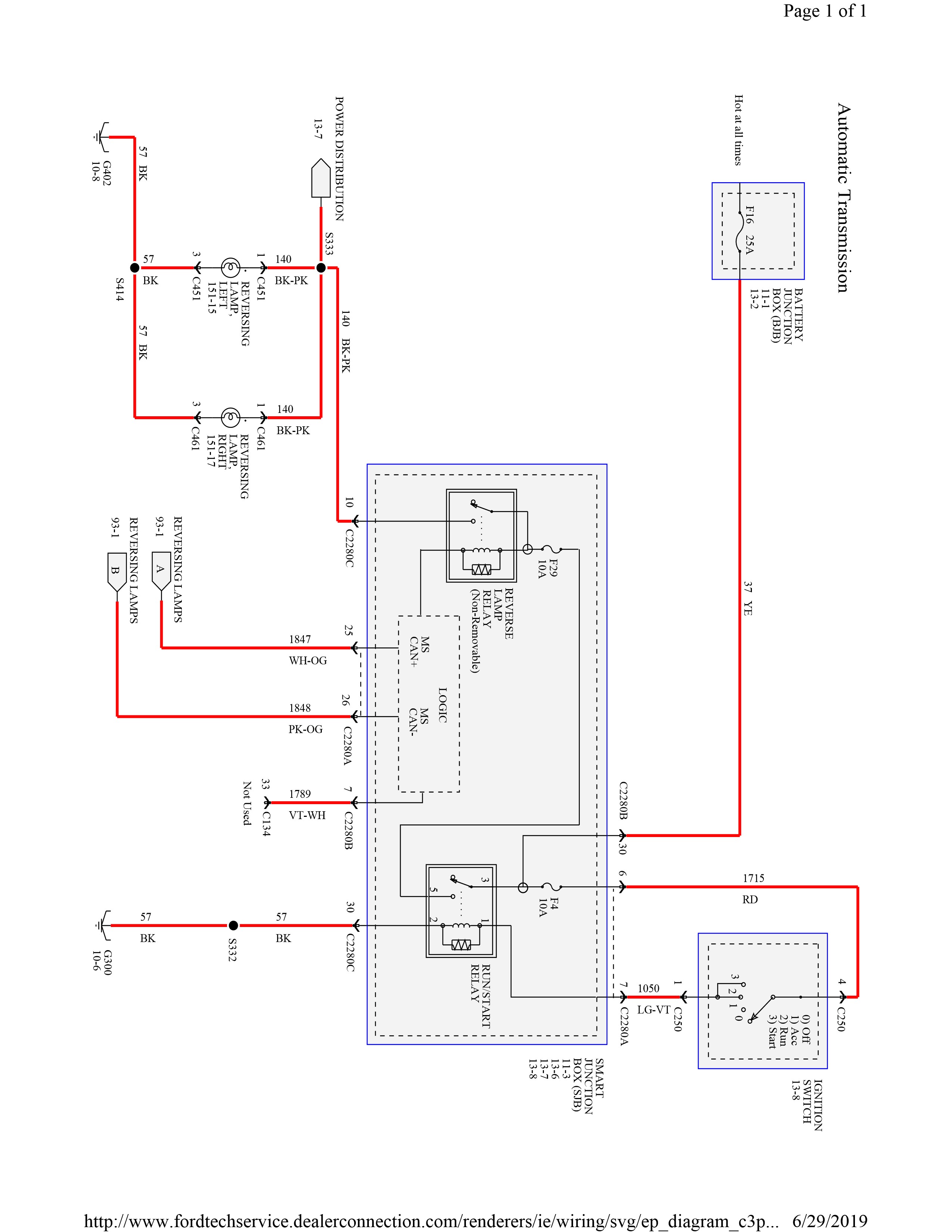

Reversing lamps 2-1
Reversing lamps-1
Speed control (1)
Speed control (2)
Speed control (3)
Stop lamps-1
Supplemental restrainy system (1)
Supplemental restrainy system (2)
Supplemental restrainy system (3)

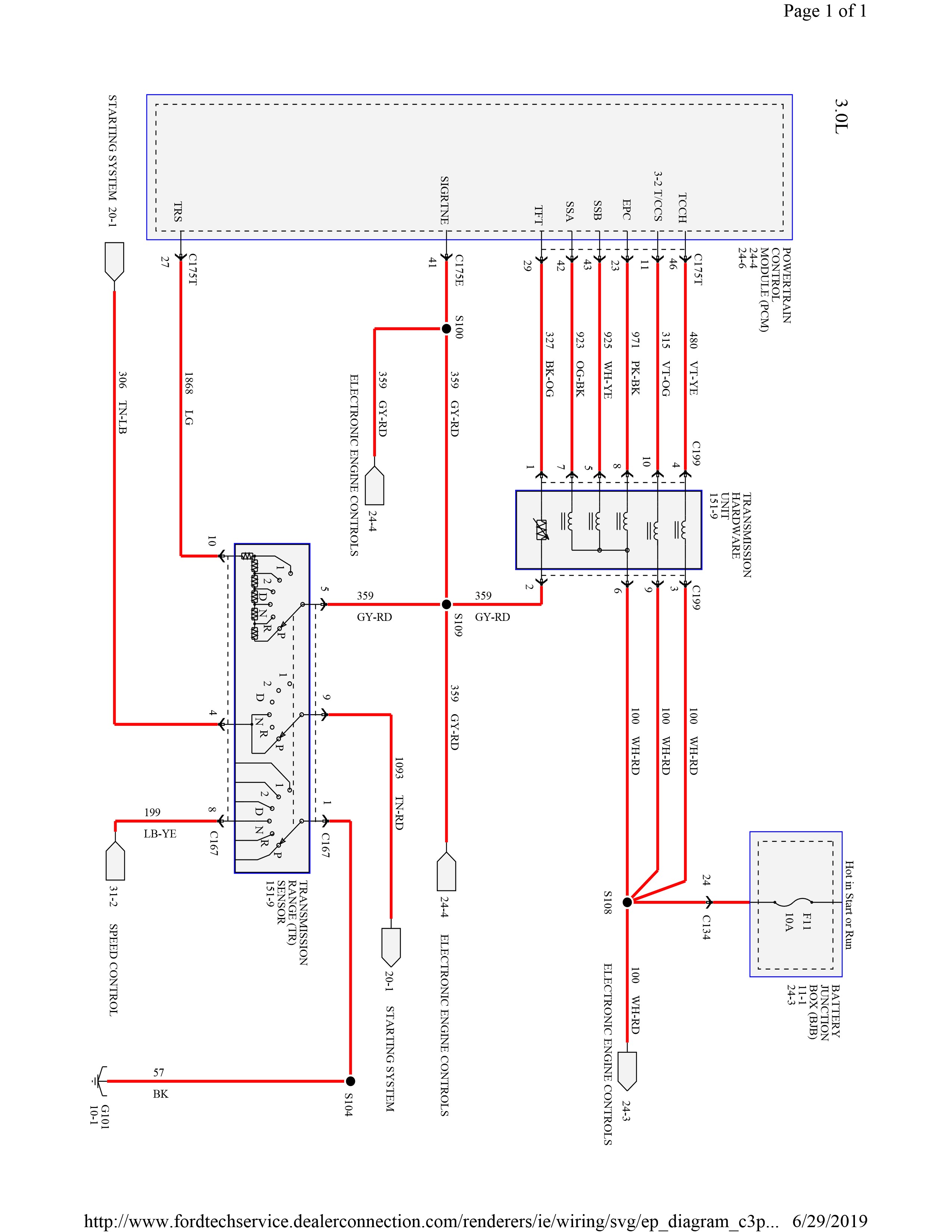

Transmission controls (1)
Transmission controls (2)
Transmission controls (3)
Transmission controls (4)

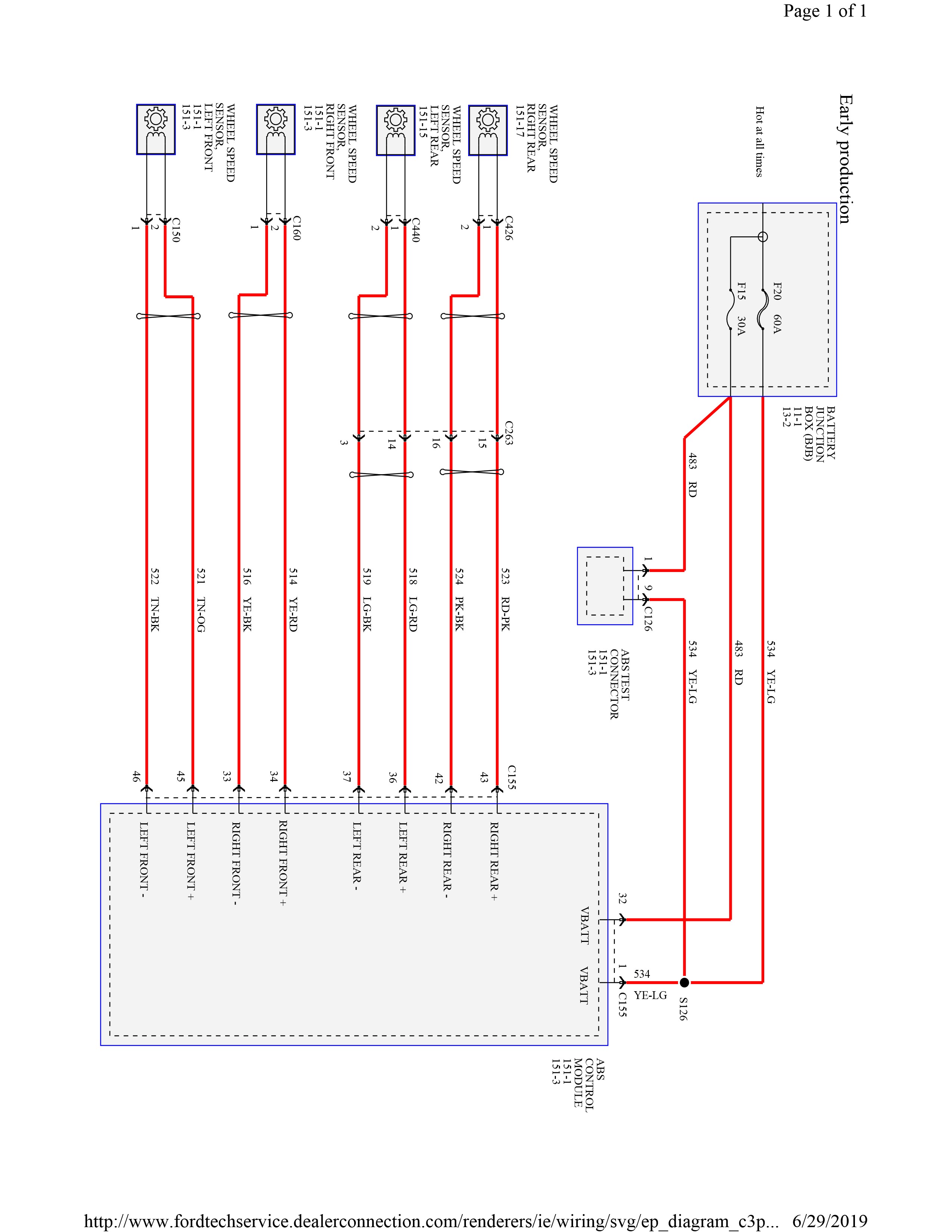

Vehicle dynamic systems (1)

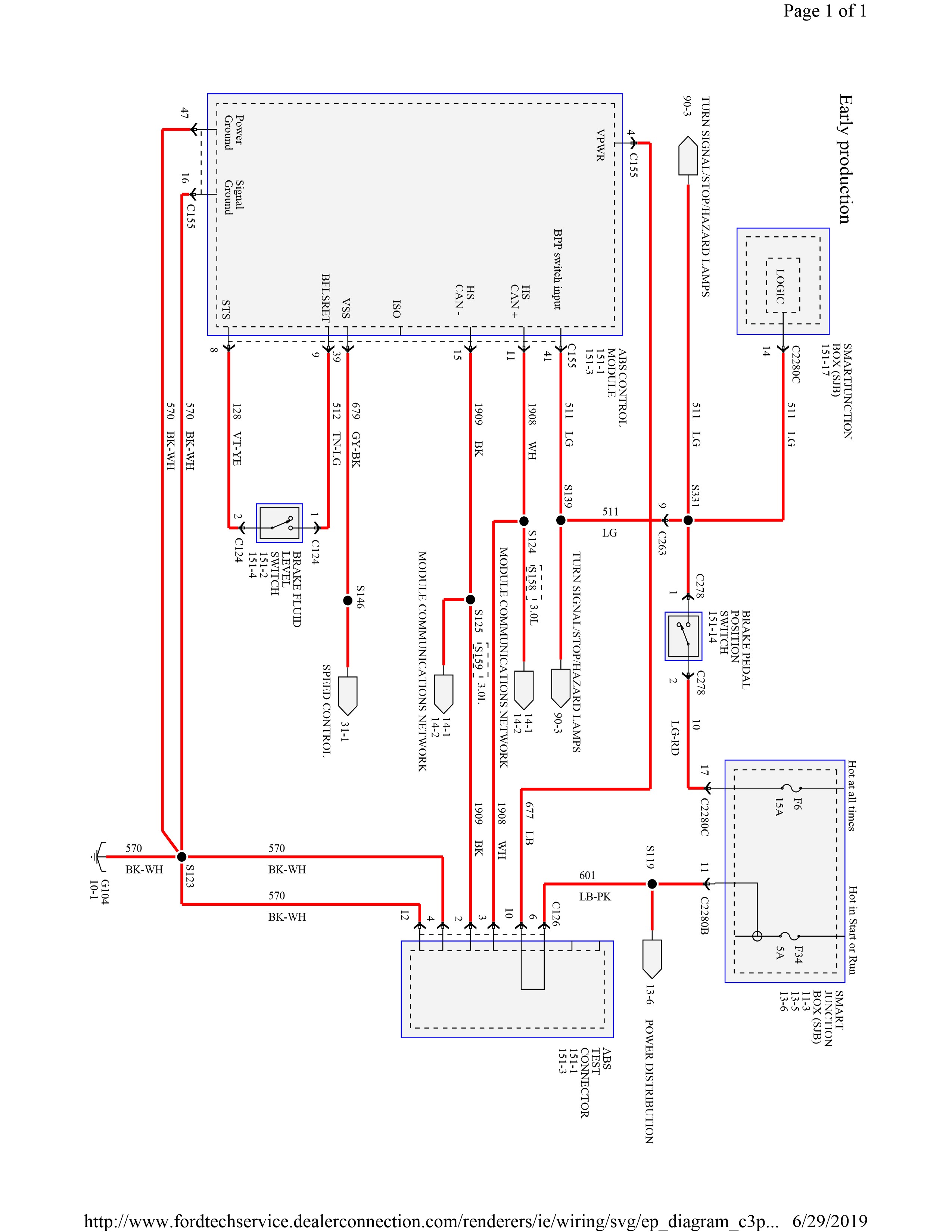

Vehicle dynamic systems (2)

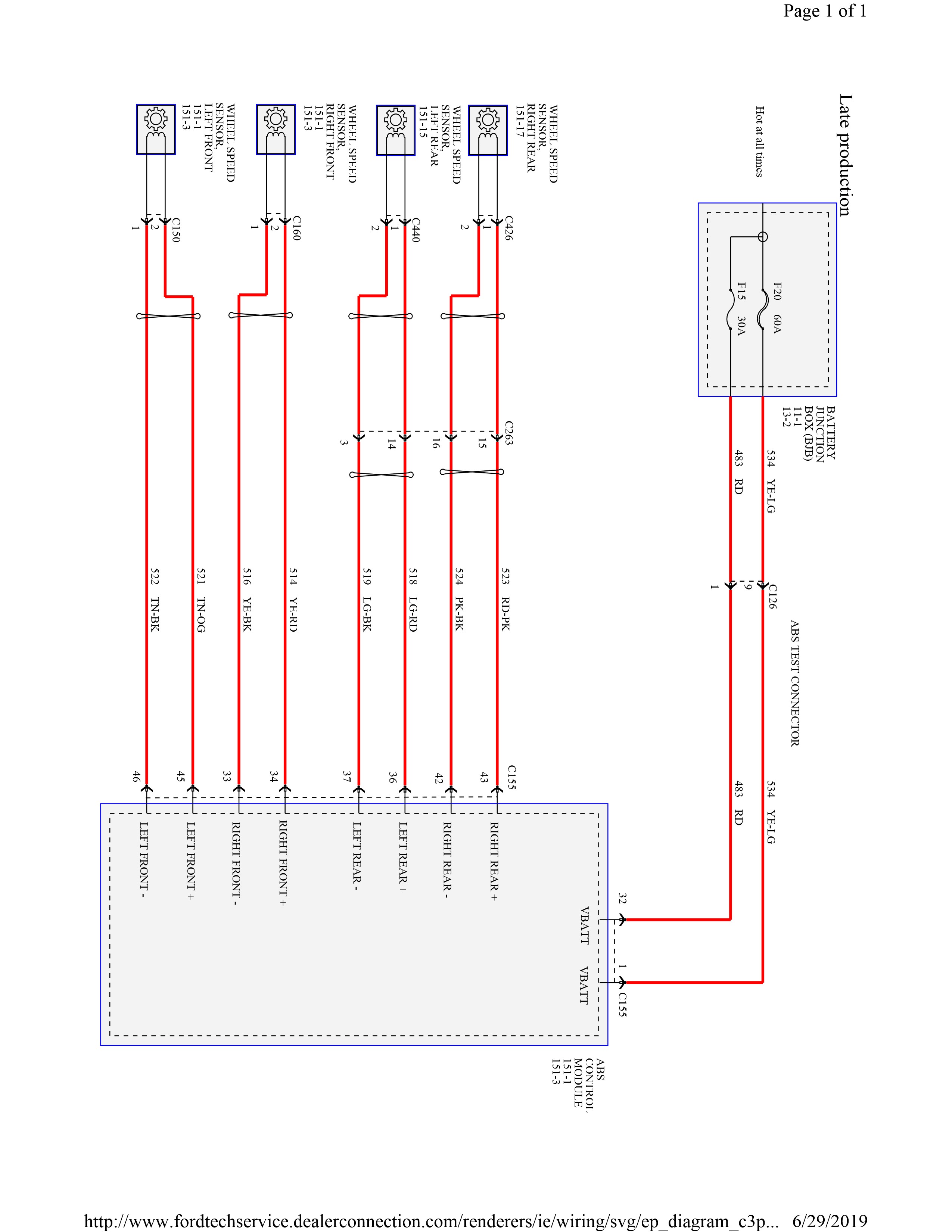

Vehicle dynamic systems (3)
Vehicle dynamic systems (4)
”
