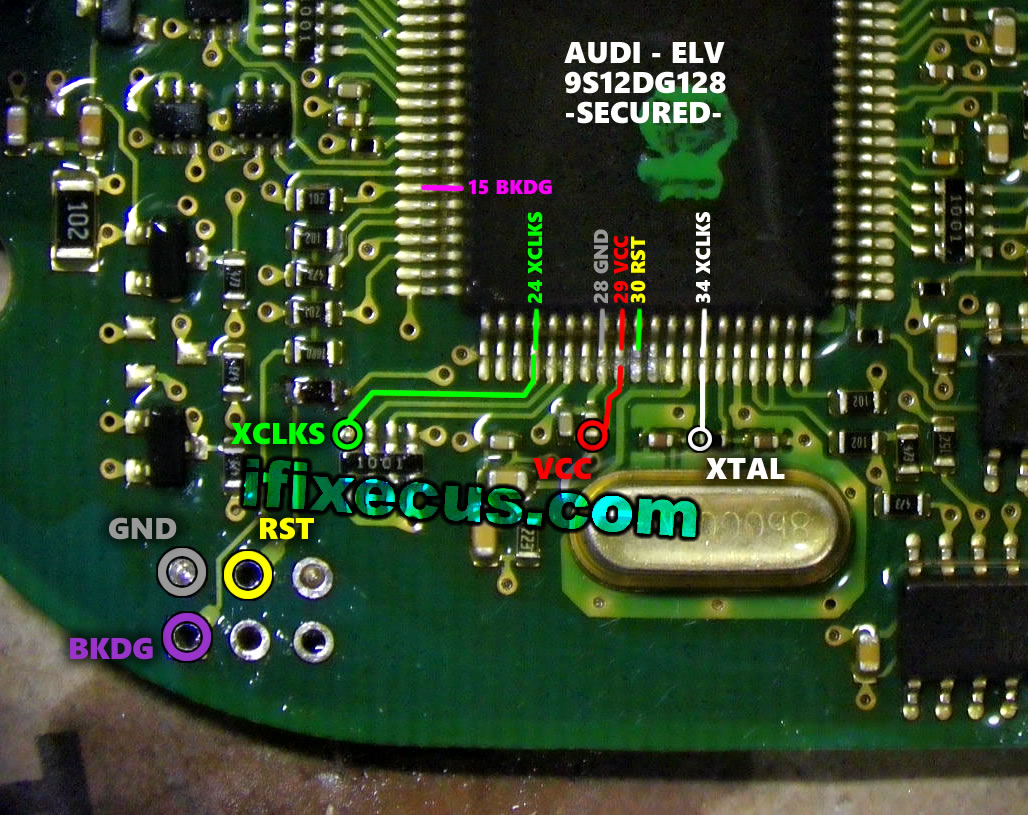

In-circuit wiring schematics for reading the 9S12DG128 (qfp80) EEPROM and flash memory in Audi A6 ELV steering lock modules. The secured chip requires a reliable programmer—my recommended tool is the original XPROG or VVDI Prog.
Pinout connections required: BKDG-15, XCLKS-24, GND-28, VCC-29, RST-30, XTAL-34
